Agilent X-Series Signal Generators User’s Guide 159
Basic Digital Operation (Option 653/655/656/657)
Saving a Waveform’s Settings & Parameters
d. Return to the Header Utilities menu:
Press Return > More > Header Utilities.

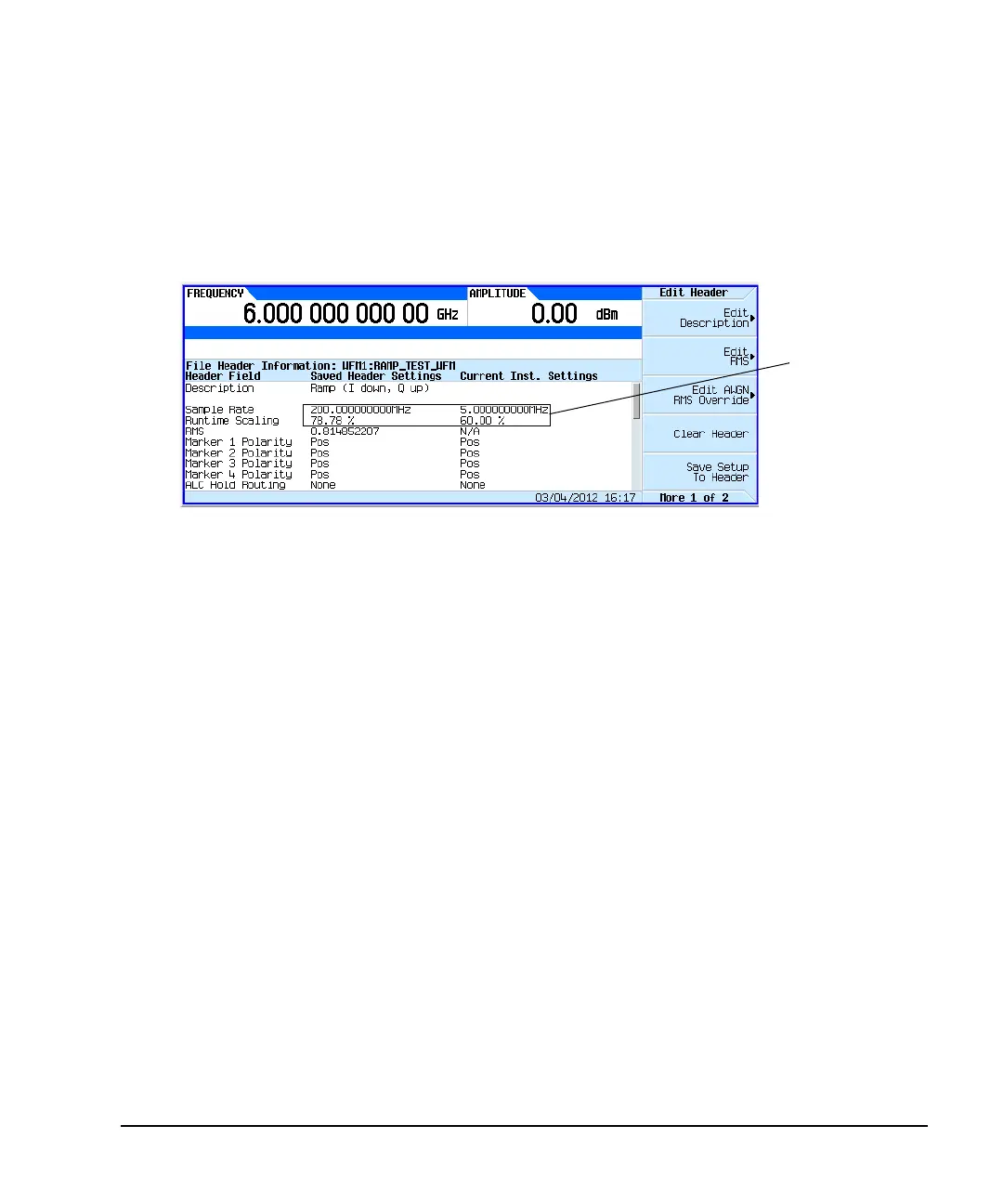

As shown in the following figure, the Current Inst. Settings column now reflects the
changes to the current signal generator setup, but the saved header values have not changed.
e. Save the current settings to the file header:
Press the Save Setup To Header softkey.
The settings from the Current Inst. Settings column now appear in the Saved Header
Settings column. This saves the new current instrument settings to the file header.
If you change any of the signal generator settings listed in the file header after you select the
waveform file, the changed setting(s) appear in the file header’s Current Inst. Settings column
and are used instead of the saved header settings. To reapply the saved header settings, reselect the
waveform for playback.
Viewing & Editing a Header without Selecting the Waveform
As described on page 157, you can view and edit a waveform’s header information after you select
the waveform; you can also edit waveform header information without selecting a waveform, or for
another waveform than the one that is currently selected.
1. Access the file header utilities menu:
Press Mode > Dual ARB > More > Header Utilities > More > Select Different Header.
The signal generator displays an alphabetical list of the waveform files in the media that was last
selected. The following figure shows an example of the factory–supplied waveforms in BBG media.
Values differ between
the two columns
