160 Agilent X-Series Signal Generators User’s Guide
Basic Digital Operation (Option 653/655/656/657)
Saving a Waveform’s Settings & Parameters
2. If the desired catalog is not displayed, select it.
3. Highlight the desired waveform file and press Select Header.
The signal generator displays the file header for the selected waveform file.
4. To edit the header, press More, and proceed as described in Step 4 on page 158 (Viewing and
Modifying Header Information section).

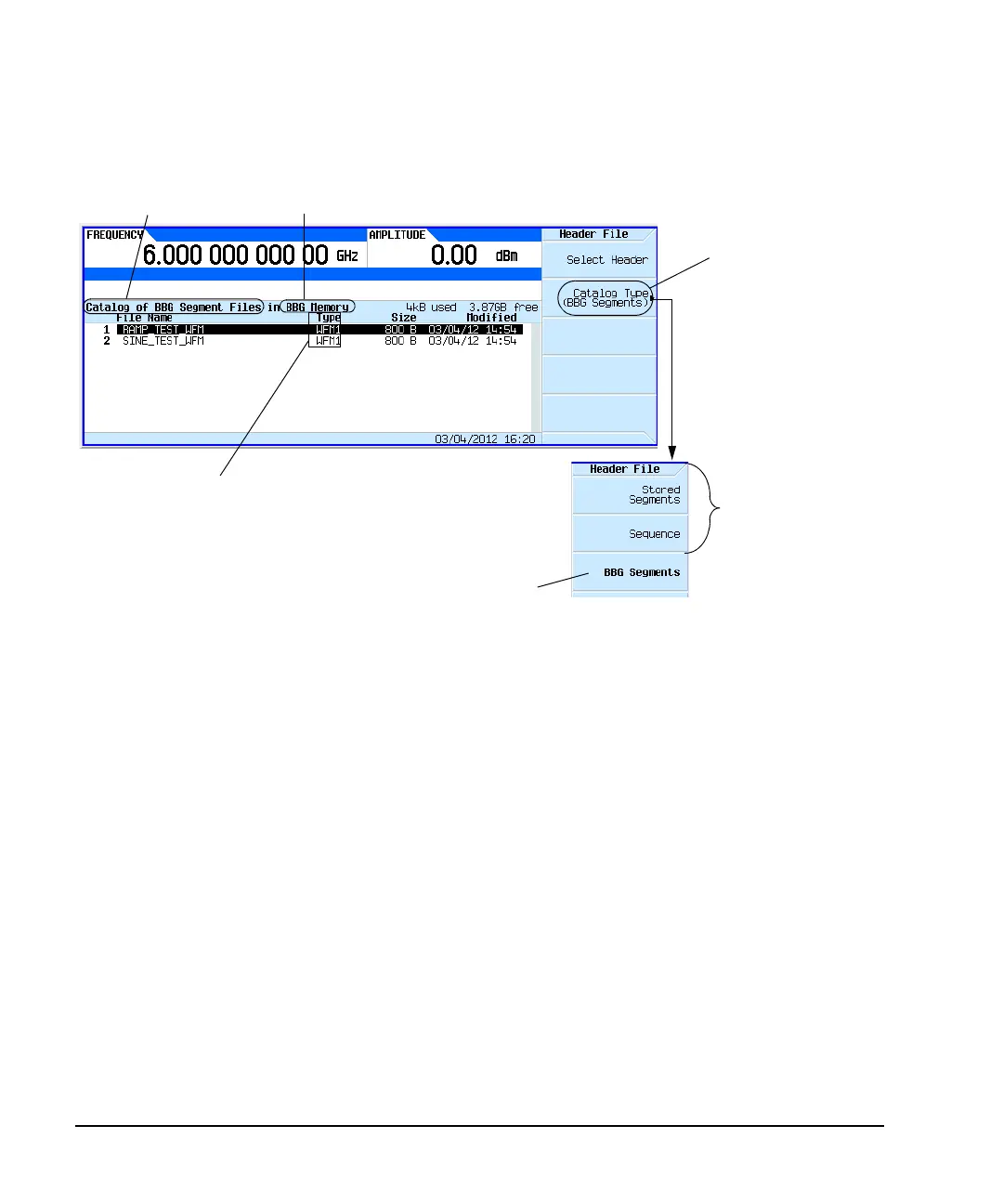

Active waveform catalog
Active media
Type:
WFM1 = Volatile Segment
NVWFM = Non–Volatile Segment
SEQ = Sequence
Active catalog
For details on each key, use key help
as described on page 44.
Catalogs that enable you to
view files in the active media.
For details on selecting the
active media, see page 63.
Files in BBG media
