194 Agilent X-Series Signal Generators User’s Guide
Basic Digital Operation (Option 653/655/656/657)
Scaling a Waveform
Scaling a Waveform
The signal generator uses an interpolation algorithm (sampling between the I/Q data points) when
reconstructing a waveform. For common waveforms, this interpolation can cause overshoots, which
may create a DAC over–range error condition. This chapter describes how DAC over–range errors
occur and how you can use waveform scaling to eliminate these errors.
• How DAC Over–Range Errors Occur on page 195
• How Scaling Eliminates DAC Over–Range Errors on page 196
• Agilent MXG/EXG waveform scaling on page 197 and page 198:
— Waveform runtime scaling to scale a currently–playing waveform
— Waveform scaling to permanently scale either the currently playing waveform, or a
non–playing waveform file in BBG media

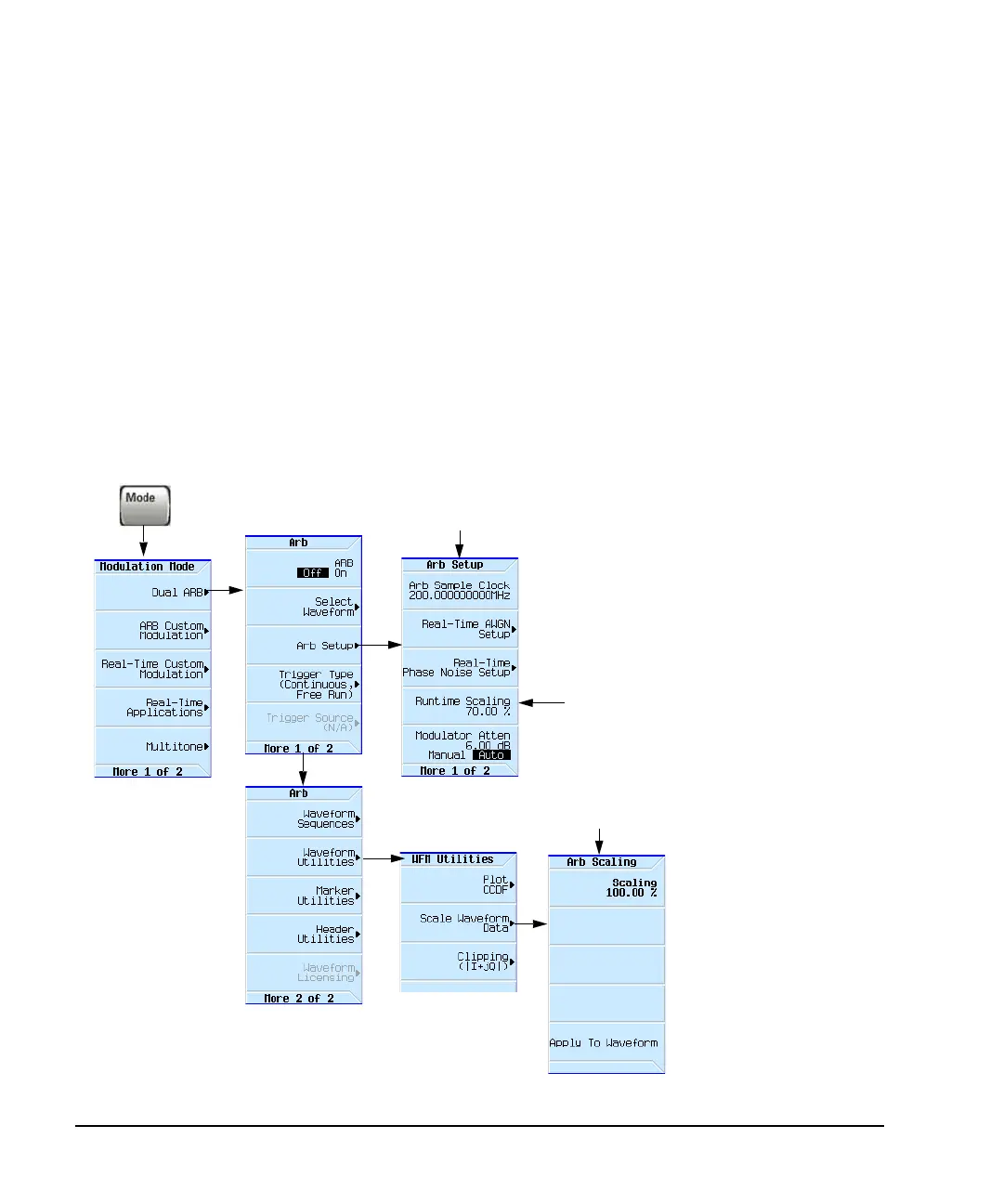

Figure 8-12 Scaling Softkeys
For details on each key, use key help
as described on page 44.
The settings in this menu
can be stored to the file
header, see page 155.
Waveform Runtime Scaling, see page 197.
Waveform Scaling, see page 198.
To Next Page
