Agilent X-Series Signal Generators User’s Guide 65
Basic Operation
Working with Files
Storing a File
Several menus enable you to store instrument parameters. For example, you can store instrument
states, lists, and waveforms.
• An instrument state file contains instrument settings. For this type of file, use the Save hardkey
shown in Figure 3- 8 on page 68.

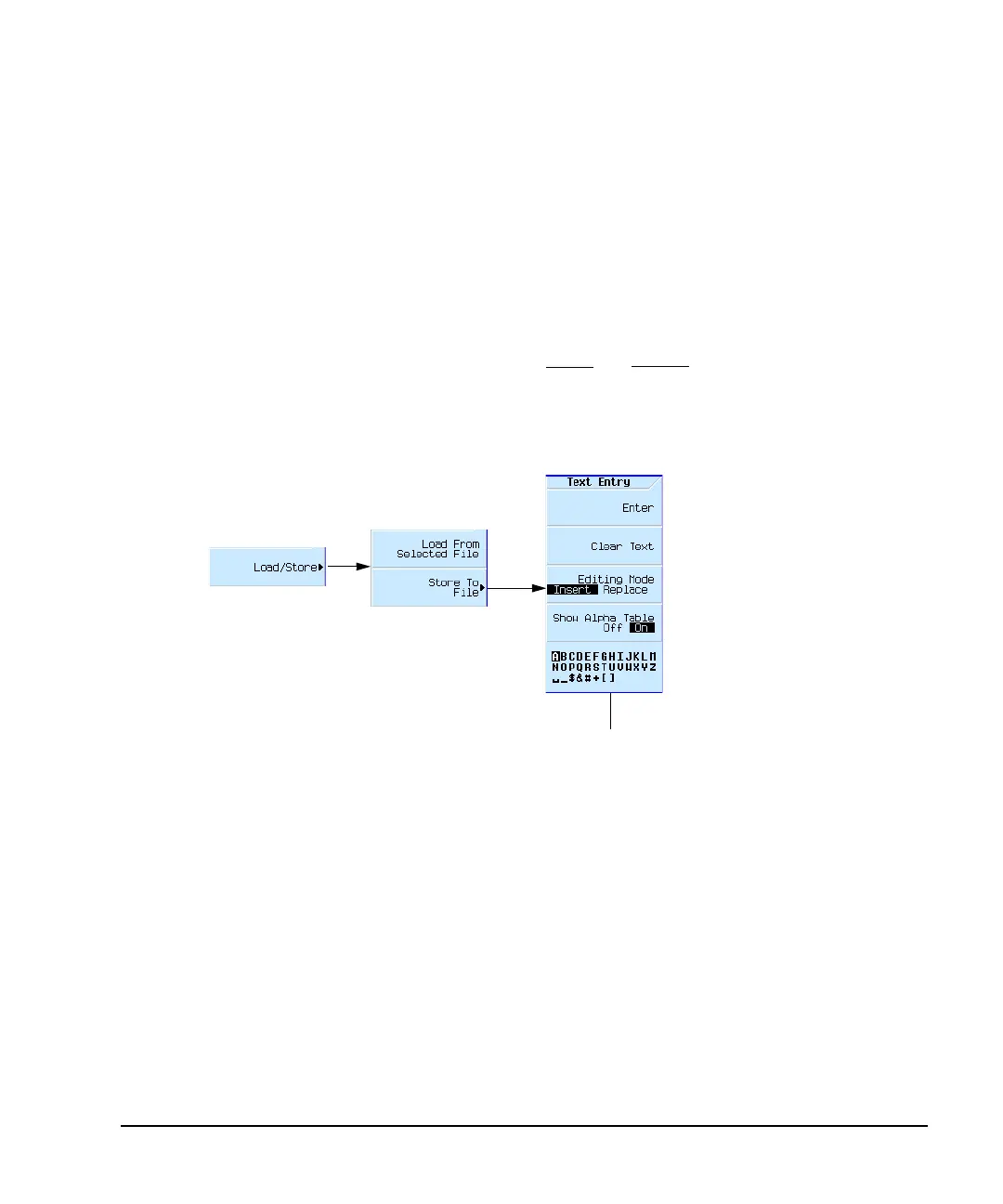

• For other types of data, use the Load/Store softkey (shown below) that is available through the
menu used to create the file.
Use this menu to enter the file name,
as described on page 45.
For details on each key, use key help as described on page 44.
File Type
List
State
Waveform
User Flatness
User Preset
Pulse Train
Save From
Sweep menu
Save menu
Mode menu
Amplitude menu
User Preset menu
Pulse Train menu
File Length (including extension)
Internal Media: 25 characters
USB Media: 39 characters
