320 Agilent X-Series Signal Generators User’s Guide

Custom Digital Modulation (Option 431)

Custom Modulation

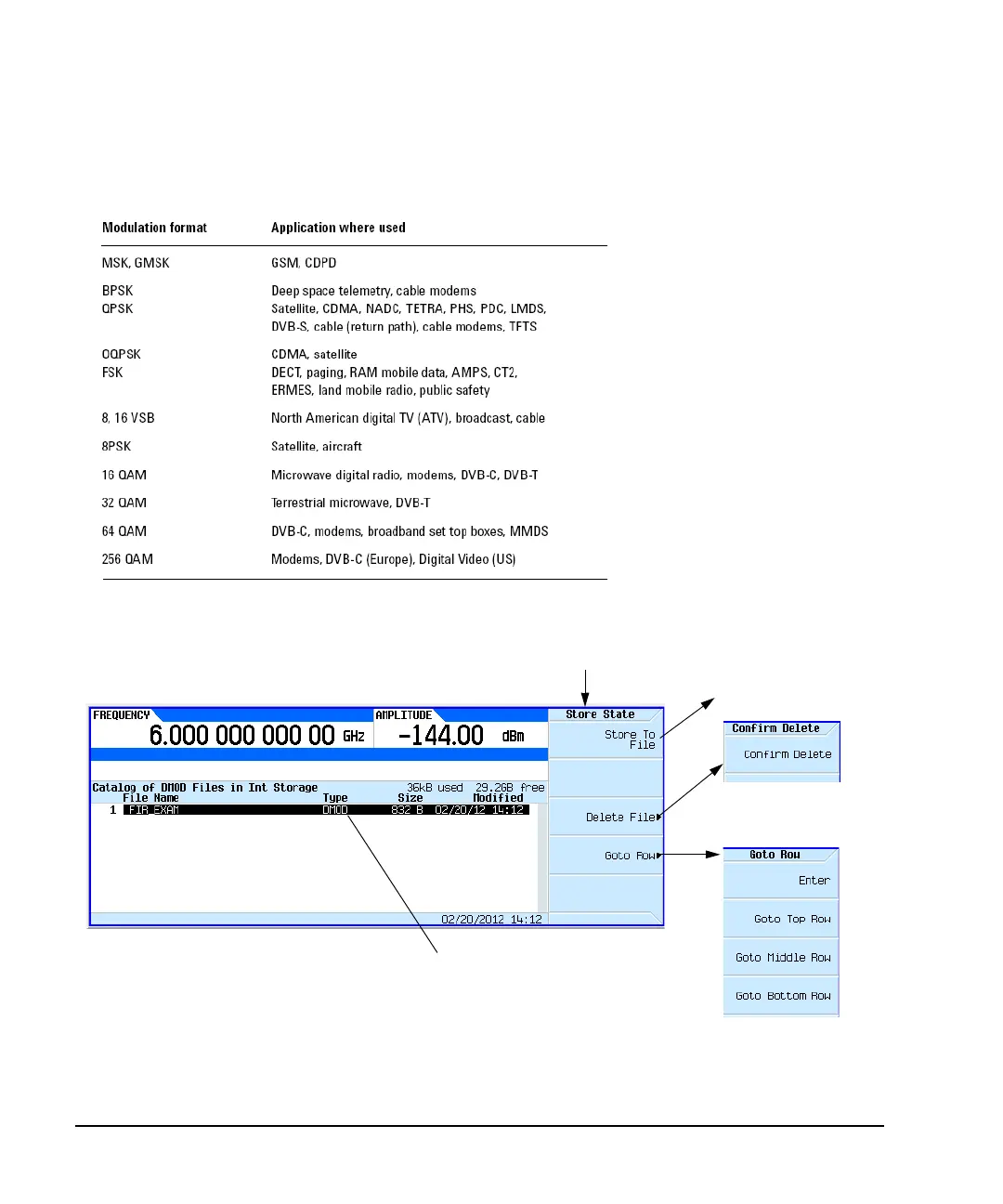

Figure 13-4 Custom Modulation Formats and Applications

Figure 13-5 Store Custom Dig Mod State Softkeys

Catalog displays digital

modulation (DMOD) files that

have been previously saved.

page 342

Mode > ARB Custom Modulation > Single Carrier Setup > Store Custom Dig Mod State

For details on each key, use key help as described on page 44.
