36 Agilent X-Series Signal Generators User’s Guide

Setting Preferences & Enabling Options

Remote Operation Preferences

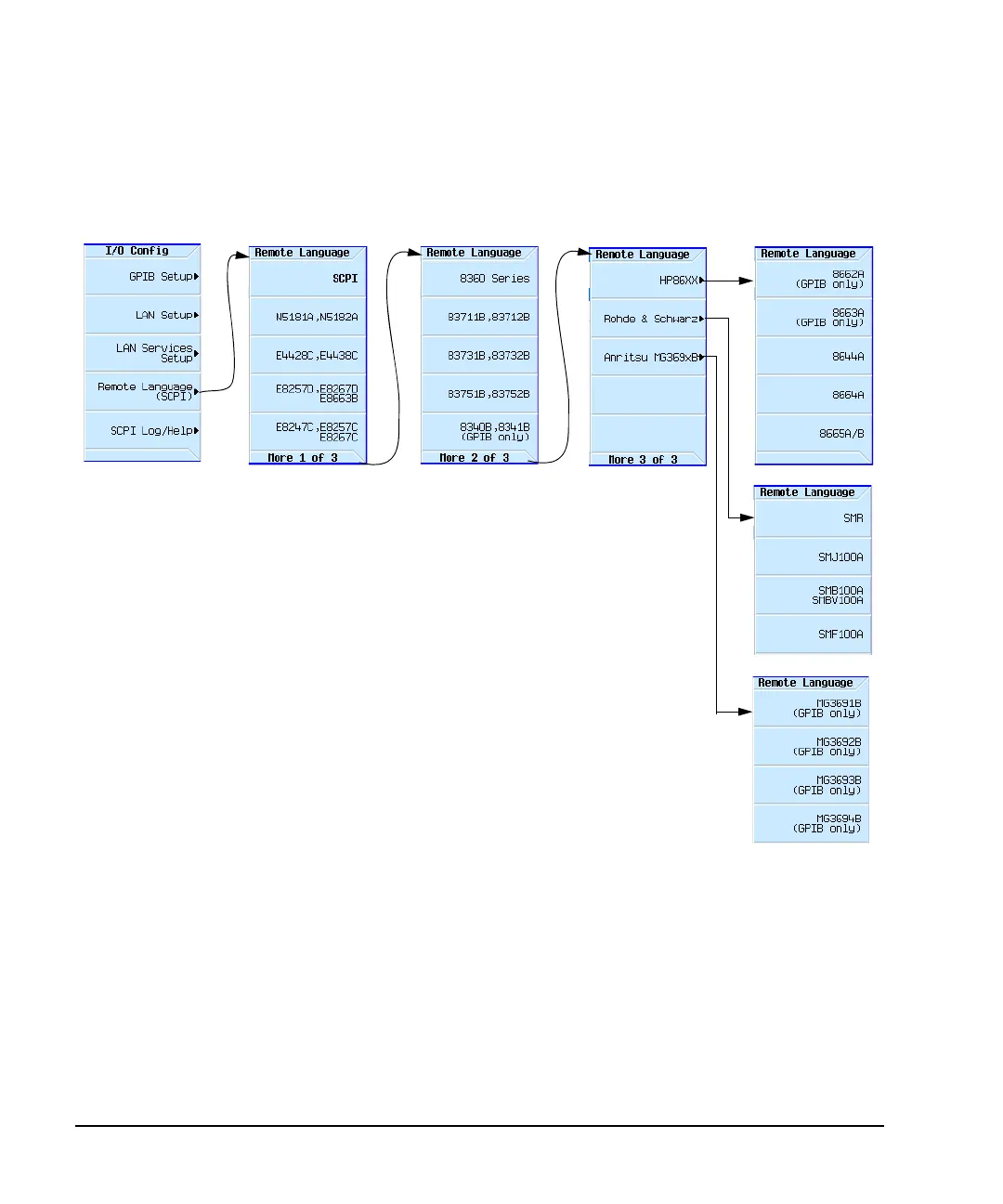

Figure 2-2 N5173B/83B

Utility > I/O Config

For details on each key, use key help as described on page 44.

Select the desired Remote language.

Refer to the SCPI Command Reference.
