38 Agilent X-Series Signal Generators User’s Guide

Setting Preferences & Enabling Options

Remote Operation Preferences

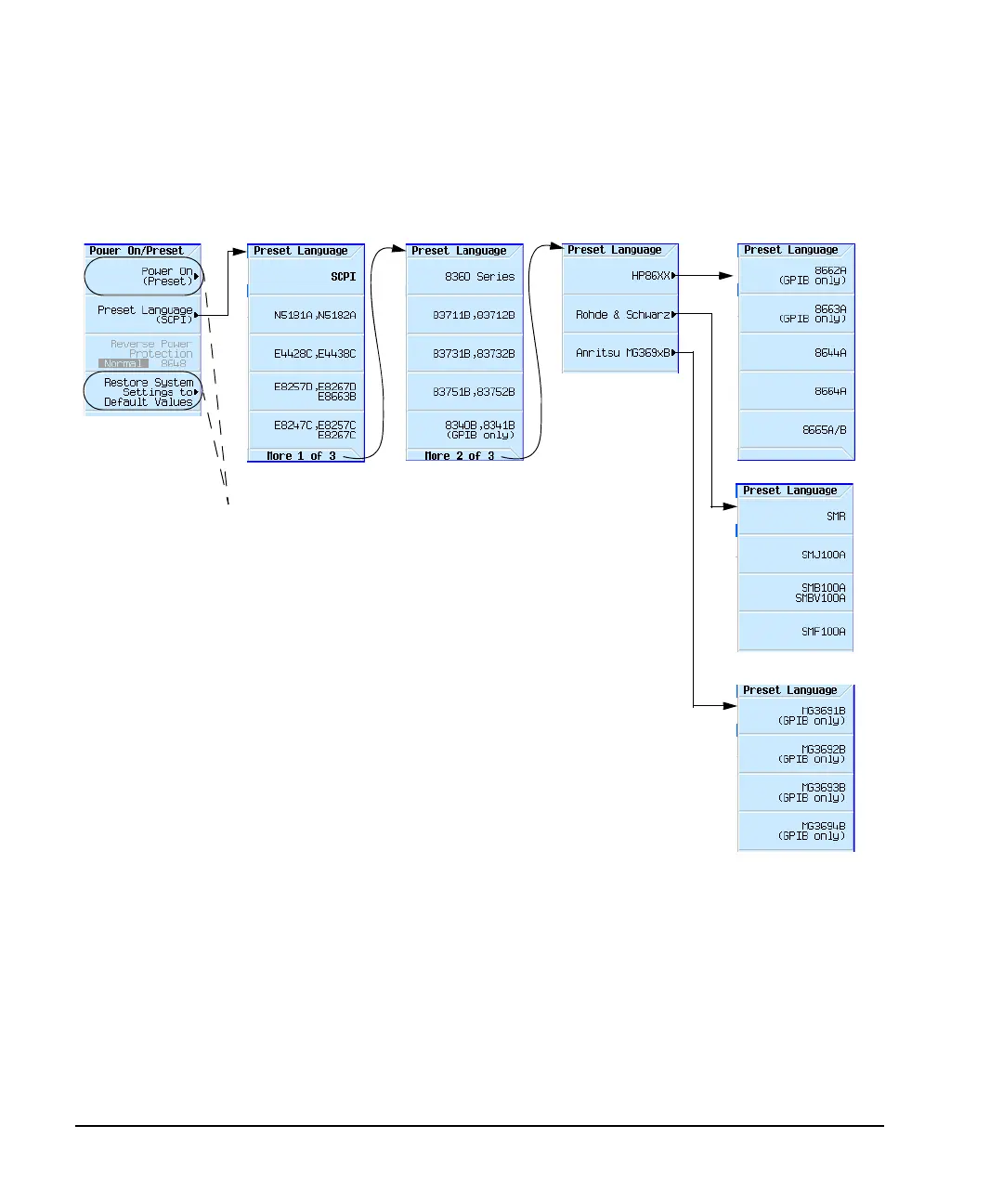

Figure 2-4 N5173B/83B

Utility > Power On/Preset

For details on each key, use key help as described on page 44.

Select the desired Remote language.

page 29

Refer to the SCPI Command Reference.
