270 Agilent X-Series Signal Generators User’s Guide
Digital Signal Interface Module (Option 003/004)
Operating the N5102A Module in Output Mode
Press N5102A Interface to access the UI (first-level softkey menu shown in Figure 10- 10) that is used
to configure the digital signal interface module. Notice the graphic in the signal generator display,
showing a setup where the N5102A module is generating its own internal clock signal. This graphic
changes to reflect the current clock source selection.

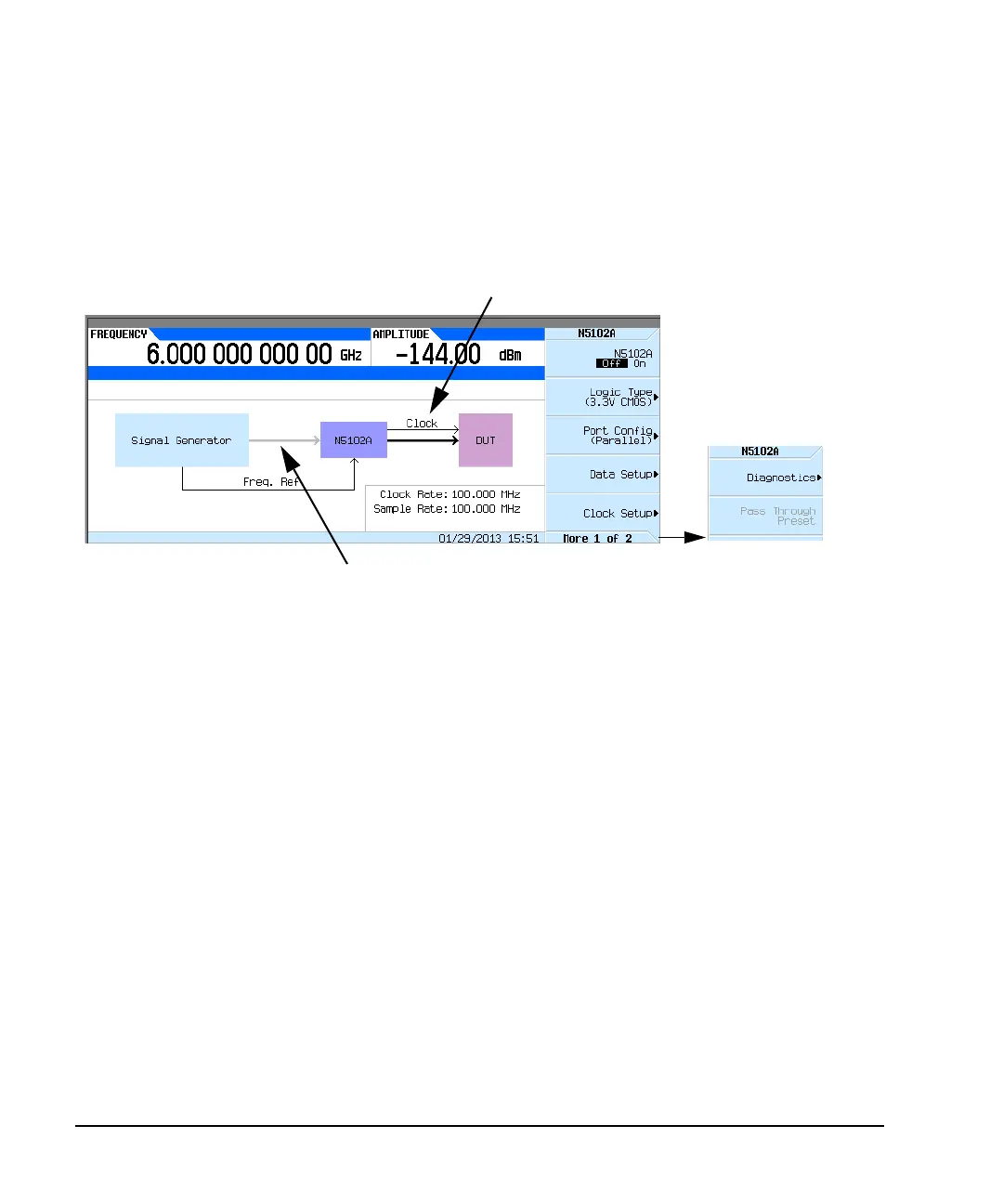

Figure 10-10N5102A Interface Menu
Line is grayed out until the N5102A module interface is turned on
Internal clock going to the DUT
To Next Page
