Using Pulse Modulation (Option UNW or 320)
Pulse Characteristics

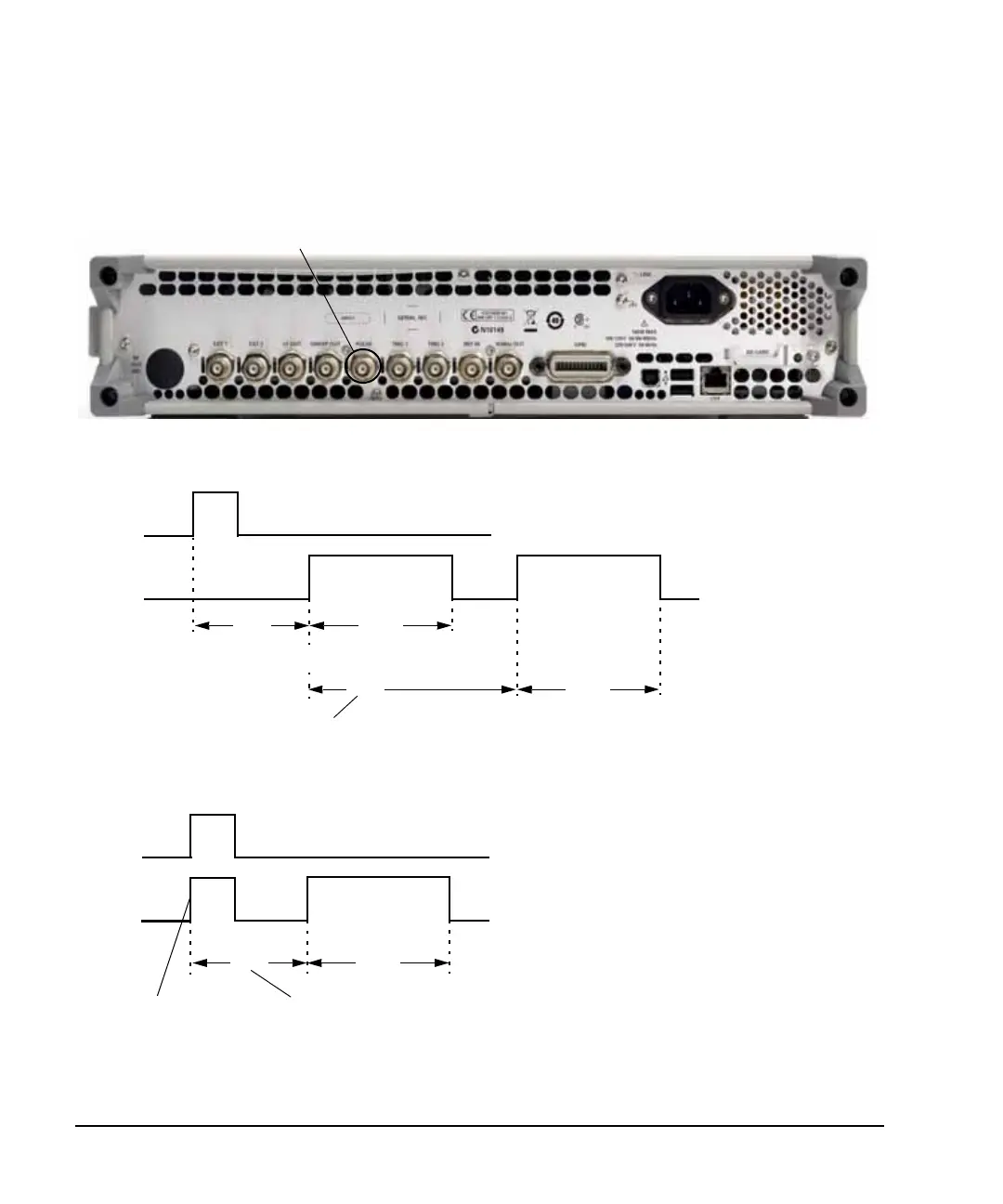

Figure 6-2 Adjustable Doublet
Figure 6-3 Trigger Doublet
Rear panel inputs are described on page 13
External pulse input
The delay of the first pulse is measured from
the leading edge of the external trigger signal.
Delay
Width
RF Output
External
Trigger
The delay of the second pulse is measured from
the leading edge of the first pulse.
Delay
Width
Pulse 2
Pulse 2
Pulse 1
Pulse 1
The delay of the second pulse is measured from
the leading edge of the external trigger signal.
Delay
Width
RF Output
External
Trigger
The first pulse follows the
external trigger signal.
Pulse 1 Pulse 1
