150 Agilent X-Series Signal Generators User’s Guide

Basic Digital Operation (Option 653/655/656/657)

Storing, Loading, and Playing a Waveform Segment

5. Configure the RF Output:

Set the RF carrier frequency and amplitude, and turn on the RF output.

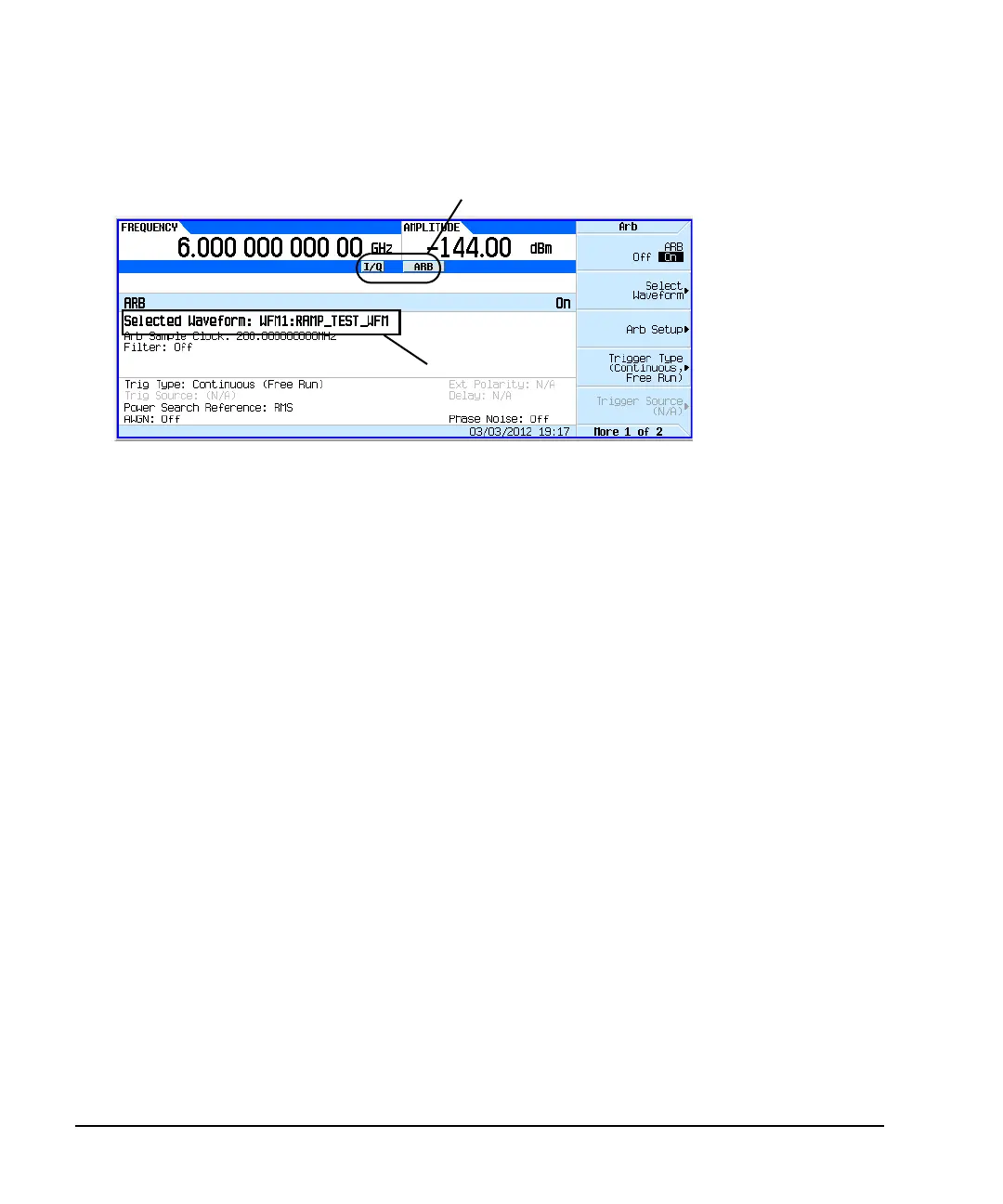

The waveform segment is now available at the signal generator’s RF Output connector.

Current waveform selection

Annunciators display with active waveform (ARB On)
