Agilent X-Series Signal Generators User’s Guide 175

Basic Digital Operation (Option 653/655/656/657)

Using Waveform Markers

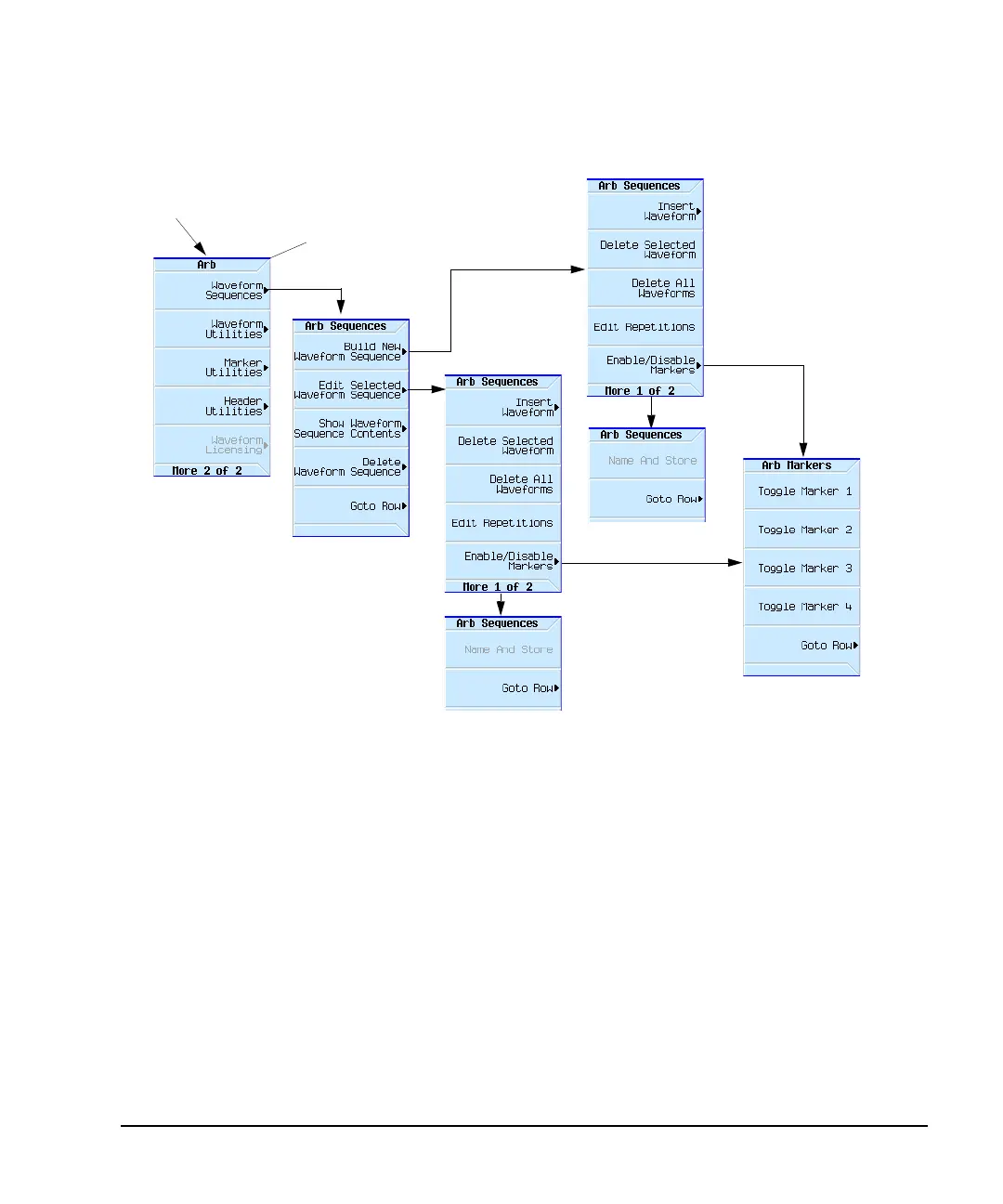

Figure 8-6 Waveform Sequence Menus for Enabling/Disabling Segment Markers

Mode > Dual ARB >

Note: This is the second Arb menu.

For details on each key, use key help

as described on page 44.

Enable/Disable markers while

creating a waveform sequence

Edit a sequence to

enable/disable markers
