Agilent X-Series Signal Generators User’s Guide 187

Basic Digital Operation (Option 653/655/656/657)

Clipping a Waveform

Combining the I and Q Waveforms

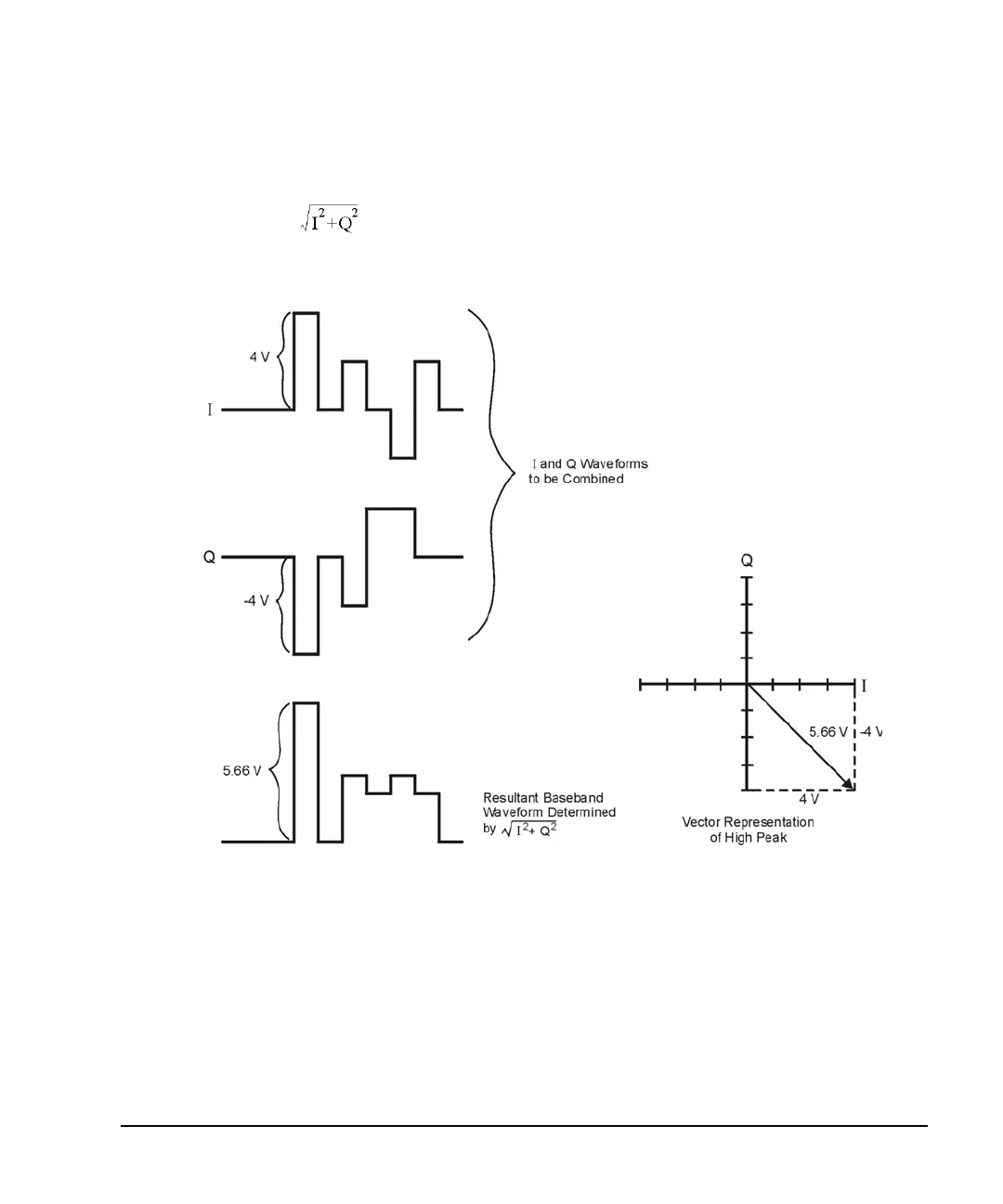

When the I and Q waveforms combine in the I/Q modulator to create an RF waveform, the magnitude

of the RF envelope is , where the squaring of I and Q always results in a positive value.

As shown in the following figure, simultaneous positive and negative peaks in the I and Q waveforms

do not cancel each other, but combine to create an even greater peak.
