288 Agilent X-Series Signal Generators User’s Guide

Digital Signal Interface Module (Option 003/004)

Operating the N5102A Module in Input Mode

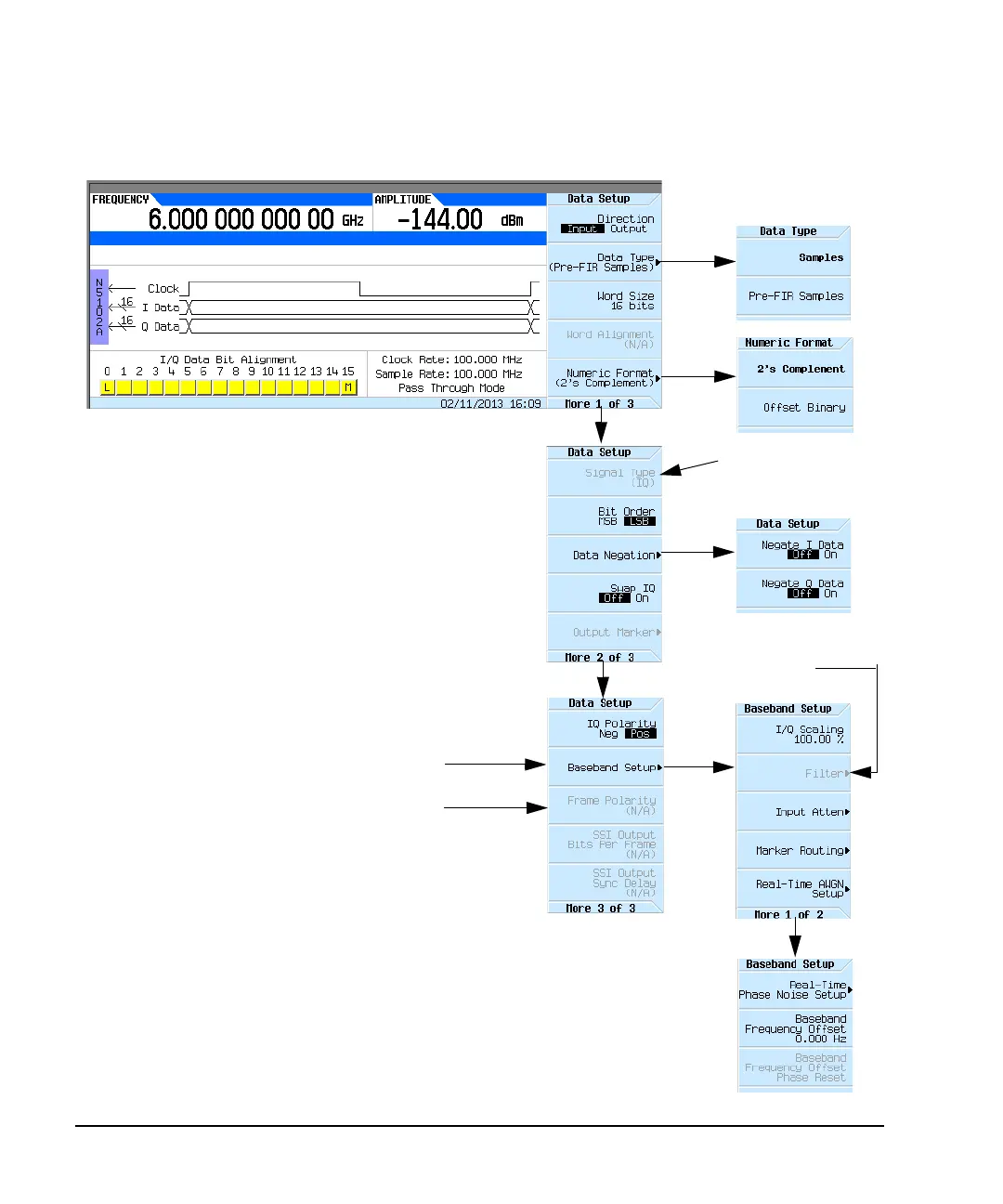

Figure 10-22 Data Setup Softkey Menu with Parallel Port Configuration

Inactive for a serial port

Frame polarity is active

configuration

for a serial port configuration

Only available when the

N5102A digital module is

turned on and using input mode

Only available when

Data Type is

Pre-FIR Samples
