Agilent X-Series Signal Generators User’s Guide 305
BERT (Option UN7)
Verifying BERT Operation

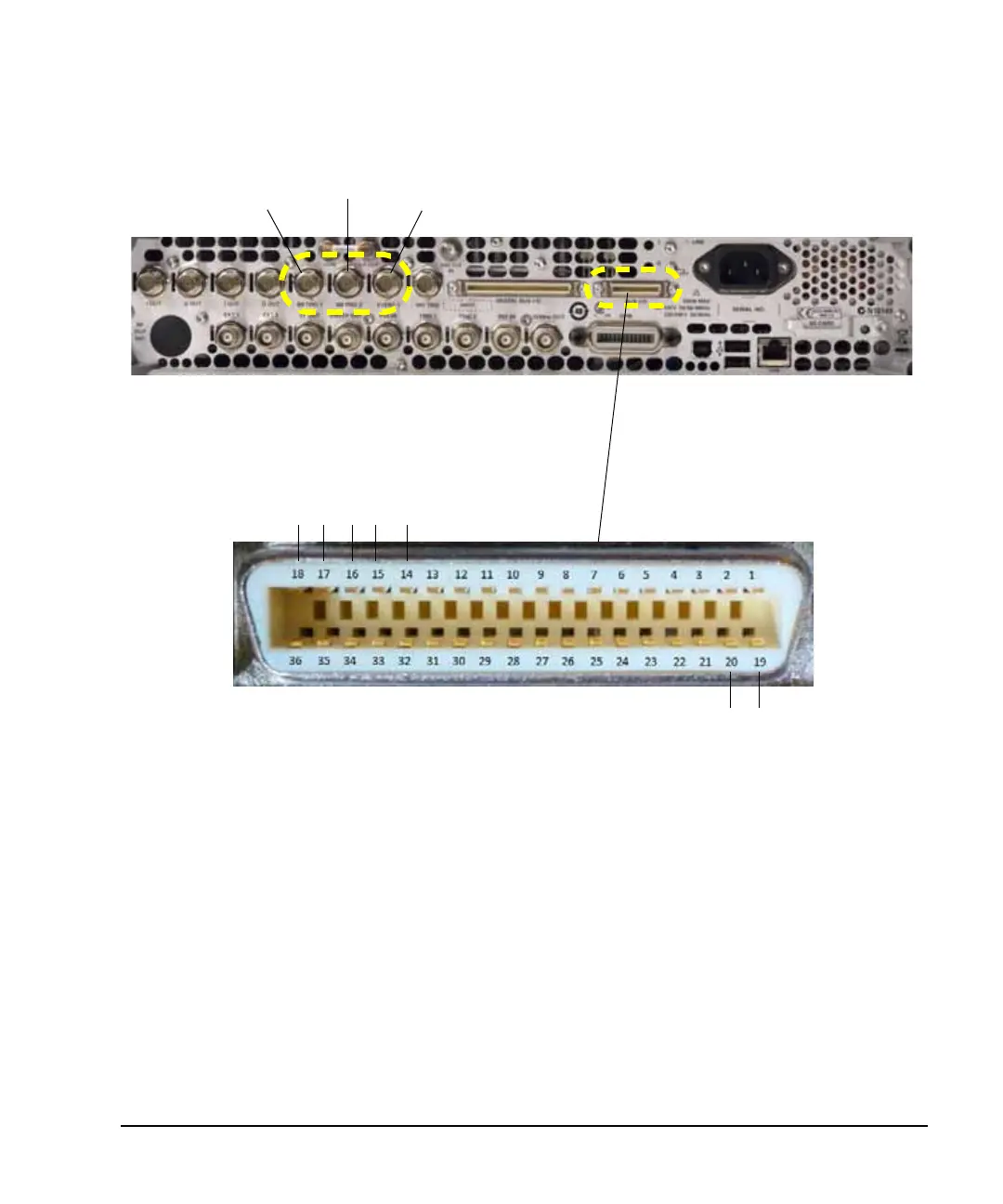

Figure 11-14 Rear Panel Connectors for BERT Configuration
2. Press the Preset hardkey. This configures the signal generator to a pre- defined state.
3. Press the Aux Fctn hardkey.
4. Press Digital Bus Connectivity PXB/BERT N5102A to PXB/BERT > Confirm Changes > BERT > BERT Off On to On > BER
Display > BER Display % Exp
to % > Display Update Cycle End Cont to Cont.
5. Press BERT > I/O Setup > AUX I/O Out > PN9 Out.
6. Press Return > Configure Trigger > BERT Trigger > Immediate.
7. Press Return > BERT > On.
The Total Bits will count to 10000 Bits (default setting) and the Error Bits should read 0 Bits. See
Figure 11- 15.
BER Data In
BER Gate In
BER Clock In
BER Meas End
BER Sync Loss
BER Test Out
BER Gate Out
BER No Data
AUX I/O
GND
To Next Page
