Using Analog Modulation (Option UNT)
Using an External Modulation Source
NOTE For frequencies between 9kHz and 5 MHz, Wideband AM turns off.

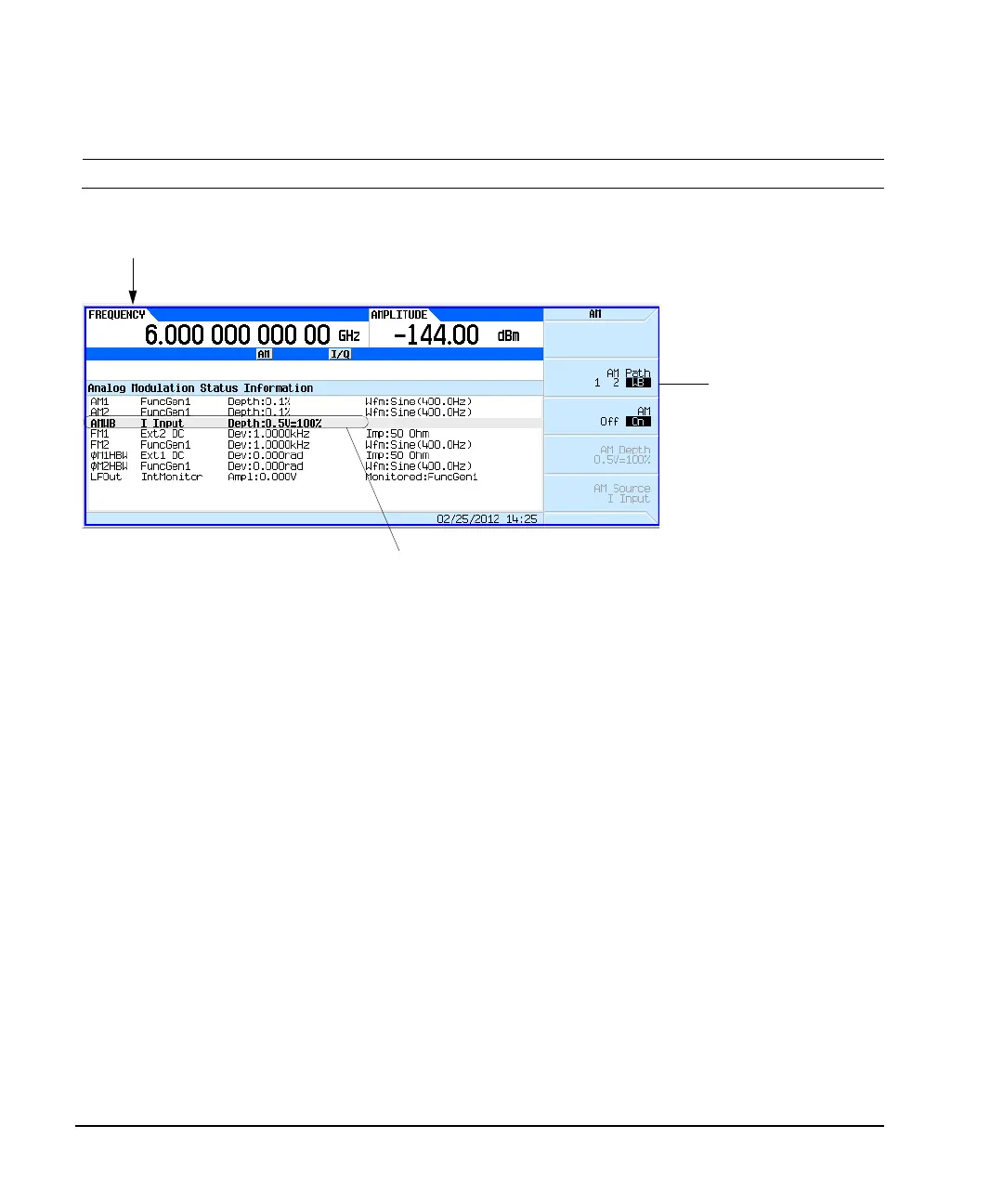

Figure 4-2 Wideband AM Softkey Menu
Setting the Wideband AM
1. Set up and enable the desired modulation type.
2. Press AM > AM Path 1 2 WB to WB.
AM > AM Path 1 2 WB
Enables and disables the
wideband AM feature.
Note: If the I/Q is turned
off or the I/Q source is set
to internal, then the
wideband AM turns off.
For details on each key, use key help
as described on page 44.
When the Wideband AM is enabled, these fields are
active.
To Next Page
