Alcatel-Lucent 7210 SAS M Service Guide

Circuit Emulation (Cpipe) Services
Page 128 7210 SAS M Services Guide
In the previous example, 16 frames were accumulated in the CESoPSN packet. In this case, the
packetization delay (D) can be calculated as follows:
D = 125 µs/frame * 16 frames
= 2.000 ms

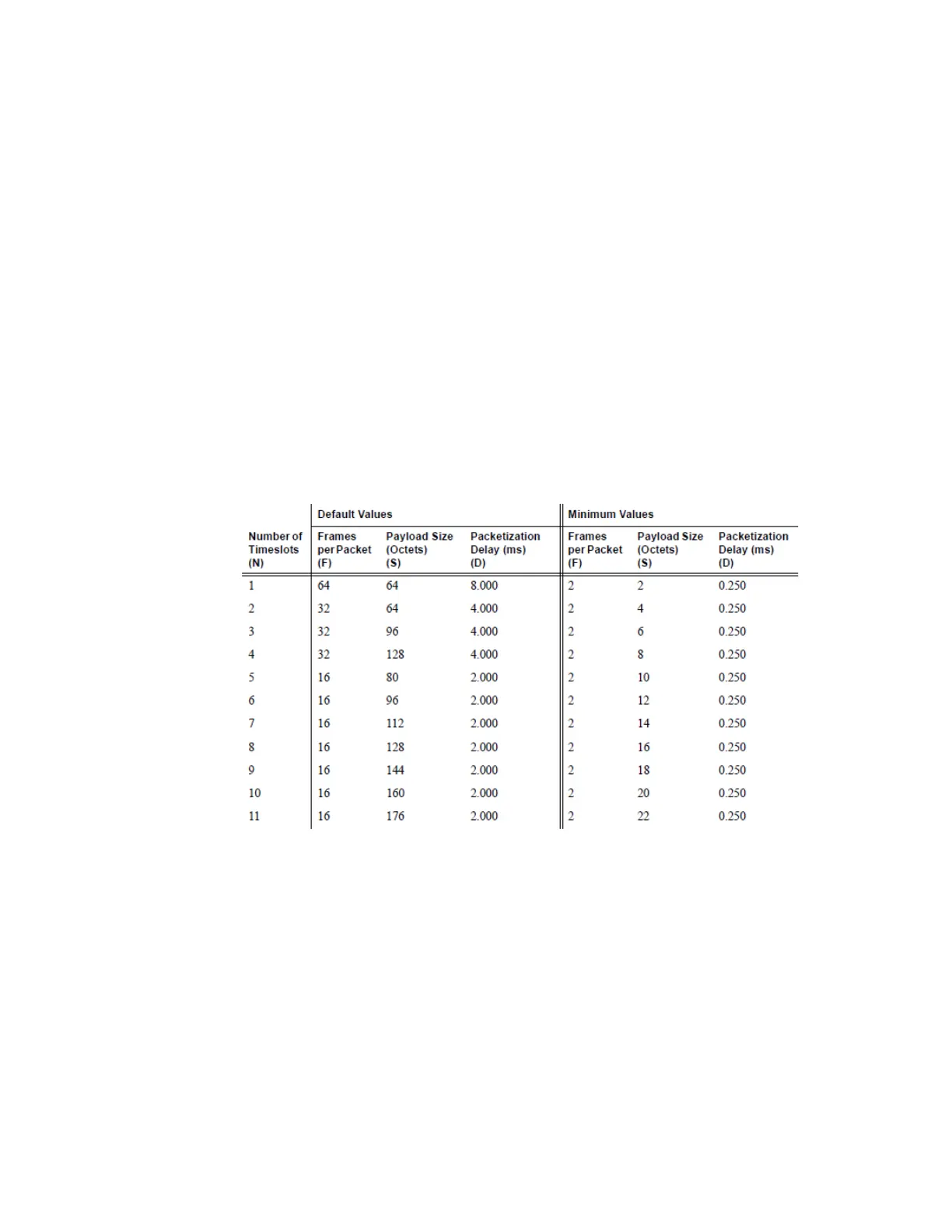

Table 9 shows the default and minimum values for frames per packet, payload size, and
packetization delay as they apply to the number of timeslots (N) that contribute to the packet
payload. The default values are set by the operating system as follows:
• For N = 1, the default is 64 frames/packet
• For 2 ≤ N≤4, the default is 32 frames/packet
• For 5 ≤ N ≤ 15, the default is 16 frames/packet
•For N ≥16, the default is 8 frames/packet
