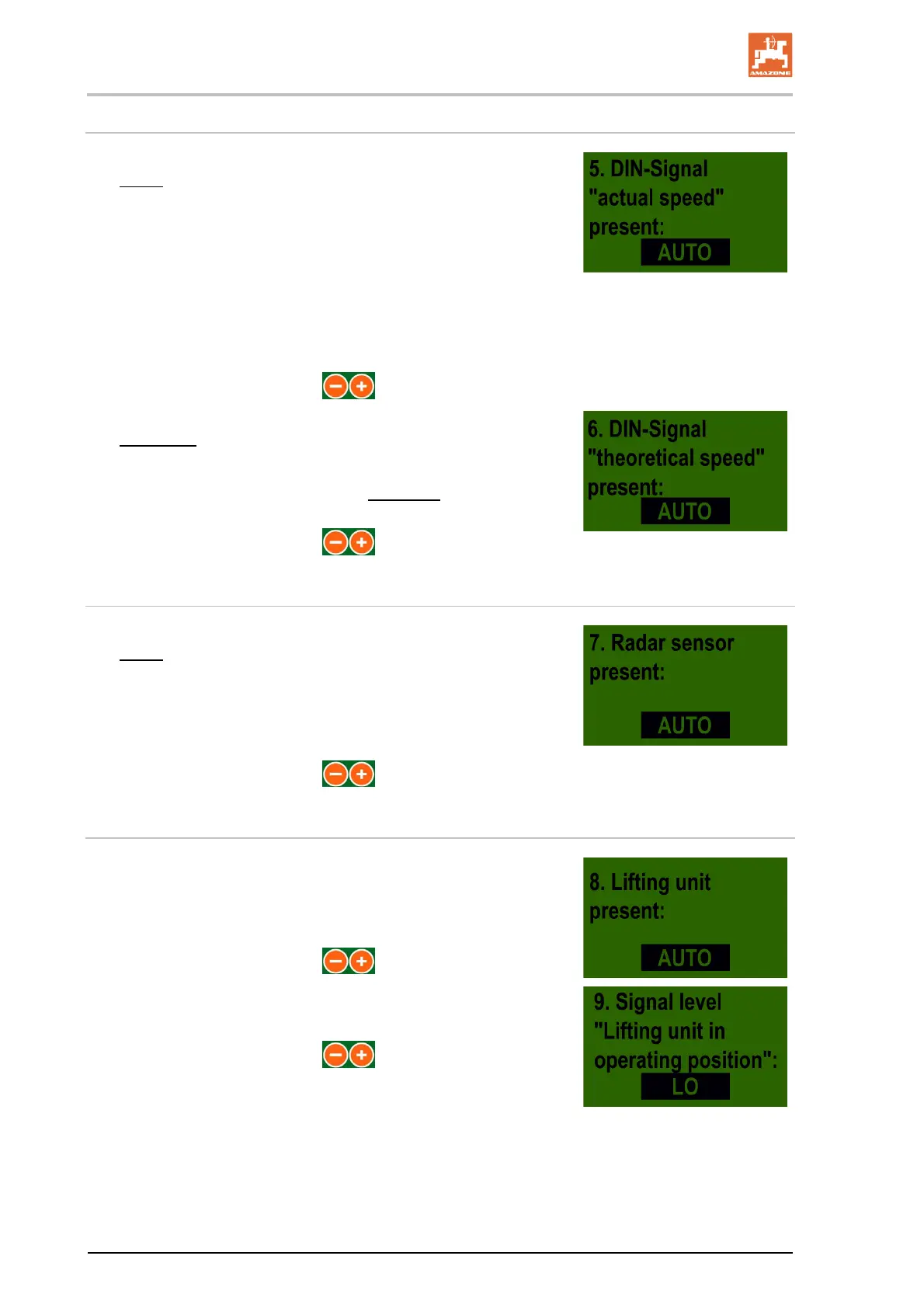

Entry of the forward speed signal source [km/h]
The control terminal receives
the "Actual forward speed [km/h]" signal
through one of the 3 connections:
 Connection on the 7-pin tractor signal socket or
 Connection on the radar device or
 Connection on the GPS device
YES, NO or AUTO
"AUTO" automatically detects whether the signal comes from the 7-
pin tractor signal socket, from the radar device or the GPS device.
Change the parameters using the
buttons.
The control terminal receives
the "Theoretical forward speed [km/h]" signal
YES, NO or AUTO
"AUTO" automatically detects where the theoretical speed signal is
coming from.
Change the parameters using the
buttons.
Entry of the radar sensor signal source
The control terminal receives
the "Actual forward speed [km/h]" signal
from the radar device.
YES, NO or AUTO
"AUTO" automatically detects whether the radar device is connect-
ed.
Change the parameters using the
buttons.
Entry of the working position sensor signal source
The control terminal receives
the "Working/transport position]" signal
from the working position sensor (see section 7.18.4.2,
page 94).
YES, NO or AUTO
Change the parameters using the
buttons.
In working position, the working position sensor sends
HI or LO
Change the parameters using the
buttons.
Note:
On some tractors, the lifting unit signal is inverted. Invert the lifting
unit signal if the GreenDrill is e.g. seeding in transport position.
