GreenDrill control terminal 3.2
60
GreenDrill BAH0054-9 11.17

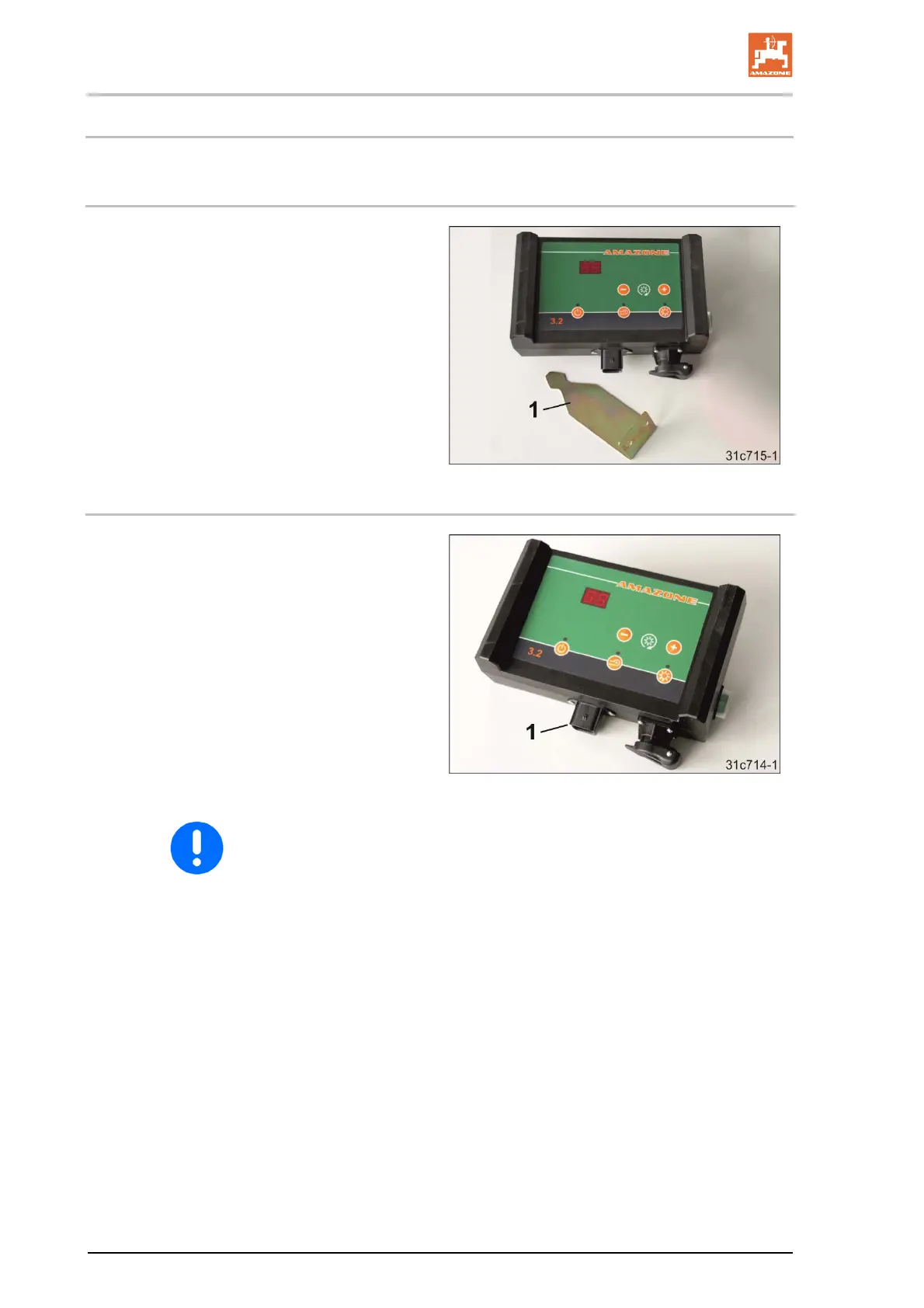

6.11 Installations and connections – Control terminal 3.2
6.11.1 Installation of the control terminal 3.2
1. Fasten the bracket (1) in the tractor cab
with 2 screws.
2. Bend the bracket to ensure optimal reading
of the display.
3. Attach the control terminal on the bracket in
the tractor cab.
6.11.2 Connecting the GreenDrill to the control terminal using the implement cable
The implement cable connects the control termi-
nal with the GreenDrill.
Connect the implement cable to the 6-pin signal
socket (1) of the control terminal.
Store the spare cable in the cab.
Do not coil up the cable.
