GreenDrill control terminal 5.2
GreenDrill BAH0054-9 11.17
63

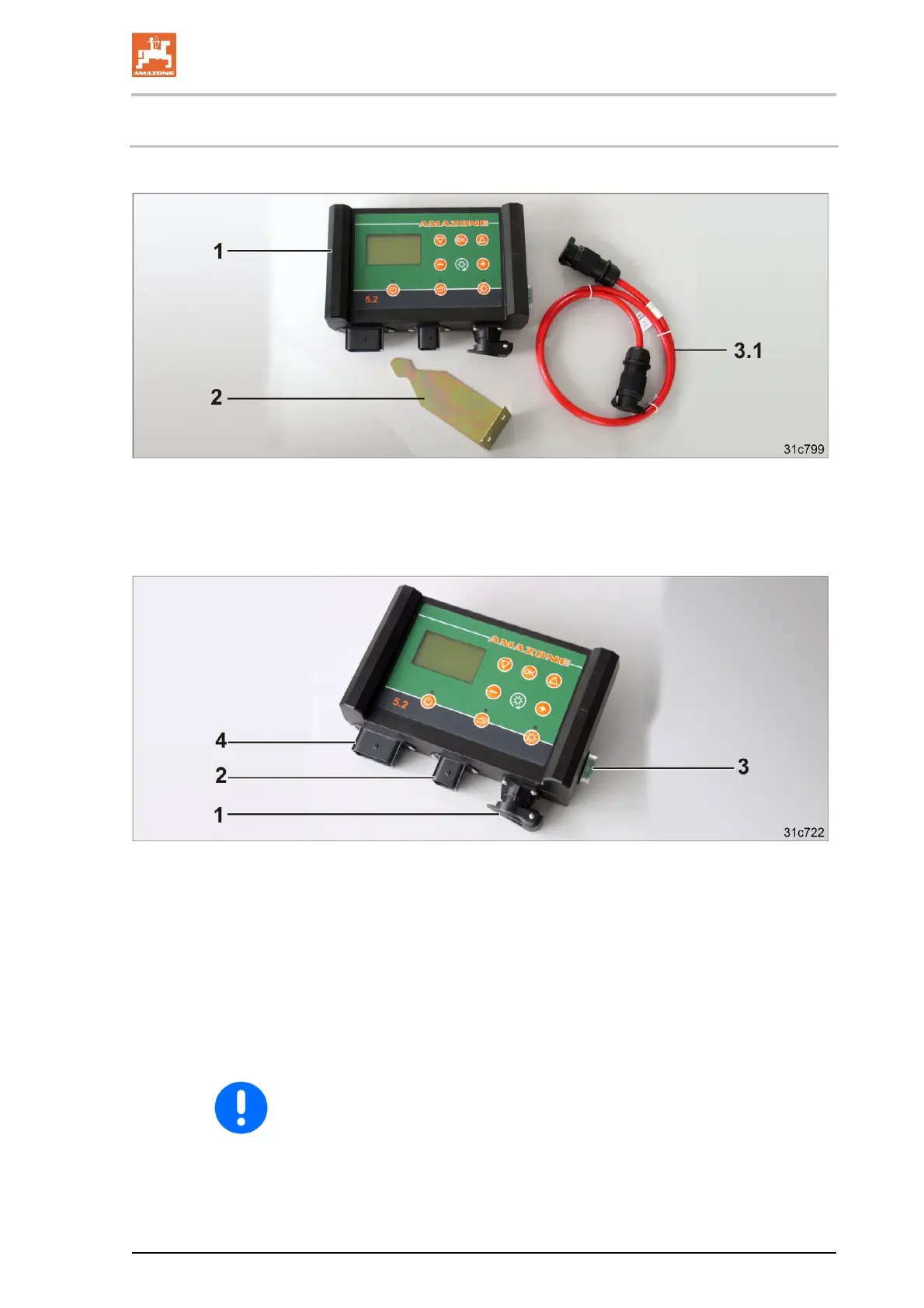

7 GreenDrill control terminal 5.2
(1) GreenDrill control terminal 5.2
(2) Bracket for the control terminal
(3) Power cable for 3-pin tractor standard socket (12-volt)
(1) Socket (3-pin) for power supply
(2) Signal socket (6-pin) for the implement cable
The implement cable connects the control terminal with the GreenDrill.
(3) 30 A fuse
(4) Signal socket (12-pin) for connection
to the 7-pin tractor signal socket or
to a splitter (see e.g. section "7.18.4.3", page 95).
When not in use, protect the plug of the implement cable from mois-
ture. Use the plug protective cap.
