GreenDrill control terminal 5.2
GreenDrill BAH0054-9 11.17
91
7.18 Installations and connections – Control terminal 5.2

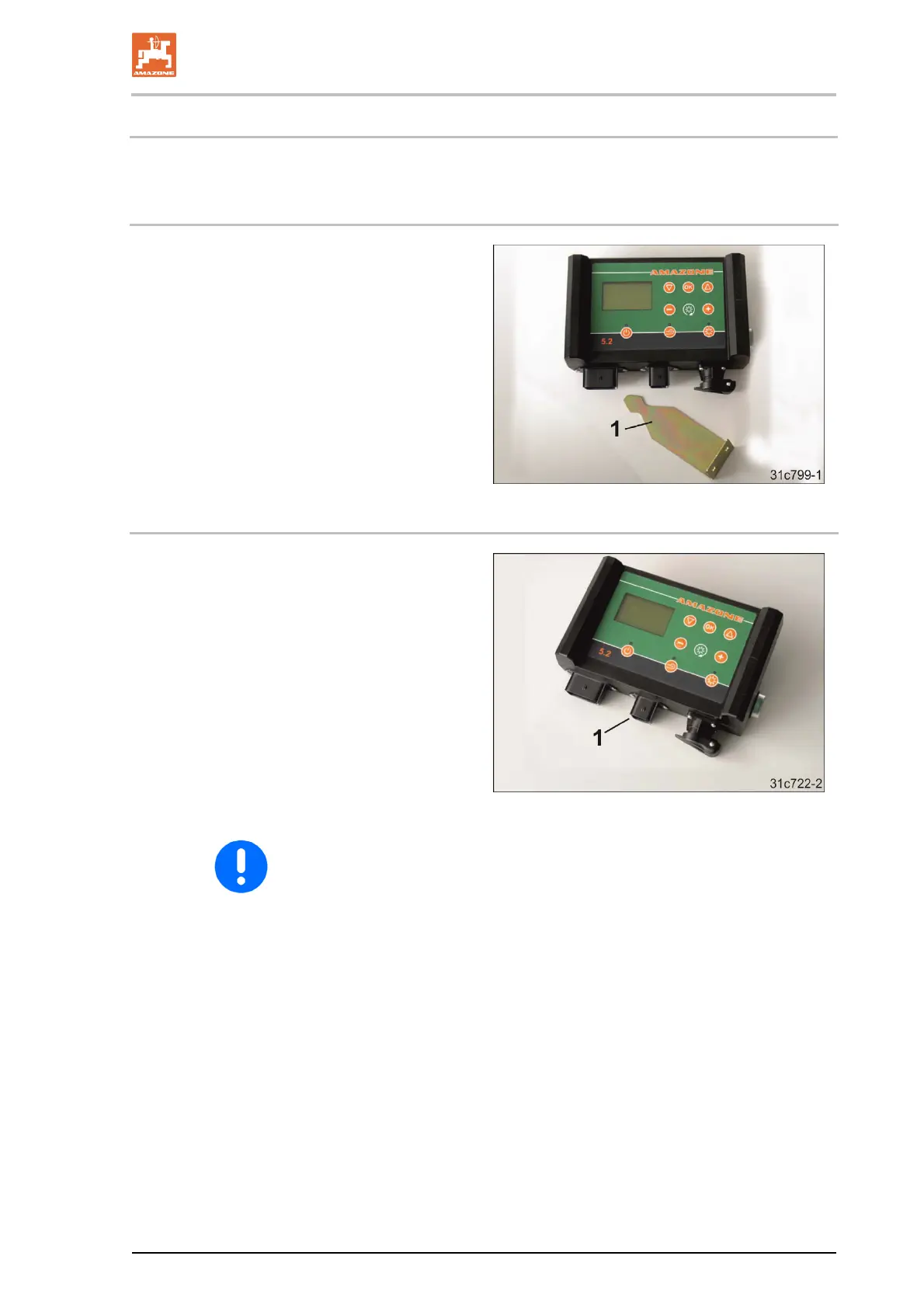

7.18.1 Installation of the control terminal 5.2
Fasten the bracket (1) in the tractor cab with 2
screws.
Bend the bracket so as to provide optimum read-
ing of the display.
Insert the control terminal on the bracket in the
tractor cab.
7.18.2 Implement cable connection
The implement cable connects the control termi-
nal with the GreenDrill.
Connect the implement cable to the 6-pin signal
socket (1) of the control terminal.
Store the spare cable in the cab.
Do not coil up the cable.
