7.18.4.2 Working position sensor

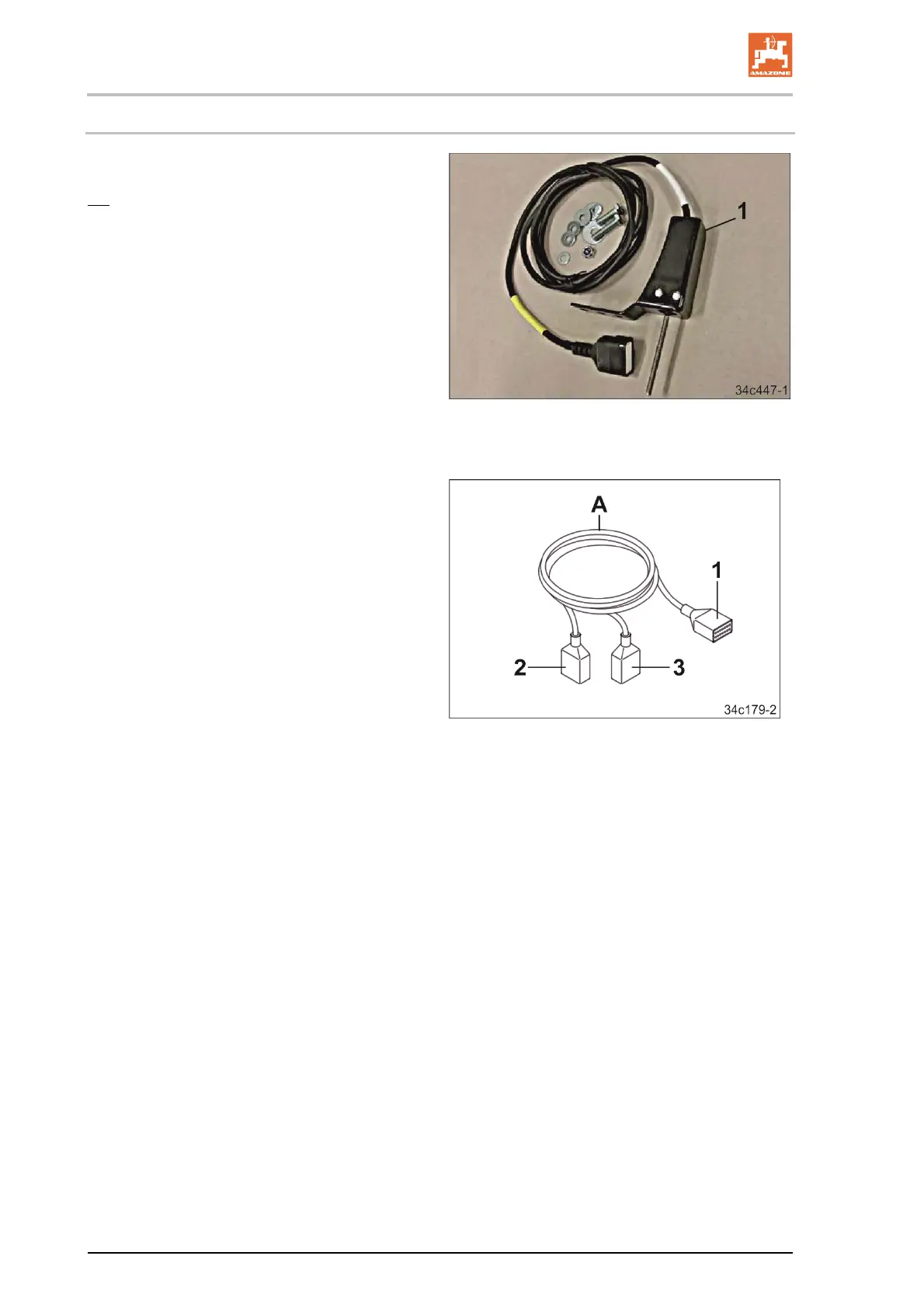

The working position sensor (1) is required when
the tractor has a 7-pin signal socket that does
not emit a "Working position" signal [see section
"Tractor signal socket (7-pin)", page 93].
The working position sensor (1) can be attached
on the tractor three-point or on the swivelling
running gear of the carrying implement.
The working position sensor transmits the cur-
rent position of the GreenDrill to the control ter-
minal:
The implement is in working position
The implement is in transport position.
Have retroactively purchased special equipment
installed by a specialist workshop based on the
supplied assembly instructions.
The supplied splitter (A) has 3 connections:
Connection (1): Control terminal
Connection (2): 7-pin tractor socket
The connection transmits
the forward speed [km/h].
Connection (3): Working position sensor
