GreenDrill control terminal 3.2
GreenDrill BAH0054-9 11.17
51
6.1 Control elements

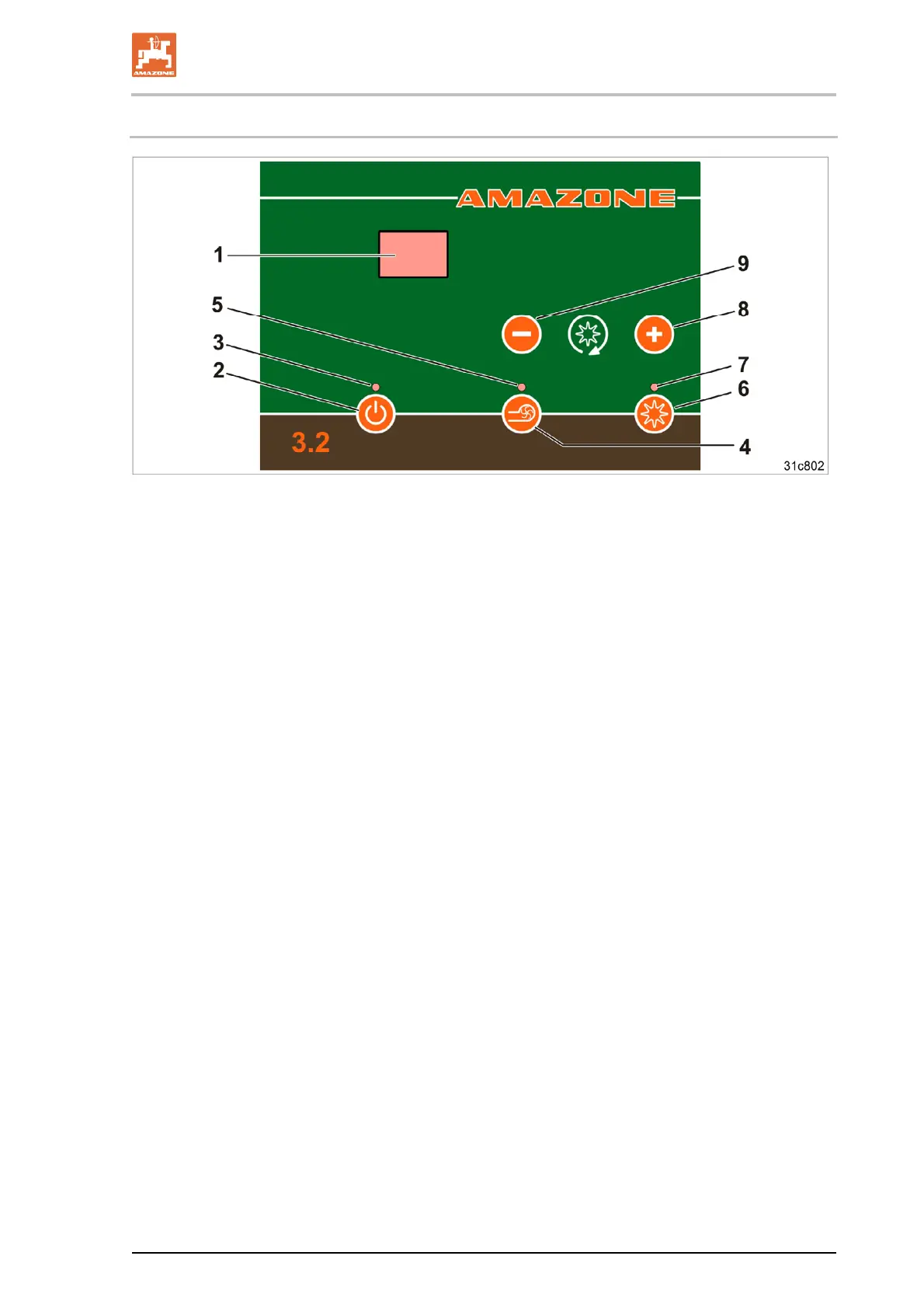

(1) Display
(2) On/Off button
(3) The control lamp is illuminated
when the control terminal is switched on
(4) Switch the electric blower fan drive
on and off
The button is without function
with the hydraulic blower fan drive
(5) The control lamp is illuminated
when the blower fan is switched on.
With the hydraulic blower fan drive, a pressure
sensor is required, see section "Hydraulic blower
fan drive", page 38
(6) Switch seeding shaft on/off
(7) The control lamp is illuminated
when the seeding shaft is running
(8) Increase the seeding shaft speed
(9) Decrease the seeding shaft speed
