7.18.4.4 Measuring the forward speed with the GPS device
If the tractor does not have a 7-pin signal socket, control terminal 5.2 requires
a working position sensor (see section "Working position sensor", page 94) and
a GPS device or a radar device (see section "Measuring the forward speed with the radar de-
vice", page 95).
The horizontally mounted GPS device provides the pulses for the forward speed [km/h]. The current
forward speed is measured using the combination of a GPS device and a 3D acceleration sensor. Cal-
ibration (pulses/100 m, see section 7.7,
page 75) is not necessary.
Have retroactively purchased special equipment installed by a specialist workshop based on the sup-
plied assembly instructions and operating manual.

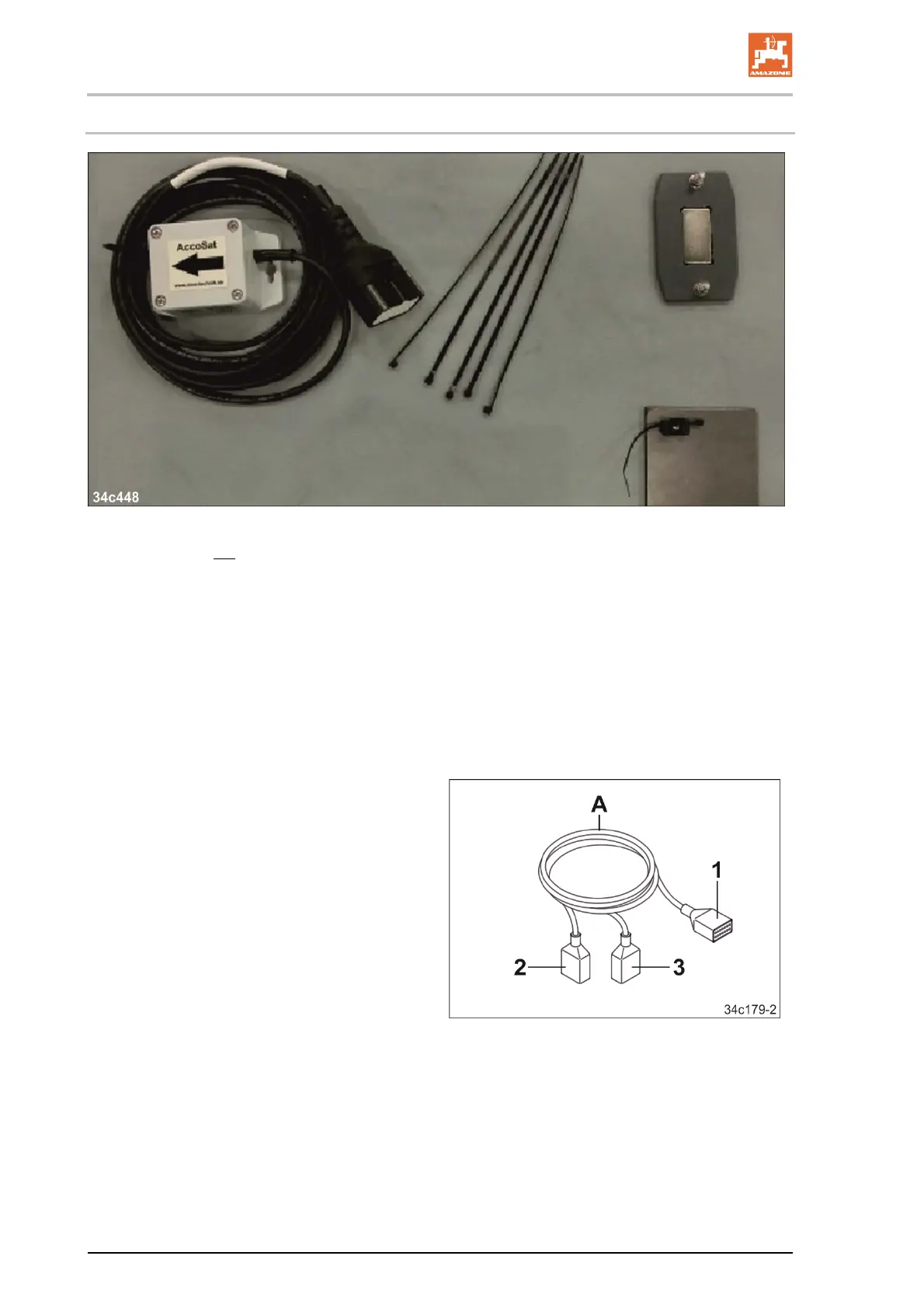

The supplied splitter (A) has 3 connections:
Connection (1): Control terminal
Connection (2): Working position sensor
Connection (3): GPS device
The GPS device transmits
the measured forward
speed [km/h].
