7.18.4.3 Measuring the forward speed with the radar device
If the tractor does not have a 7-pin signal socket, control terminal 5.2 requires
a working position sensor (see section "Working position sensor", page 94) and
a radar device or a GPS device (see section "Measuring the forward speed with the GPS device",
page 96).
The radar device provides the pulses for the forward speed [km/h].
Have retroactively purchased special equipment installed by a specialist workshop based on the sup-
plied assembly instructions and operating manual.

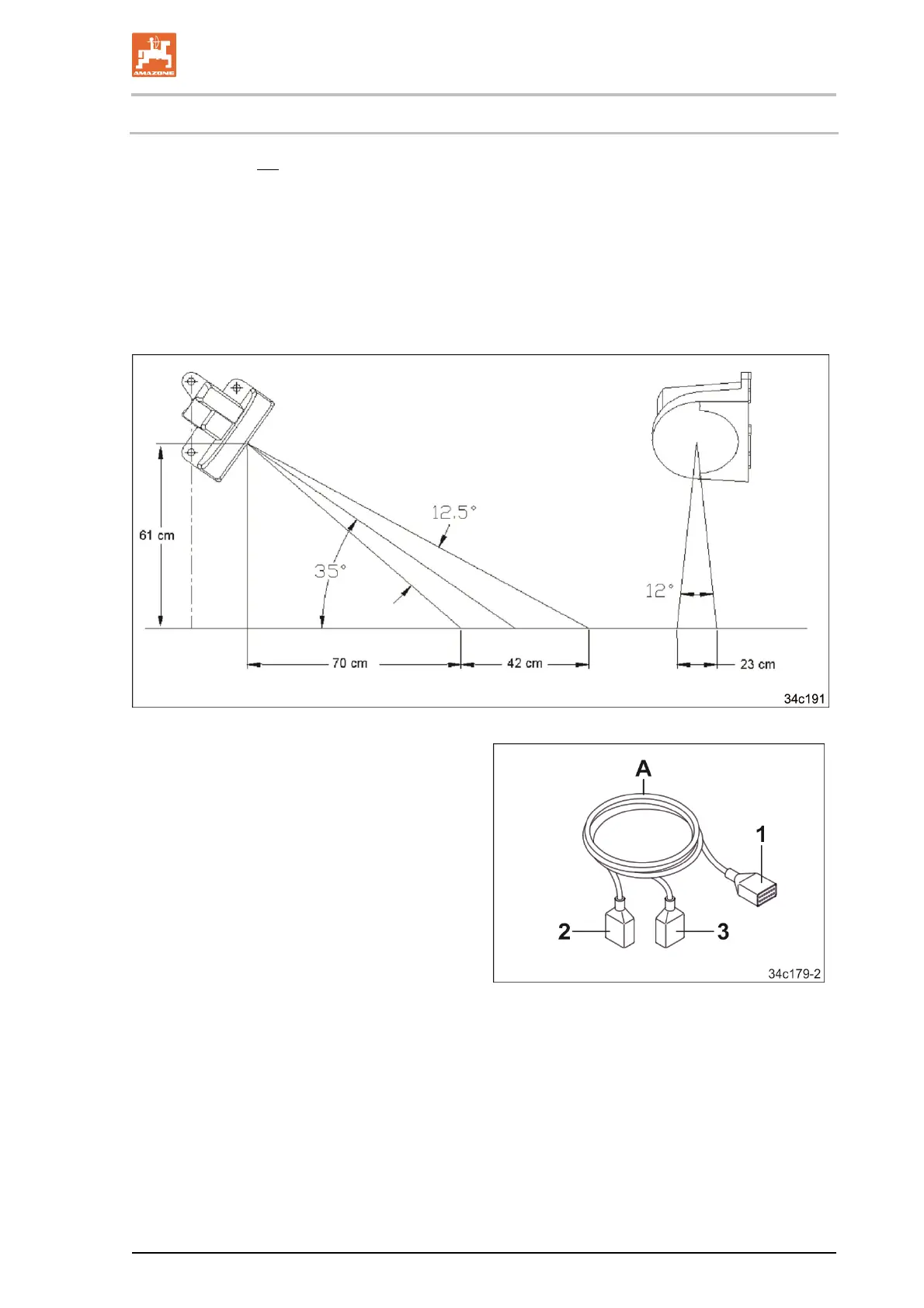

Adjust the radar device based on the diagram:
The supplied splitter (A) has 3 connections:
Connection (1): Control terminal
Connection (2): Working position sensor
Connection (3): Radar device
The radar device transmits
the measured forward
speed [km/h].
