4.1.2 Seeding shaft speed
Control terminal 3.2
An electric motor drives the seeding shaft. The working speed selected for the calibration test must
always be maintained, as the speed of the seeding shaft determined with the calibration test does not
change.
Control terminal 5.2
An electric motor drives the seeding shaft. If the control terminal is connected to the 7-pin tractor sig-
nal socket with speed sensor or the implement is equipped with a radar or GPS device, the speed of
the seeding shaft is automatically adjusted for the working speed. The seed rate [kg/ha] always re-
mains the same even at different working speeds.
4.1.3 Scraper

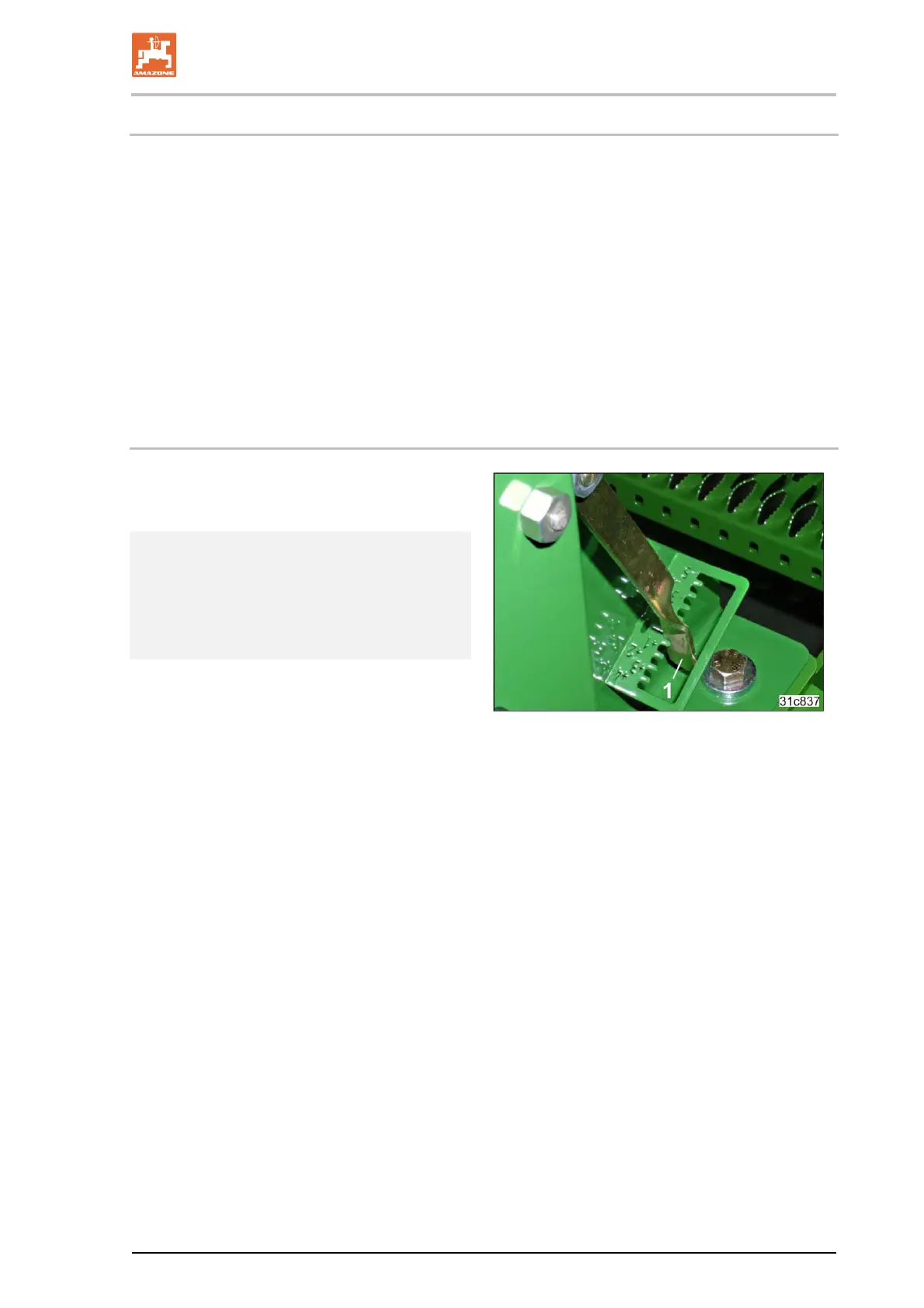

A brush is attached above the seed metering
wheels. The scraper can be adjusted using a
lever (1) on a scale from +4 to -5.
Brush lever position
for free-flowing fine seeds, slightly in the
minus range.
for large seeds, slightly in the plus range.
Adjusting the lever allows finer adjustment of the seed spread rate.
Scale values -1 to -5:
The brush is pressed against the seed metering wheels using the lever.
The spread rate is slightly reduced.
Scale values +1 to +4:
The brush is lifted off the seed metering wheels using the lever.
The spread rate is slightly increased.
