Settings before commissioning
GreenDrill BAH0054-9 11.17
47
5.7 Hydraulic blower fan drive
Before you adjust the blower fan speed, check the program settings, see
section 7.20.2, page 100
section 7.20.8, page 103
section 7.20.9, page 103

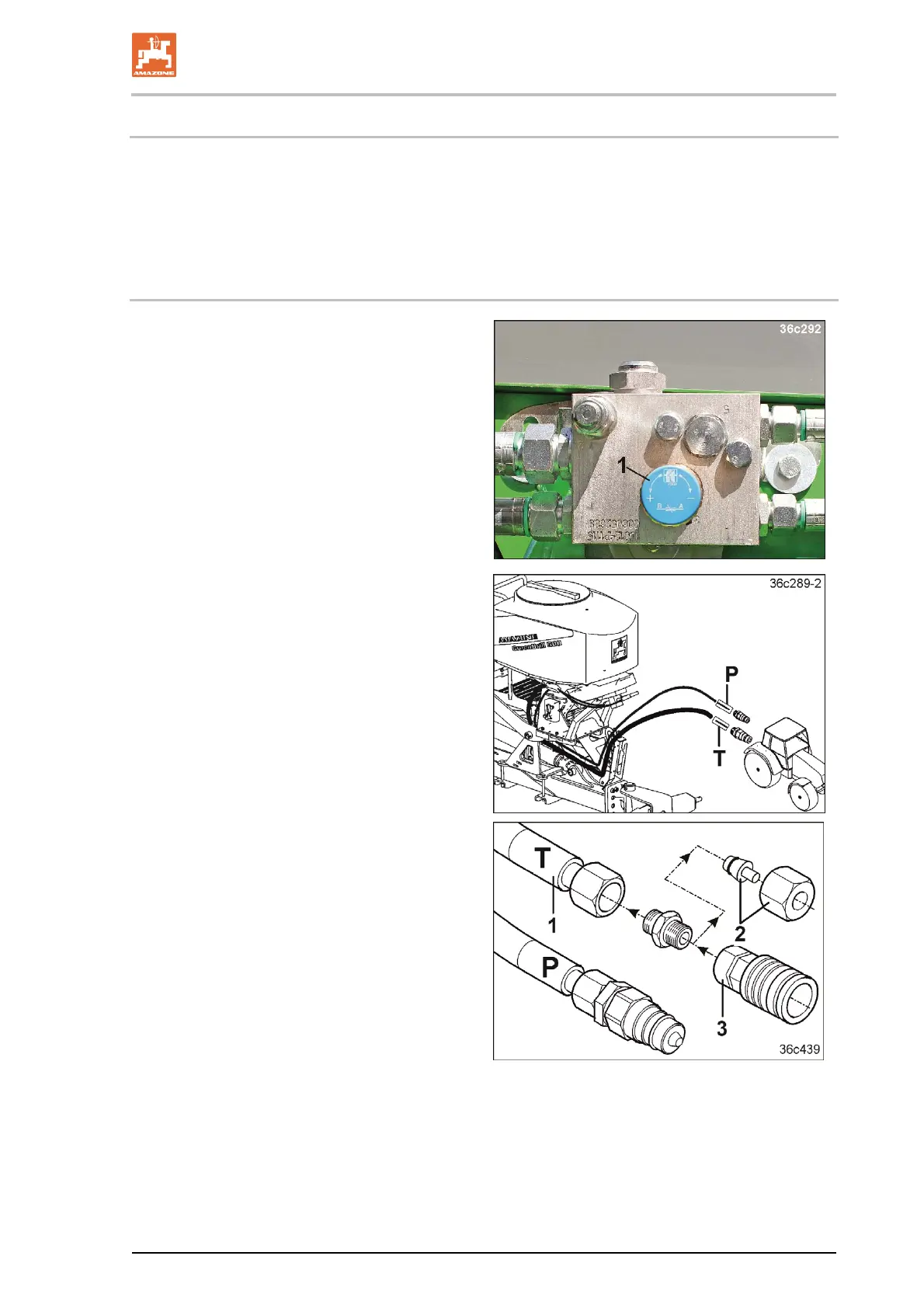

5.7.1 Connecting the hydraulic hose lines to the tractor
The GreenDrill is equipped with a hydraulic con-
trol block with control valve (1).
The following are connected to the hydraulic con-
trol block
2 hydraulic lines to the blower fan hydraulic
motor and
2 hydraulic hose lines to the tractor. The
hydraulic hose lines are labelled with P
(red) and T (yellow).
Check whether the return flow line (1) marked in
yellow has a sealing plug (2).
Remove the sealing plug (2) and attach the sep-
arately supplied coupling sleeves (3) on the re-
turn flow line.
