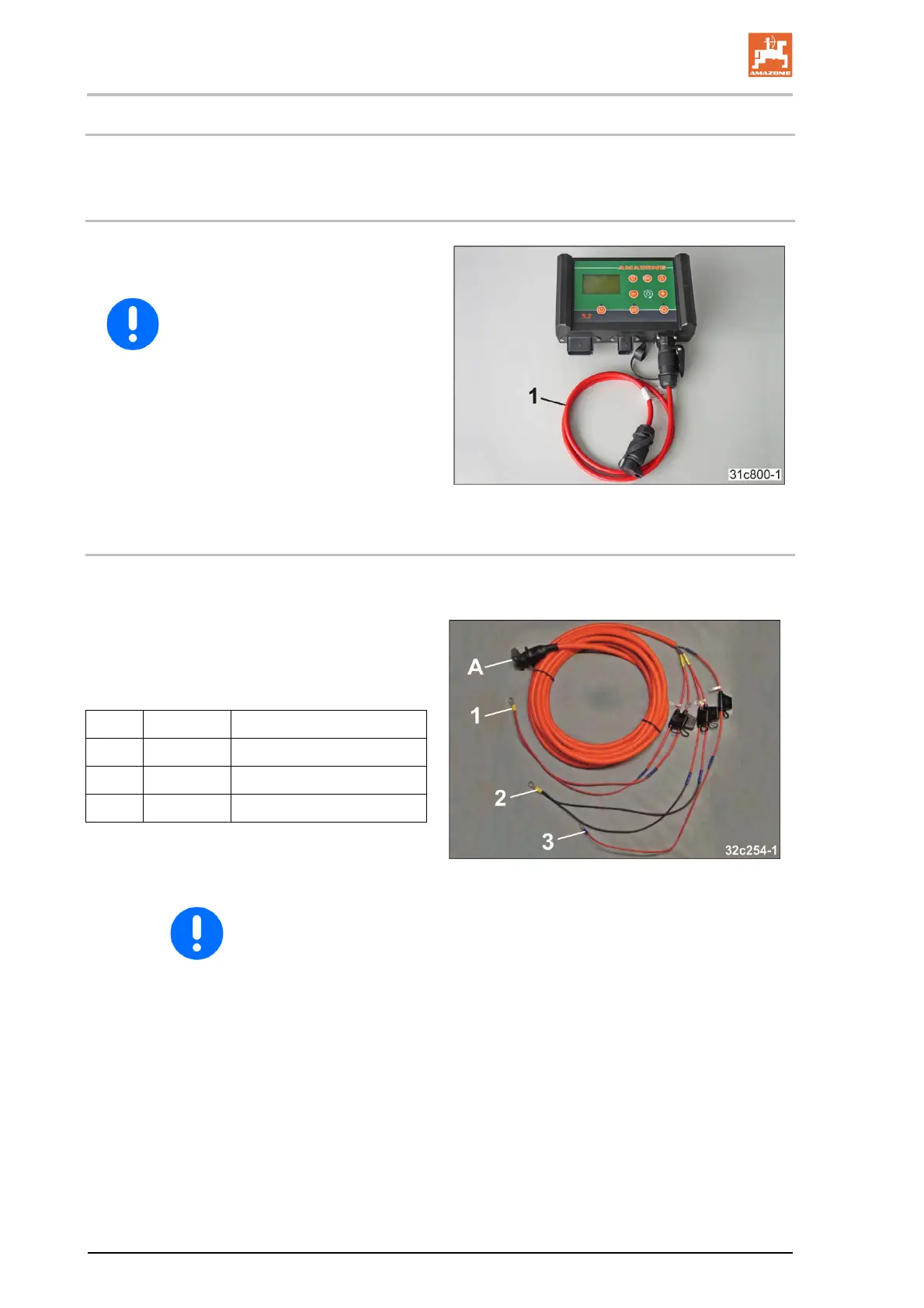

7.18.3 Power cable connection
7.18.3.1 Tractor with standard socket (3-pin)
Connect the power cable (1) to control terminal
and the 3-pin standard socket in the tractor cab.
Never connect the 12 volt power
supply to the cigarette lighter socket.
7.18.3.2 Tractor without standard socket (3-pin)
If the tractor is not equipped with a 3-pin standard socket, have the battery cable retrofitted on your
tractor at a specialist workshop. The battery cable has a 3-pin standard socket (A).
Have the 3-pin standard socket (A) of the battery
cable routed to the tractor cab.
Connect the cable ends of the battery cable as
follows:
No. Colour Connection
1 Red Positive battery terminal
2 Black Negative battery terminal
3 Red Ignition plus terminal
Never run a battery charging device together with the control terminal.
