User Manual – Rev BE AMETEK Programmable Power
MX Series 141

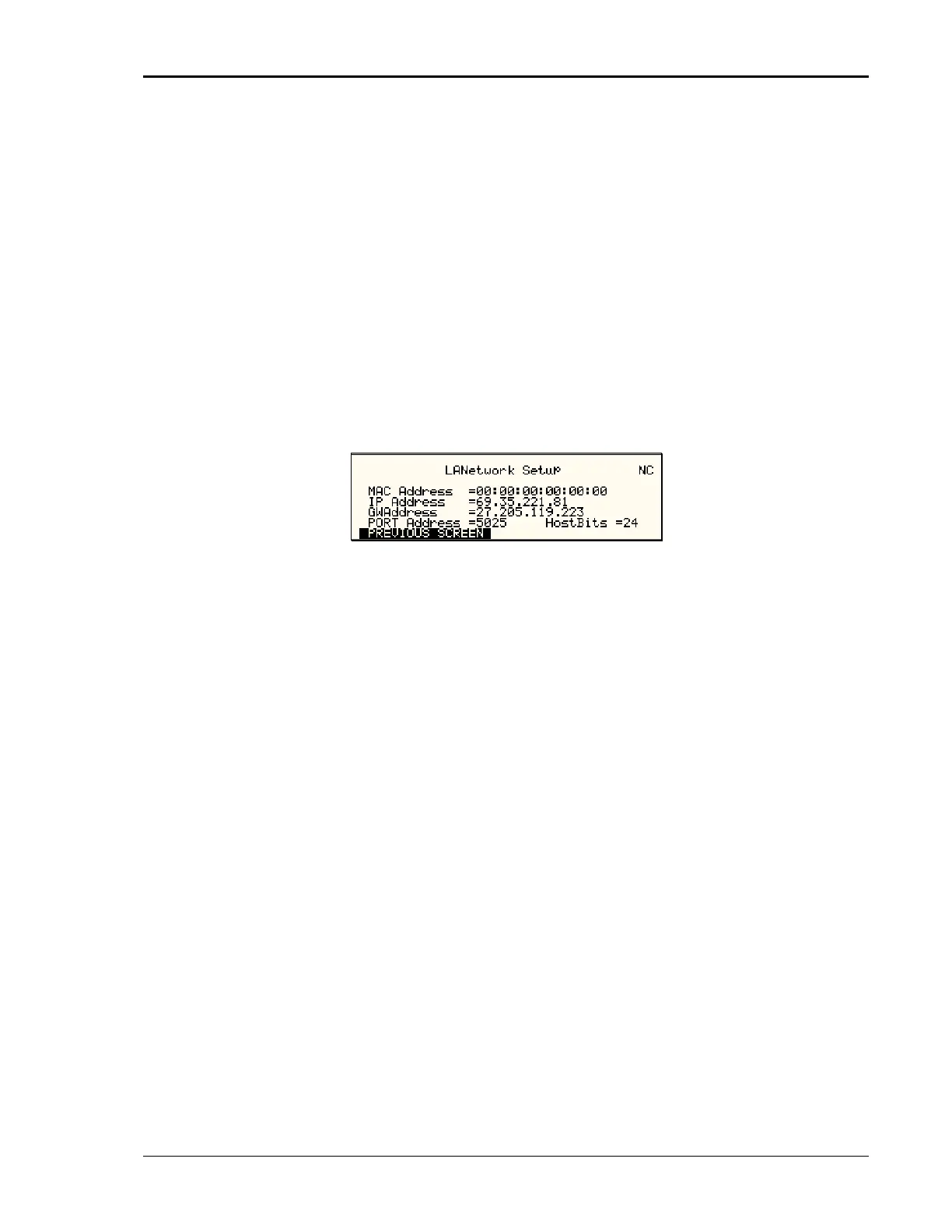

LANETWORK SETUP Displays or sets LAN interface settings. If the LAN
option is present, this screen may be used to view or
change LAN parameters. The MAC address is fixed and
cannot be changed. IP and Gateway addresses are
normally assigned by the network DCHP server.
Changes to the other fields can be made by pressing
the SET button first. The indicator in the top right hand
of the screen will change from “NC” to “SET”. Note that
any setting changes made will not take effect till after
the unit has been powered down and back up.
To set the LAN interface to AUTO IP mode, set the IP
and Gateway address to all zeros. This will cause the IP
to be requested from the network the next time power
is cycled. To manually set the IP and Gateway address,
enter the address from the keypad.
The Port address is normally set to 5025. The number
of host bits is a function of the network address range.
