Chapter 3 Software Navigation
Part Number: 0160-6411, Rev A, 02/2019 Page 147 of 314
Software Release: cOS 5.00
Adjust Arcuate Incisions Screens
To adjust the arcuate incisions parameters after performing INTEGRAL GUIDANCE System
imaging, press the EDIT button on the Arcuate Incisions Review Screen to go to the Adjust
Arcuate Incisions (Basic) Screen.

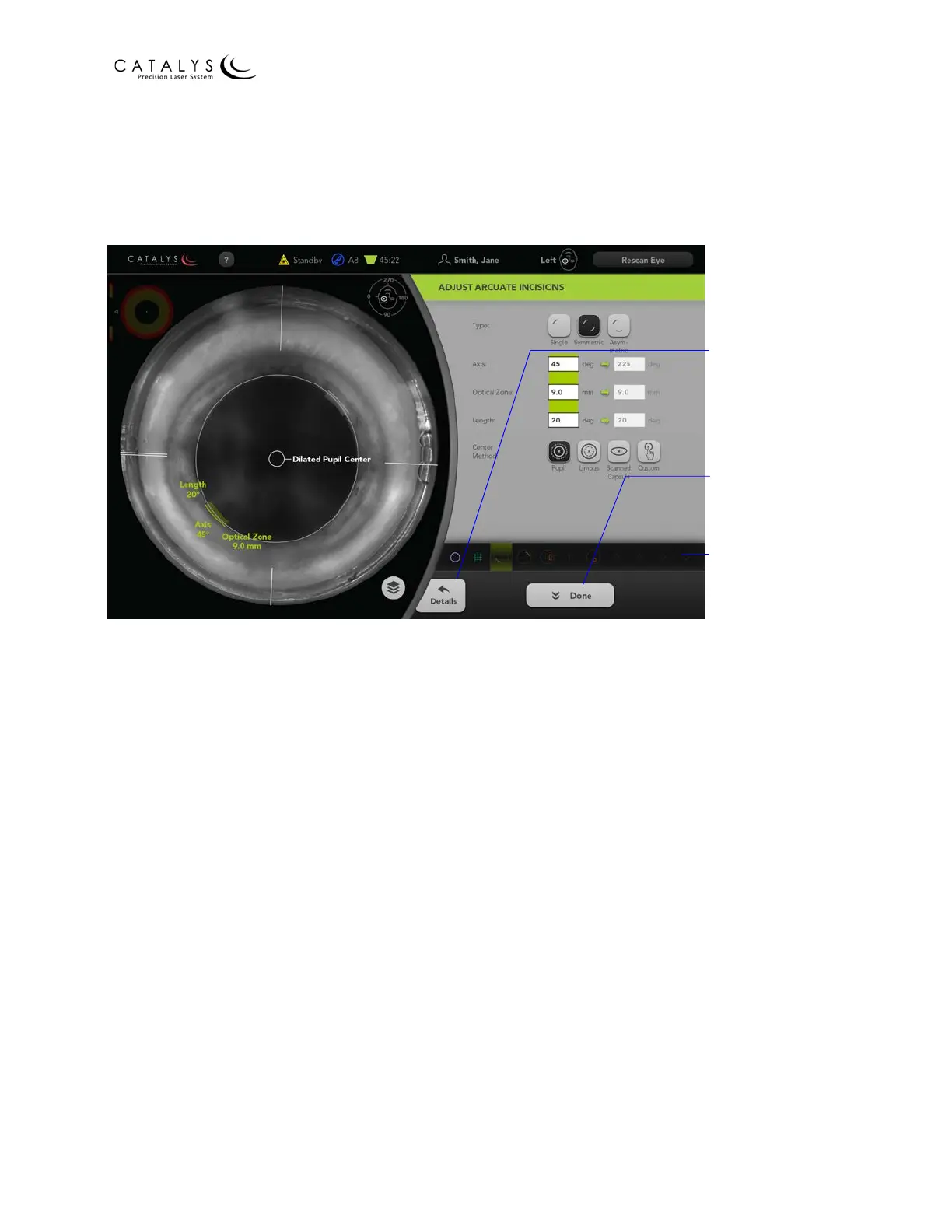

Figure 3.104 Adjust Arcuate Incisions (Basic) Screen
Adjust the desired parameters on the Adjust Arcuate Incisions (Basic) Screen, and then press the
DETAILS button to proceed to the Adjust Arcuate Incisions Details Screen. Alternatively, you can
select an icon from the Quick Navigation Bar to go to the Incision Adjustment Screens for the
corresponding incision or press the DONE button to return to the Arcuate Incisions Review
Screen.
Go to Arcuate
Incisions Review
Screen
Go to Adjust
Arcuate Incisions
Details Screen
Quick Navigation Bar
To Next Page
