Appendix A – Chapter 1 Mobile Patient Bed System Description
Page 240 of 314 Part Number: 0160-6411, Rev A, 02/2019
Software Release: cOS 5.00

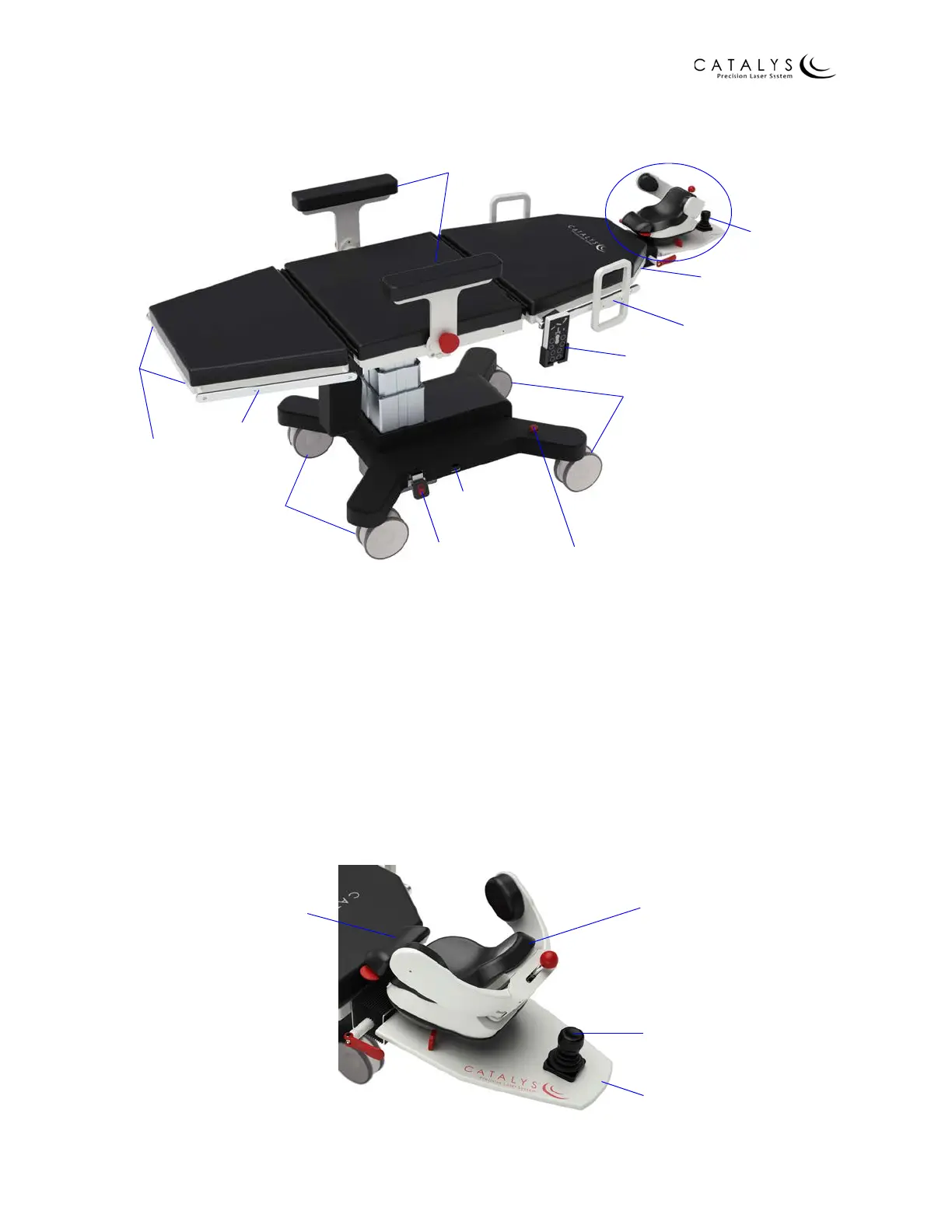

Figure 1.1 Mobile Patient Bed Components
Headrest Assembly
The articulating headrest assembly includes the headrest frame, headrest, neck support, and
joystick control. The headrest frame length and angle are manually adjustable for patient
comfort. The headrest frame can also be manually released in case of power loss to the Mobile
Patient Bed.
The headrest and neck support position and support the patient’s head and neck. The headrest
features a head clamp to stabilize the patient’s head. Various manual adjustments are available
for proper head and neck positioning. Refer to Adjusting the Headrest Assembly on page 250 for
instructions on adjusting the headrest frame, headrest, and neck support.
Figure 1.2 Headrest Assembly
Headrest
assembly
Control pendant and holster
Lock foot
pedal
Emergency
stop button
Back casters
Front casters
AC power
connection
Armrests
Footrest
Backrest
Seat
Base
DIN rail
Joystick
control
Auxiliary
lock buttons
Column
DIN rail
Auxiliary lock
button
Neck support
Headrest frame
Headrest
Joystick control
