Capture Panel
After the system detects that the Mobile Patient Bed has been disconnected from the CATALYS®
System or the patient chair has been unlatched, the Capture panel opens. As instructed in the
panel, release and dispose of the suction ring.
NOTE
Refer to Removing the Suction Ring and Disposable Lens on page 204 for detailed instructions.

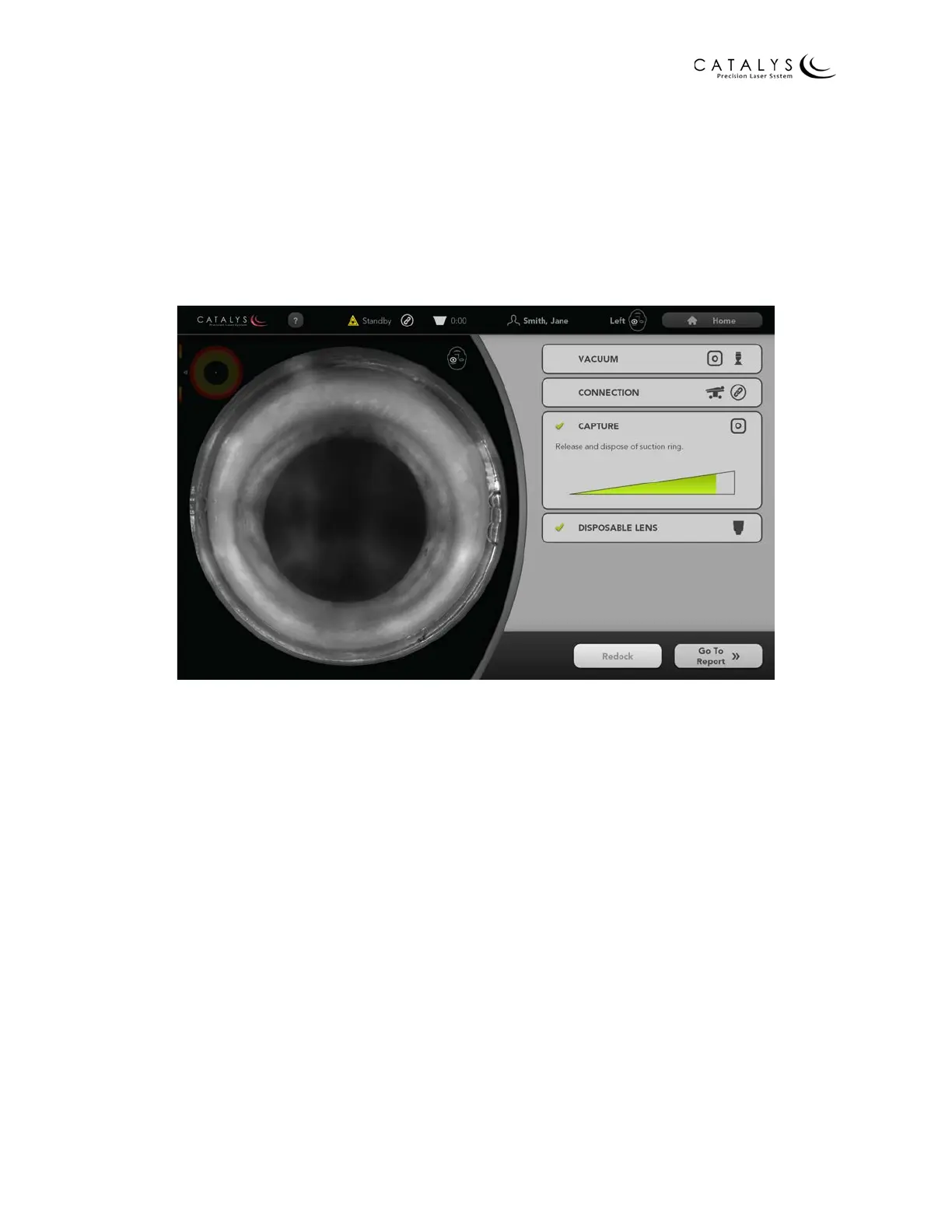

Figure 3.117 Undocking Screen with Capture Panel Open
