Latch Panel (patient chair only)
After the system verifies that the patient vacuum has been released and the patient chair
lowered, the Latch panel opens. As instructed in the panel, unlatch the patient chair using the
chair’s foot-activated chair latching lever located at the chair base.
NOTE
Systems manufactured prior to May 2013 do not have the Latch panel.

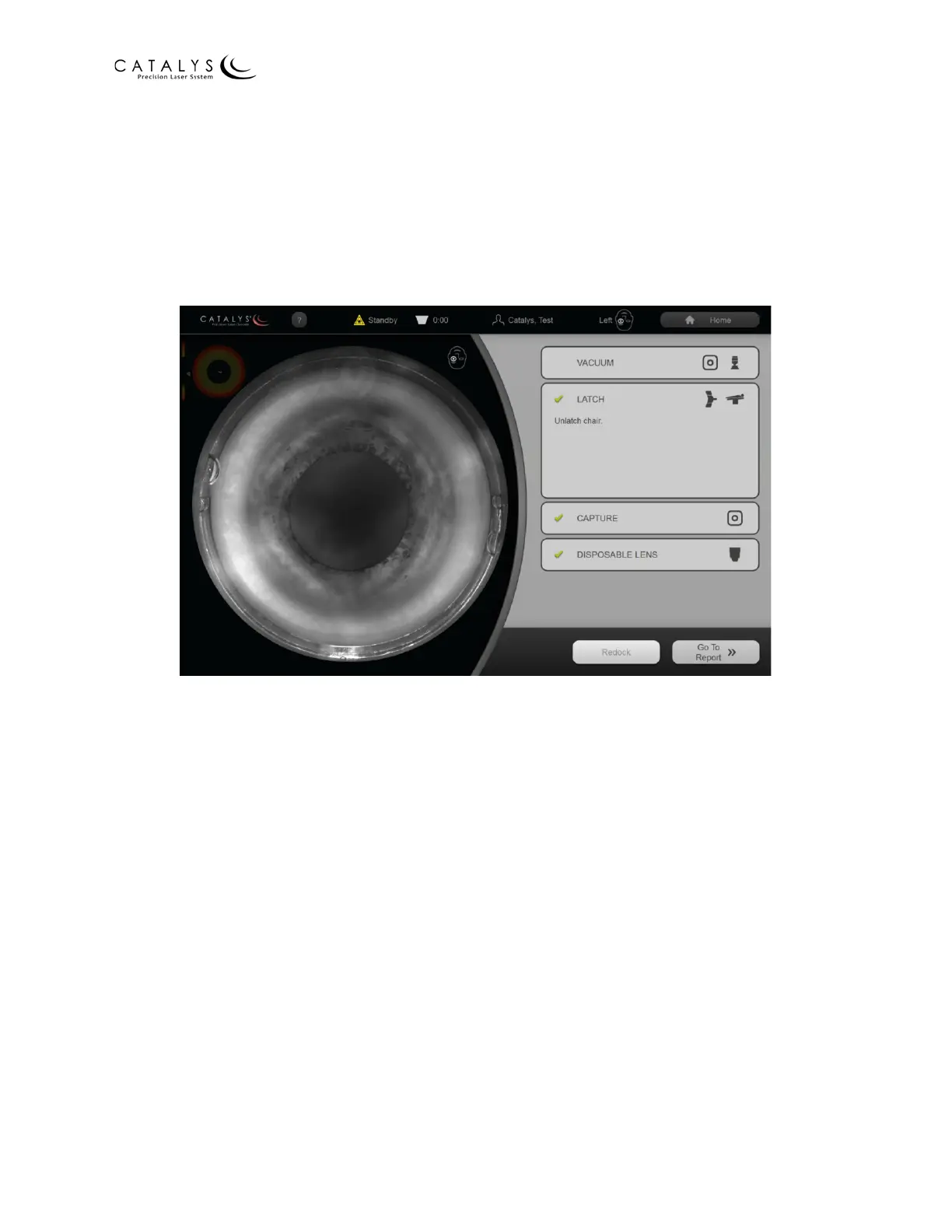

Figure 3.116 Undocking Screen with Latch Panel Open
