Chapter 4 CATALYS® System Procedure
Part Number: 0160-6411, Rev A, 02/2019 Page 165 of 314
Software Release: cOS 5.00

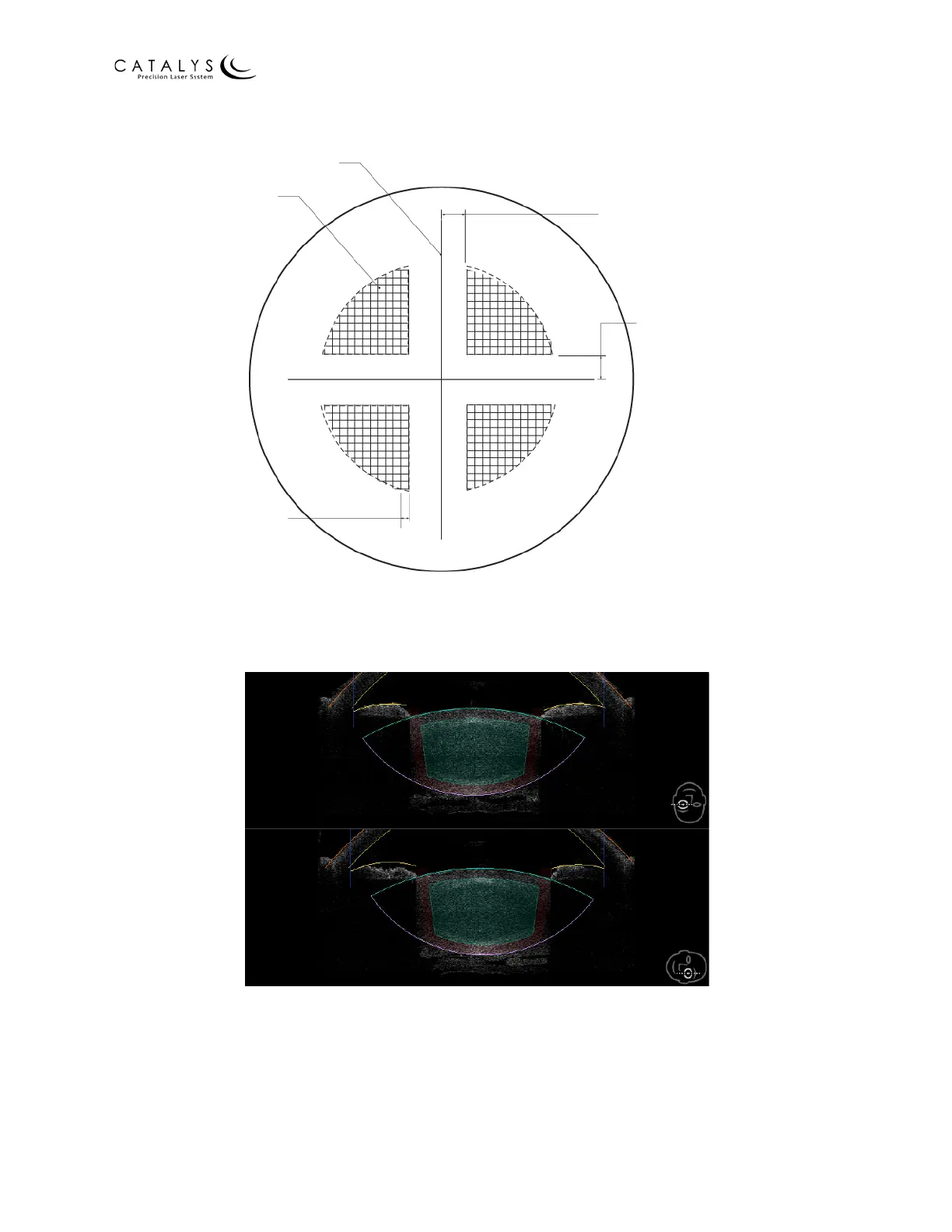

Figure 4.3 Lens Fragmentation Patterns
SEG/SOFT denotes distance between segmentation and softening. Incremental spacing is
available for each parameter, as shown.
Figure 4.4 Iris Safety Margins for Lens Fragmentation – Axial and Sagittal Views
Iris Safety Margin: axial (top) and sagittal (bottom) cross‐sectional views depict the slope of the
500 µm iris safety margin (shown in red) within the crystalline lens during lens fragmentation.
Segmentation
Softening
Grid Spacing
100 - 2000 µm
SEG/SOFT Spacing
100 - 1500 µm
SEG/SOFT Spacing
100 - 1500 µm
To Next Page
