Chapter 2 System Overview
Part Number: 0160-6411, Rev A, 02/2019 Page 23 of 314
Software Release: cOS 5.00

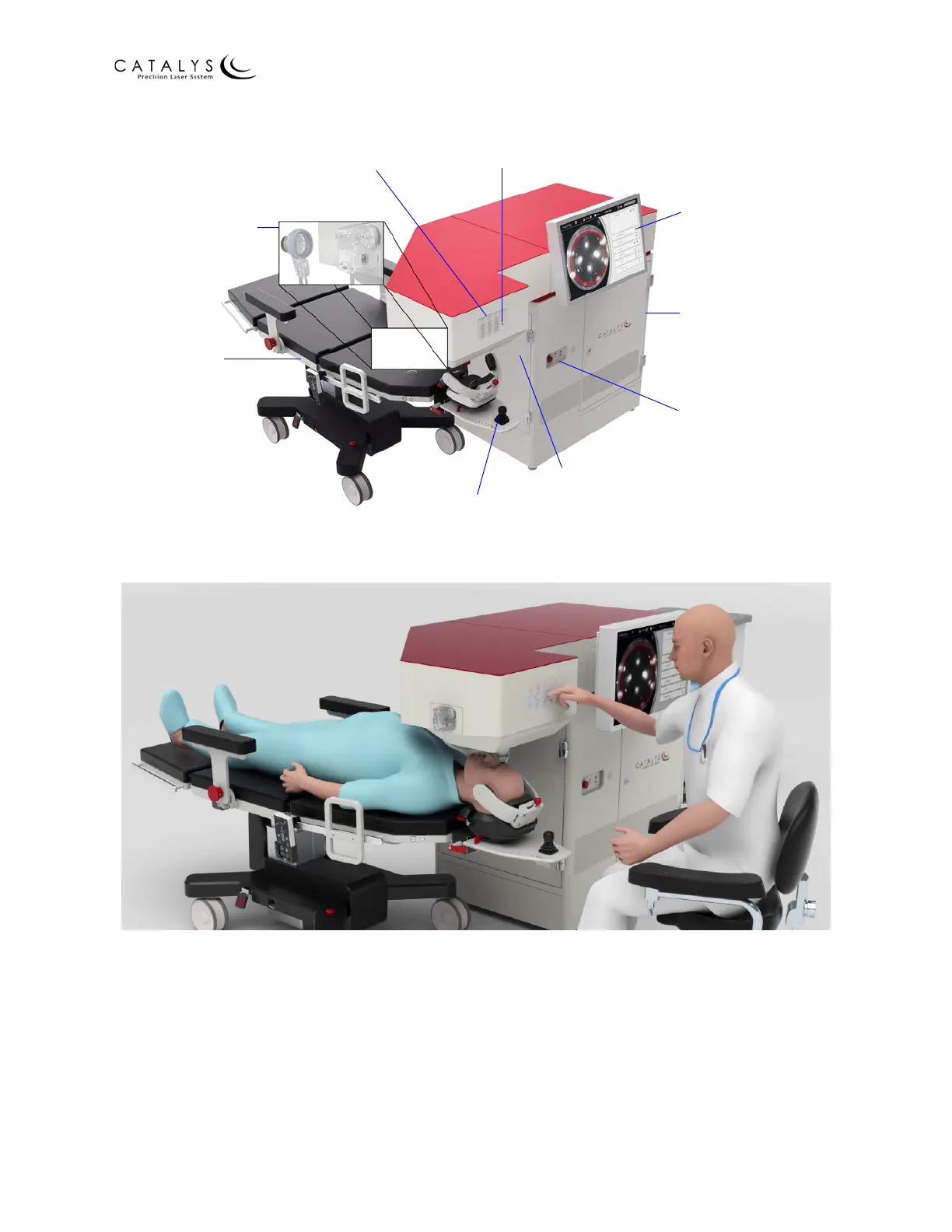

Figure 2.1 CATALYS® System Components
Figure 2.2 CATALYS® System with Physician and Patient
NOTE
Subsystems including the treatment laser, Optical Coherence Tomography, video, and elements
of the monitoring and controls are contained within the system enclosure and are not accessible
to the user.
Touchscreen Control Panel -
Graphical User Interface
(GUI)
Laser Emission Indicator
Docking Control
Keypad
Mobile Patient Bed
with Headrest
Joystick Control
On System Rear Panel:
Network, Video Output,
Footswitch, Door Interlock,
and AC Power Connections
LIQUID OPTICS™ Interface
Circular Label Reader
Emergency Laser Stop
Button, Key Switch, and
USB Data Ports
LIQUID OPTICS™ Interface
Vacuum Connections
