Chapter 2 System Overview
Page 50 of 314 Part Number: 0160-6411, Rev A, 02/2019
Software Release: cOS 5.00

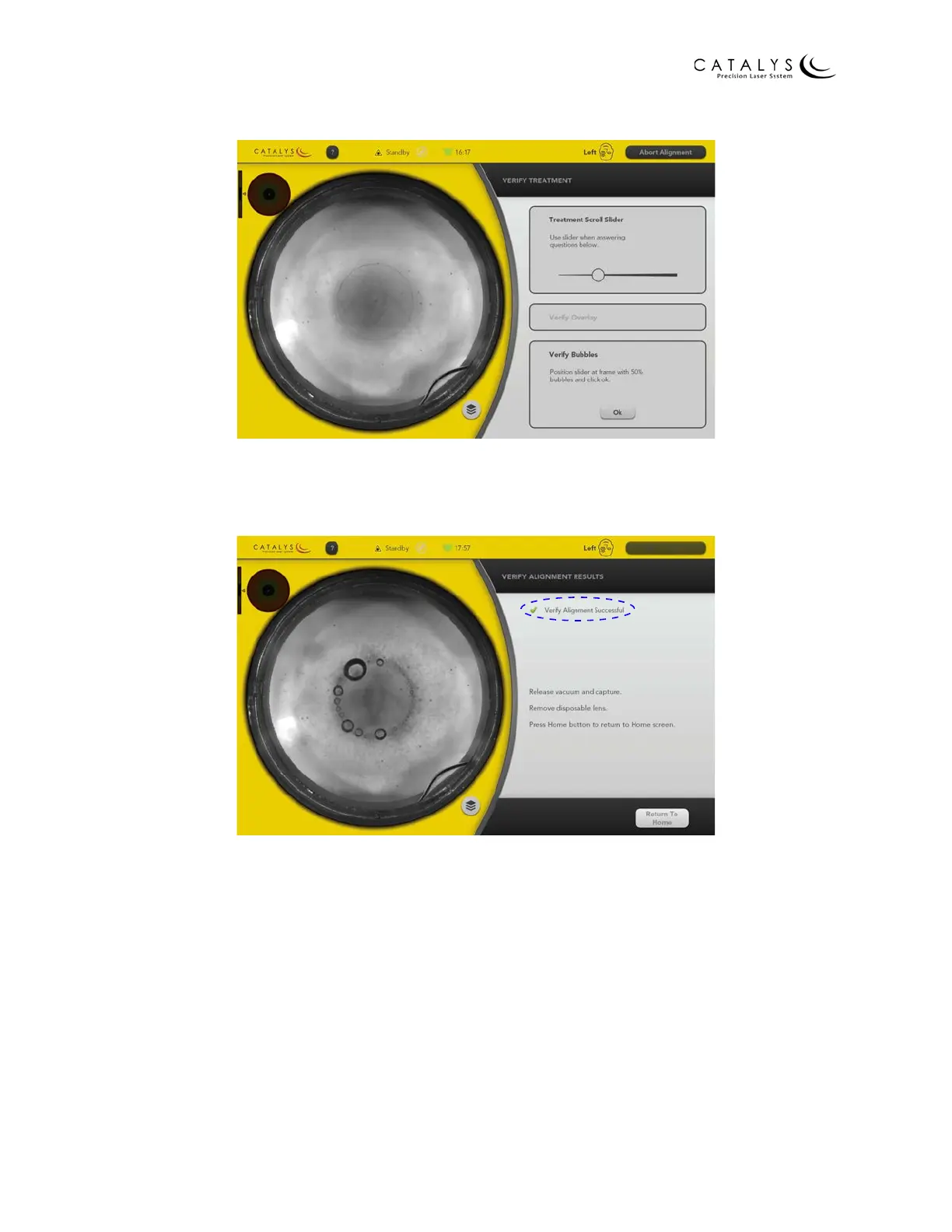

Figure 2.26 Image with Too Few Bubbles
16. If system alignment is acceptable, “Verify Alignment Successful” displays on the Verify
Alignment Results Screen.
Figure 2.27 Verify Alignment Successful
17. If system alignment is unacceptable, “Verify Alignment Failed” displays on the Verify
Alignment Results Screen. Contact OPTIMEDICA Service for assistance.
