5 Serial Ports
5 – 22
SCLK
TFS
DT
B3 B3B0B1B2 B1 B0 B3B2 B2
SCLK
TFS
DT
B3 B3B0B1B2 B1 B0 B3B2 B2
Figures 5.14 and 5.15 show the receive operation with normal framing and
alternate framing, respectively, in the unframed mode. There is a single
the frame sync signal that occurs only at the start of the first word, either
one SCLK before the first bit (normal) or at the same time as the first bit
(alternate). This mode is appropriate for multiword bursts (continuous
reception).
SPORT Control Register:
Internal Frame Sync 0XXX 0
01X 0XXX 0011
External Frame Sync 0XXX 0
00X 0XXX 0011

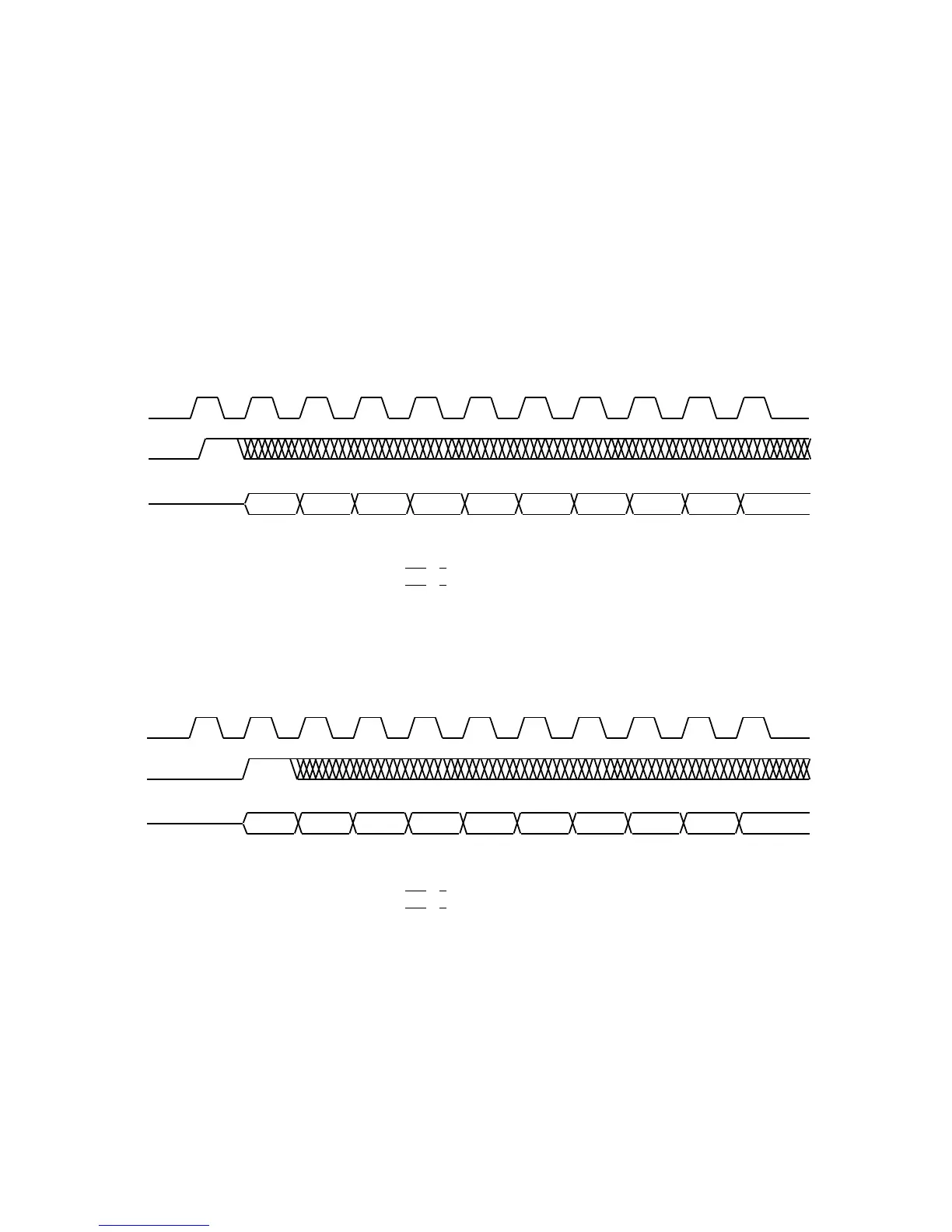

Figure 5.20 SPORT Transmit, Unframed Mode, Normal Framing
SPORT Control Register:
Internal Frame Sync 0XXX 011X 0XXX 0011
External Frame Sync 0XXX 010X 0XXX 0011
Note: There is an asynchronous delay between TFS input and DT. See the appropriate
data sheet for specifications.
Figure 5.21 SPORT Transmit, Unframed Mode, Alternate Framing
