Cell holder
Notes for users
8 Edition 09/2014 SPECORD S600 accessories
1. Place the universal holder onto the support rods. The adapter plate points in
most cases to the lamp housing.
2. Press the base plate down.
The universal holder engages with a click and is attached onto the
support rods.
3. After inserting and positioning the universal holder slide the cell or solid
sample holder onto the adapter plate.
1.5 Converting the sample chamber
Converting the support rods
The accessories require two different installation heights in the sample chamber.
The support rods must be converted accordingly.
1. Unscrew the support rods (rotate counterclockwise). Slide the support rod
forward and remove it from the sample chamber.
2. Insert the support rod into the bottom (or top) aperture in the sample
chamber wall. Place the support rod into the holder at the other sample
chamber wall and screw it back (rotate clockwise).
3. Repeat with the remaining support rod.

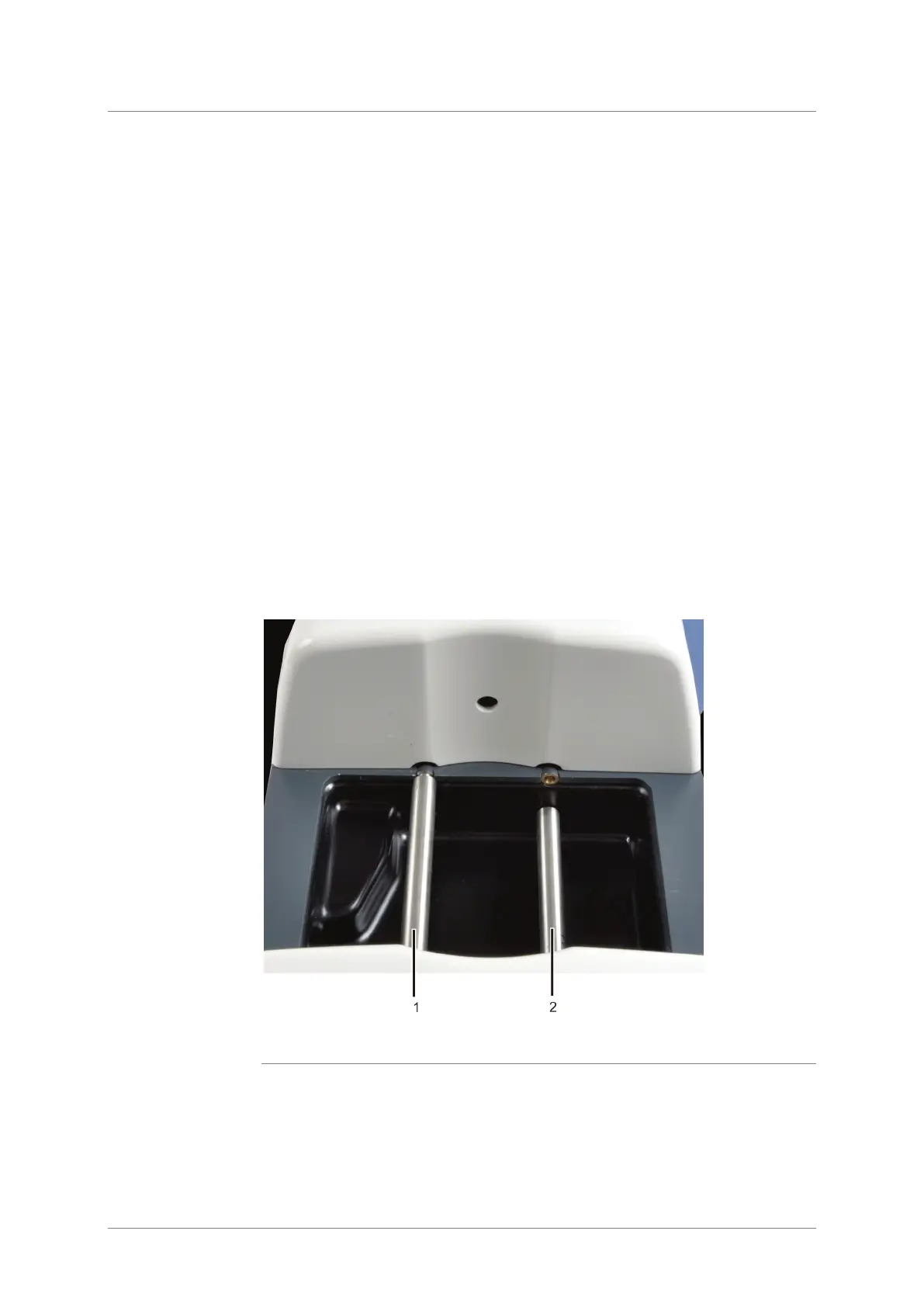

1 Support rods in the top position
2 Support rods in the bottom position
Fig. 1-4 Positions of the support rods in the sample chamber
