Peltier-tempered accessories
Temperature control unit for Peltier-tempered accessories
62 Edition 09/2014 SPECORD S600 accessories
If the Peltier-tempered accessory is operated without heat exchanger or with the
heat exchanger switched off, cooling is electronically suppressed, but heating is
possible. At constant ambient temperature and with a set point setting of
approx. 5 °C above the sample chamber temperature the specified target
values can with increased control cycles be maintained with an accuracy of
0.10.2 °C. However, the control accuracies specified in the sections
"Technical Data" relate to operation with heat exchanger.
Configuring the start temperature at the temperature control unit
At the control unit set the start temperature to be activated after switching on
the control unit. The other temperature configurations are made after starting a
measurement in accordance with the stipulations in the measuring parameters
of WinASPECT.
1 Block temperature display
2 Arrow keys to change the temperature
setting
3 EXIT key
4 PGM key
5 Temperature display for holder or cell
The numbers 1 5 are status indications of the
controller and only relevant for service.

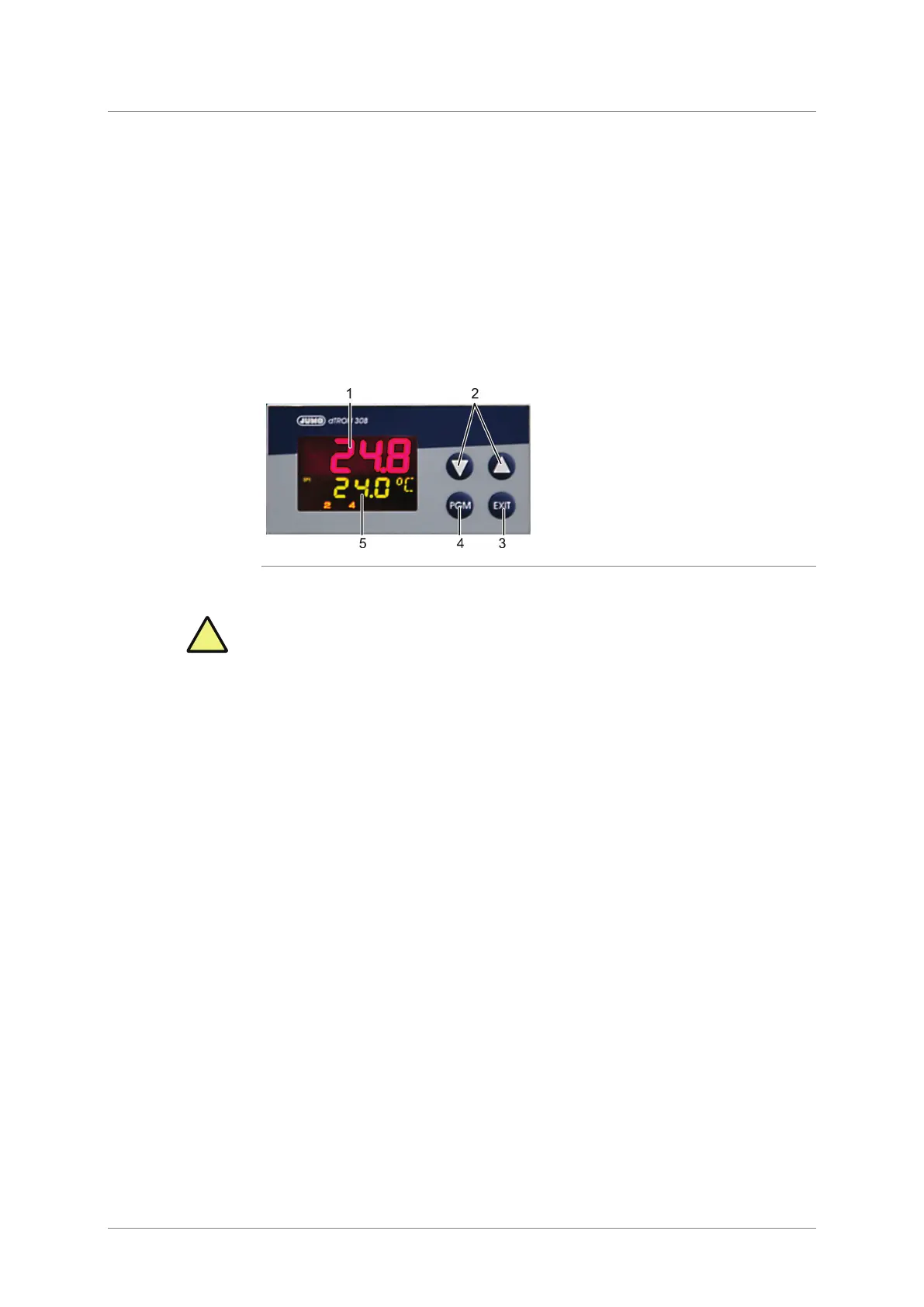

Fig. 15-20 Display and keys for temperature adjustment at the control unit
Caution!
When specifying the target temperature note that this always relates to the
block temperature Dependent on the sample temperature, the type of cells
used and the type and quantity of sample material different final values of the
inside cell temperature and time periods until they are reached will result (Fig.
15-21).
1. Press the PGM key until "SP 1" appears in the display for the holder or cell
temperature and then press it again until "SP 1" flashes.
2. Set the target temperature using the arrow keys.
3. Confirm the target temperature by pressing the PGM key. After a few
seconds the set value will automatically be accepted.
4. Exit the entry level by pressing the EXIT key twice.
Alternatively you can change the temperature directly using the arrow keys:
5. Press one of the two arrow keys until the setting for the block temperature
changes.
6. Set the target temperature using the arrow keys.
7. Wait a few seconds until the values are automatically accepted.
