Cell changer
Cell carousel
32 Edition 09/2014 SPECORD S600 accessories
6. Place the cell plate onto the drive unit. Rotate the sample plate until it
engages in the groove.
7. Screw the sample plate onto the drive unit using the knurled head screw
supplied.
8. Switch on the SPECORD S600 and start WinASPECT.
9. Open the measuring parameter window via the menu command
Measurement / Set Parameters or by clicking on in the toolbar.
10. Go to the tab Accessories. Select Cell carousel from the list box.

The cell carousel is now fully mounted and ready for measurements.

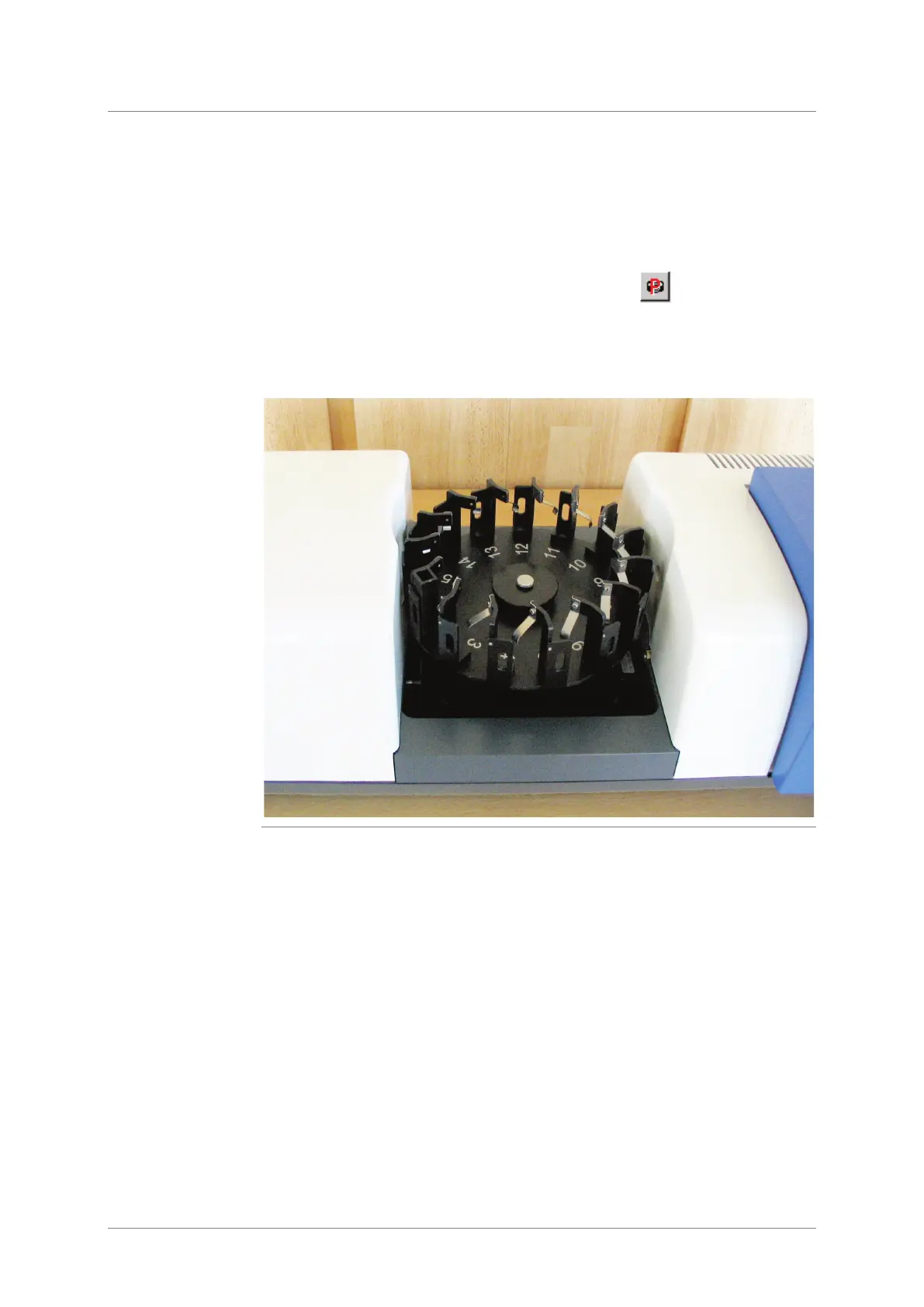

Fig. 13-2 Cell carousel fully mounted
Measurements with the cell carousel
The measuring parameter configurations and various operating modes are
identical for all cell changers available for the SPECORD S600. A detailed
description is available in chapters "Configuring parameters for the cell
changer" p. 33 and "Carrying out measurements with the cell changer " p. 34.
