Cell holder
Cell holder, 50 mm, thermostated
SPECORD S600 accessories Edition 09/2014 15
5 Cell holder, 50 mm, thermostated
In this cell holder temperature control is via a liquid thermostat.
The cell holders are designed for standard cells with the following dimensions:
Path length: up to 50 mm
Cell width: 12.5 mm
Minimum filling height 20 mm
Radiation height 5 – 15 mm
Temperature range: up to 100 °C
Inside hose diameter: 4 mm
Outside hose diameter: 6 mm
Layout
2 Contact surface for cells
3 Cell adapter with leaf spring
4, 5 Tube couplings for temperature control

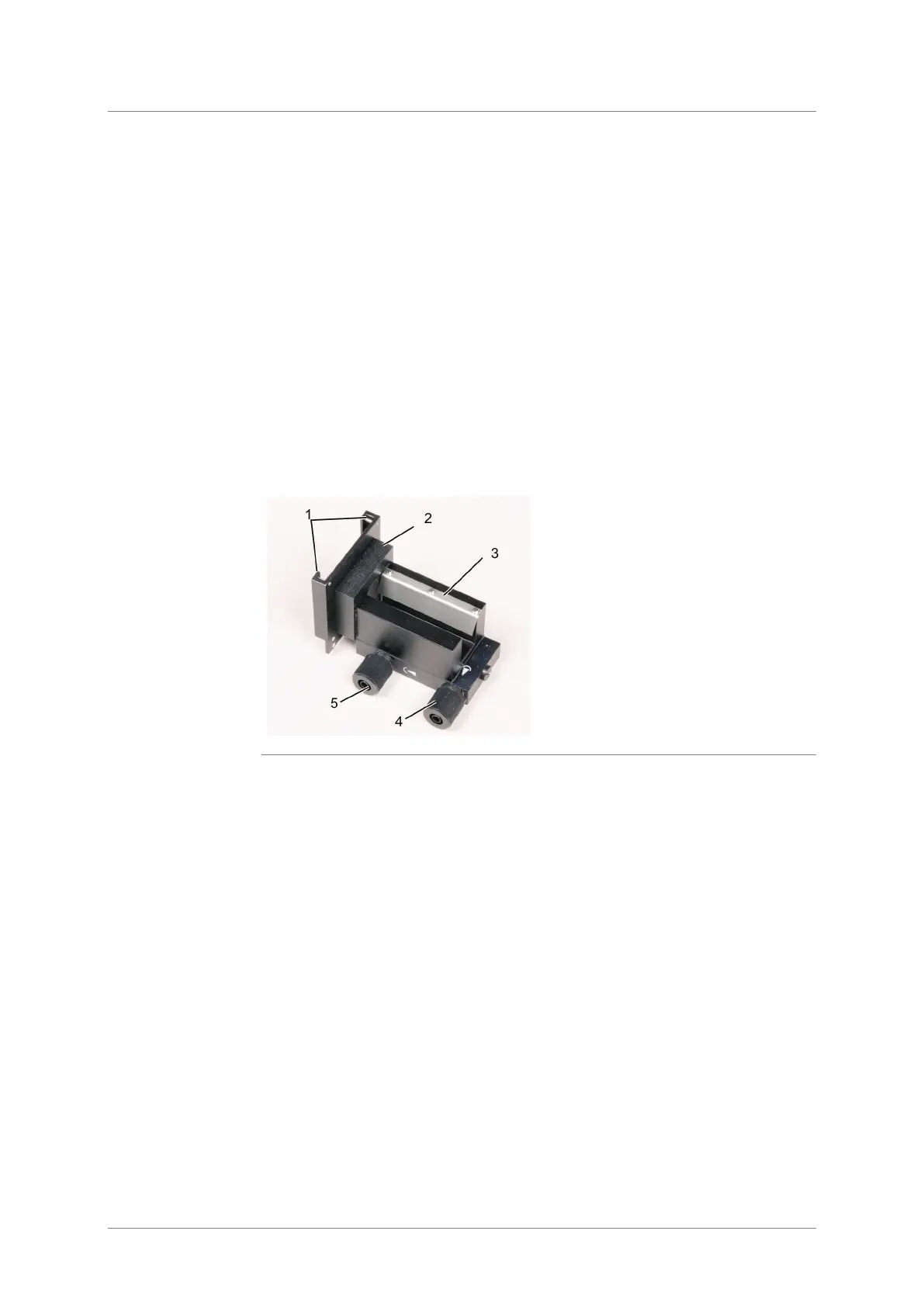

Fig. 5-1 Thermostated cell holder, 50 or 100
Installing the thermostated cell holder in the sample chamber
1. Using the thermostating tubes, connect the inlet and outlet connectors (4, 5
in Fig. 5-1) of the thermostated cell holder to the external fluid thermostat.
2. Slide the cell holder with the guide from above onto the adapter plate of the
universal holder.
Inserting the cell
1. Fill the cell with your sample at least 20 mm high.
2. Insert the cell tight against the contact surface of the cell holder. The optical
surfaces of the cell (bare surfaces) are vertical to the measuring or
reference channel and are radiated. (→ section "Standard cell holder, 50
mm"; "Inserting the cell correctly").
