Peltier-tempered accessories
Peltier tempered 6- and 8-cell changers
56 Edition 09/2014 SPECORD S600 accessories

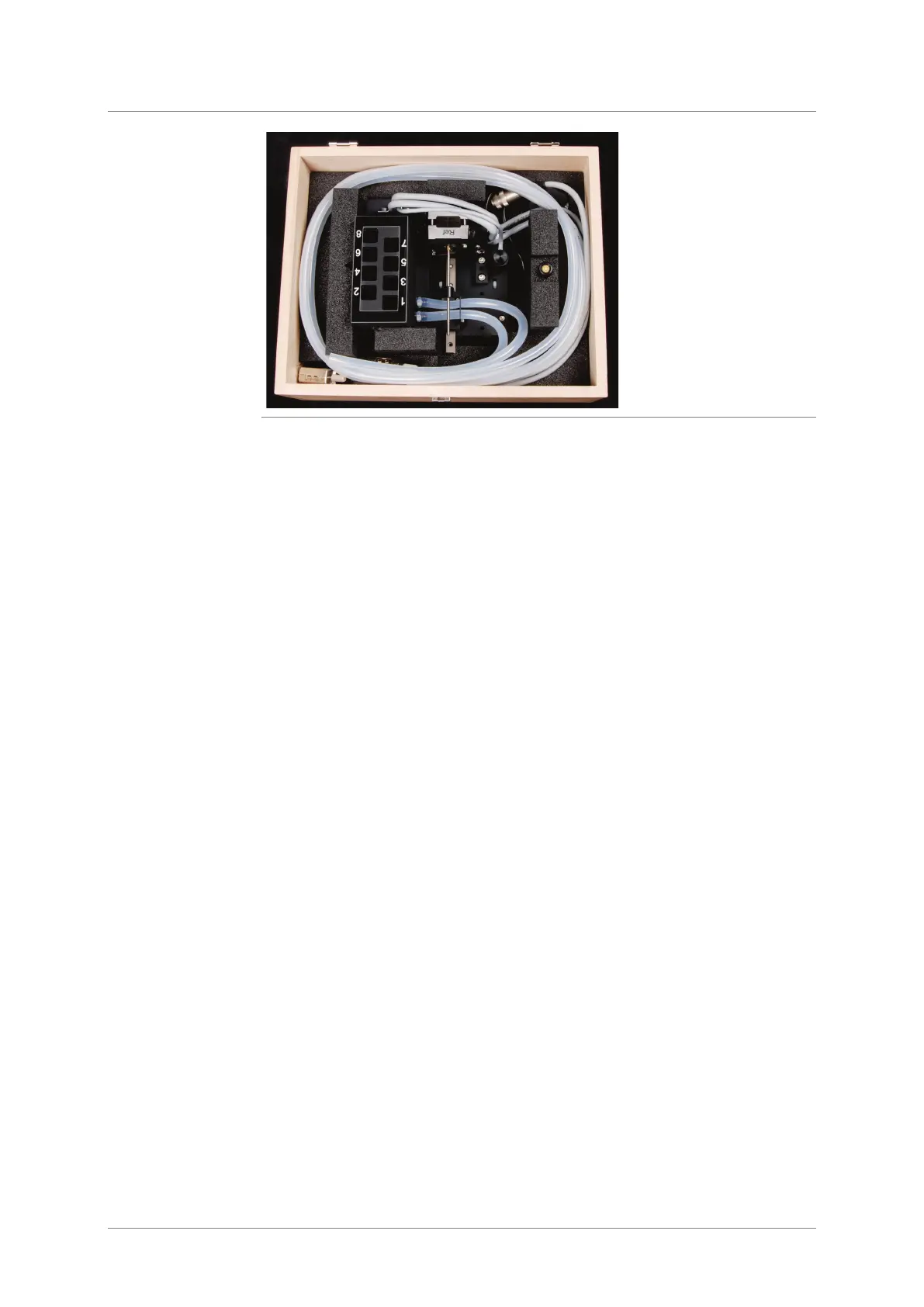

Fig. 15-13 Peltier-tempered 8-cell changer in the storage container
15.4.3 Carrying out measurements with Peltier-tempered cell
changers
The measuring parameter configurations and various operating modes are
identical for all cell changers available for the SPECORD S600. A detailed
description is available in chapters "Configuring parameters for the cell
changer" p. 33 and "Carrying out measurements with the cell changer " p. 34.
The temperature control also takes place via the software WinASPECT. The
block temperature configured in the temperature control unit is activated as start
temperature after switching on the control unit (→ see section "Temperature
control unit for Peltier-tempered accessories" p. 60). After starting the
measurement all subsequent temperature settings match the presets in the
measuring parameters of WinASPECT.
Switch on the SPECORD S600 and start WinASPECT. Open the measuring
parameter window via the menu command Measurement / Set Parameters or
by clicking on the corresponding icon in the toolbar.
Go to the tab Accessories. Select 6 or 8-cell changer from the list box. Also
activate Peltier temperature-controlled. Click on the Setup button to make
inputs.
