Automation
Cartridge sipper system
SPECORD S600 accessories Edition 09/2014 69
1 Flow cell
2 Tygon hose with Viton seal
3 PTFE sample intake hose
4 Pump hose
5 Hose coupling
6 Piece of drainage hose

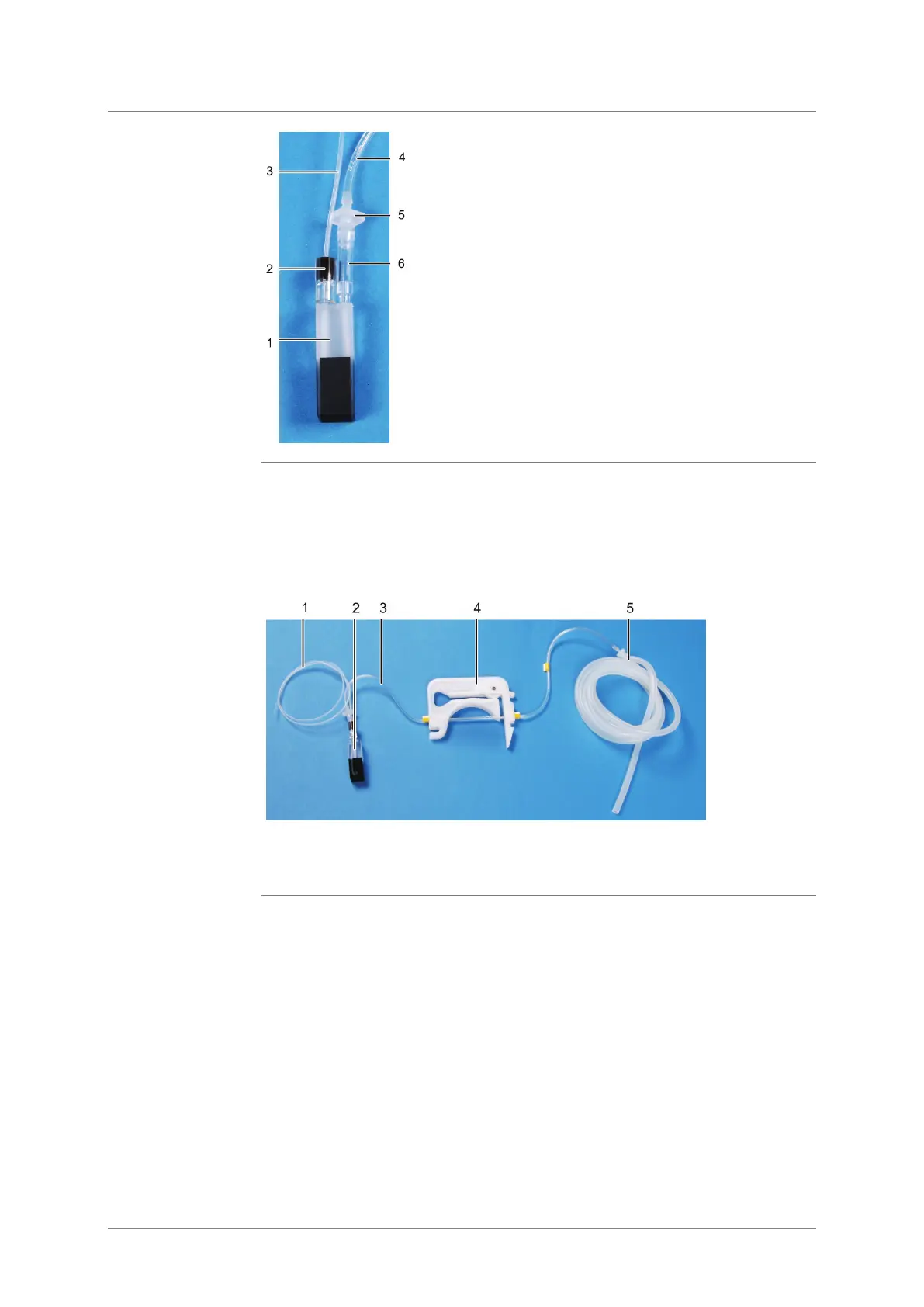

Fig. 16-2 Flow cell with connected sample intake hose and pump hose
4. Connect the pump hose at the other end to the drainage hose using a hose
coupling.
5. Clamp the pump hose between the first and second stopper into the hose
cartridge.
1 Sample tube
2 Flow cell
3 Pump hose
4 Hose cartridge
5 Drainage hose
Fig. 16-3 Complete hose kit for the cartridge sipper system
6. Insert the slider with the leaf spring (10 in Fig. 16-1) at the location
corresponding to the cell path length.
7. Place the cell into the holder. The drainage connection points towards the
pump.
8. Attach the hose cartridge to the pump head (Fig. 16-1).
9. Press the pump hose to the pump head with the eccentric lever (4 in Fig.
16-1) so that it is fully squeezed.
10. Hook the drainage hose into a suitable collection container.
11. Place the cartridge sipper system onto the support rods so that the cell
holder points forward towards the lamp housing.
