Cell holder
Holder for cylindrical cells
22 Edition 09/2014 SPECORD S600 accessories
9 Holder for cylindrical cells
This holder is used to accept cylindrical cells. It is available in two designs for
cells up to 50 mm and 100 mm path length. The holder is designed for cells with
the following dimensions:
Path length:
Up to 50 or 100 mm
Cell diameter:
22 mm
Layout
1 Support rods
2 Guides

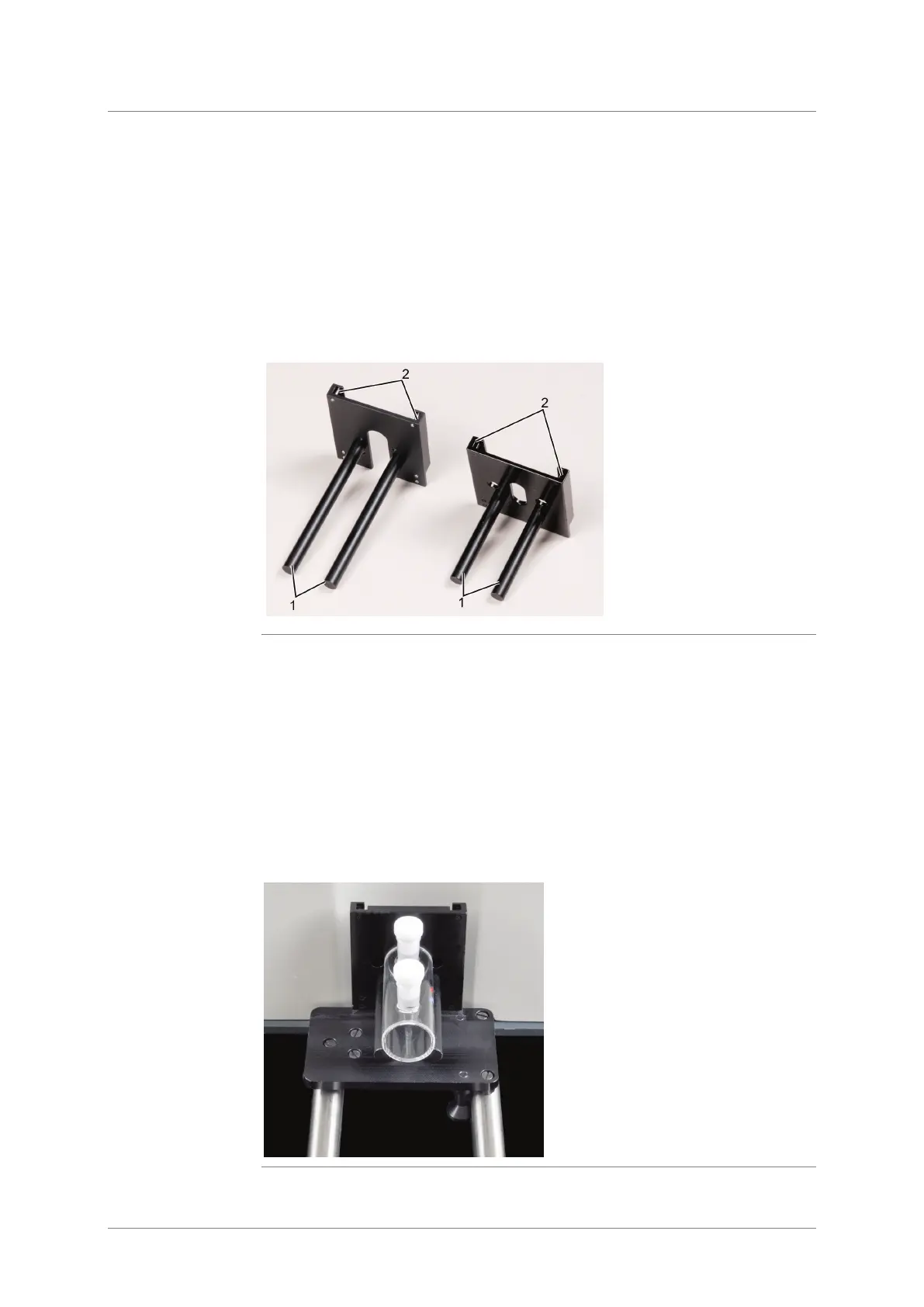

Fig. 9-1 Holder for cylindrical cells
Installing the cell holder in SPECORD
 Slide the cell holder onto the adapter plate of the universal holder.
Inserting the cylindrical cell
1. Fill the cell with the sample.
2. Place the cell onto the support rods.
3. Slide the cell against the stop plate of the cell holder.
Fig. 9-2 Holder for cylindrical cells installed
