Analysis of solid samples
Reflection measuring attachment 11° - 60°
SPECORD S600 accessories Edition 09/2014 81
2, 4 Quartz lenses
3 Deflection mirror
5 Plane mirror
A Beam inlet
B Beam outlet

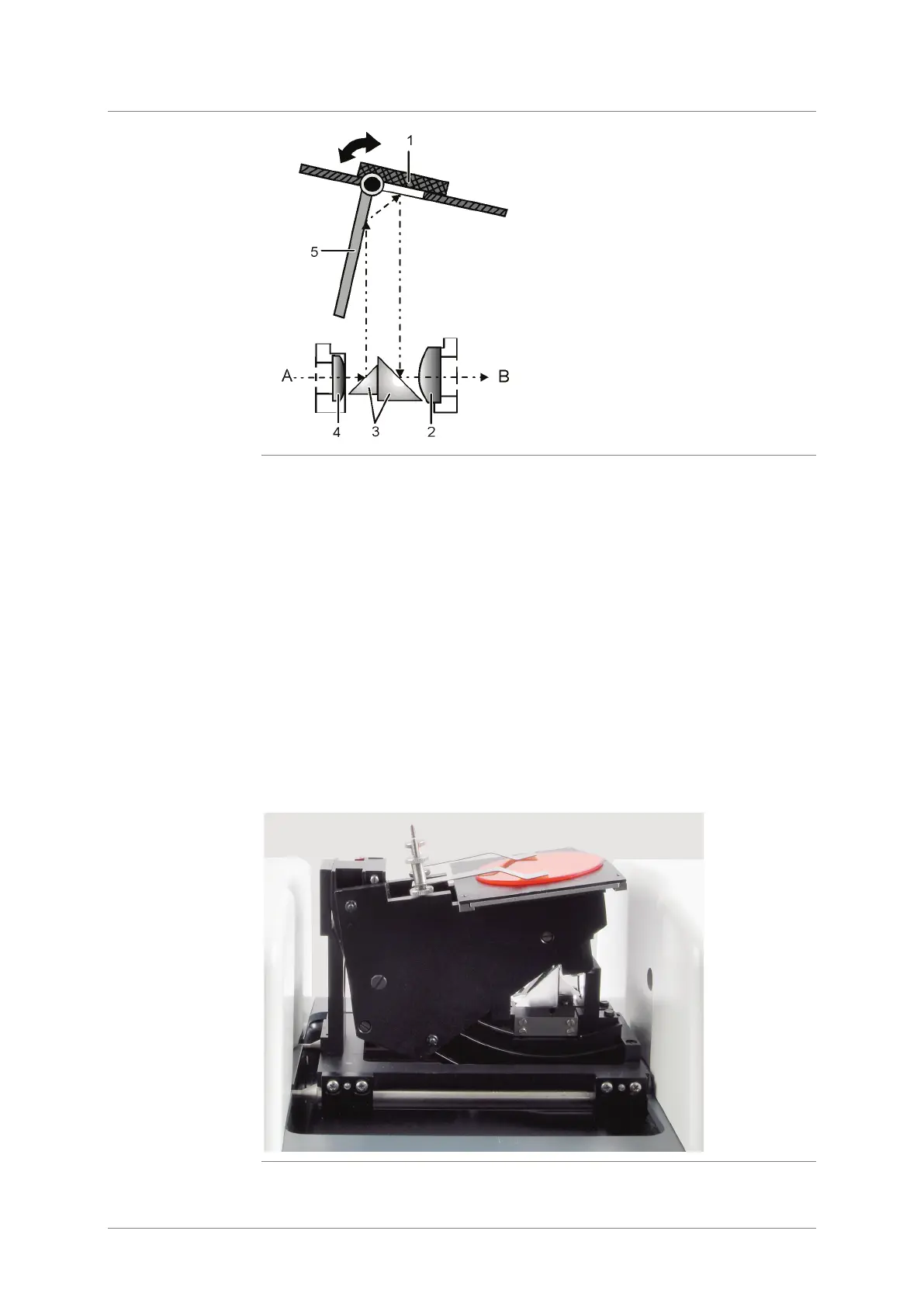

Fig. 19-3 Beam path in the reflection measuring attachment (viewed from the
front)
Installing the reflection measuring attachment in the sample chamber
1. Screw the support rods in the sample chamber into the top position (→
section "Converting the sample chamber" p. 7).
2. Place the attachment onto the support rods. The table for samples points to
the lamp housing. Slide the attachment against the front sample chamber
wall.
3. With clamping lever:
Move the clamping lever.
Without clamping lever:
Press down the base plate of the cell holder until it engages on the support
rods with a click.
The attachment is installed in the SPECORD S600.
Fig. 19-4 Reflection measuring attachment installed in the sample chamber
