Analysis of light-scattering samples
Integrating sphere
90 Edition 09/2014 SPECORD S600 accessories
3. Put the control unit onto the support rods in the sample chamber so that the
photodiode (3 in Fig. 20-6) faces the polychromator of the SPECORD S600.
This unit controls the shutter (1 in Fig. 20-6) synchronously with the shutter
in the source unit of the SPECORD S600. Tighten the adjusting screw (2 in
Fig. 20-6) just so far that the control unit is seated without play in the
sample compartment.
2 Adjusting screw
4 Lamp housing

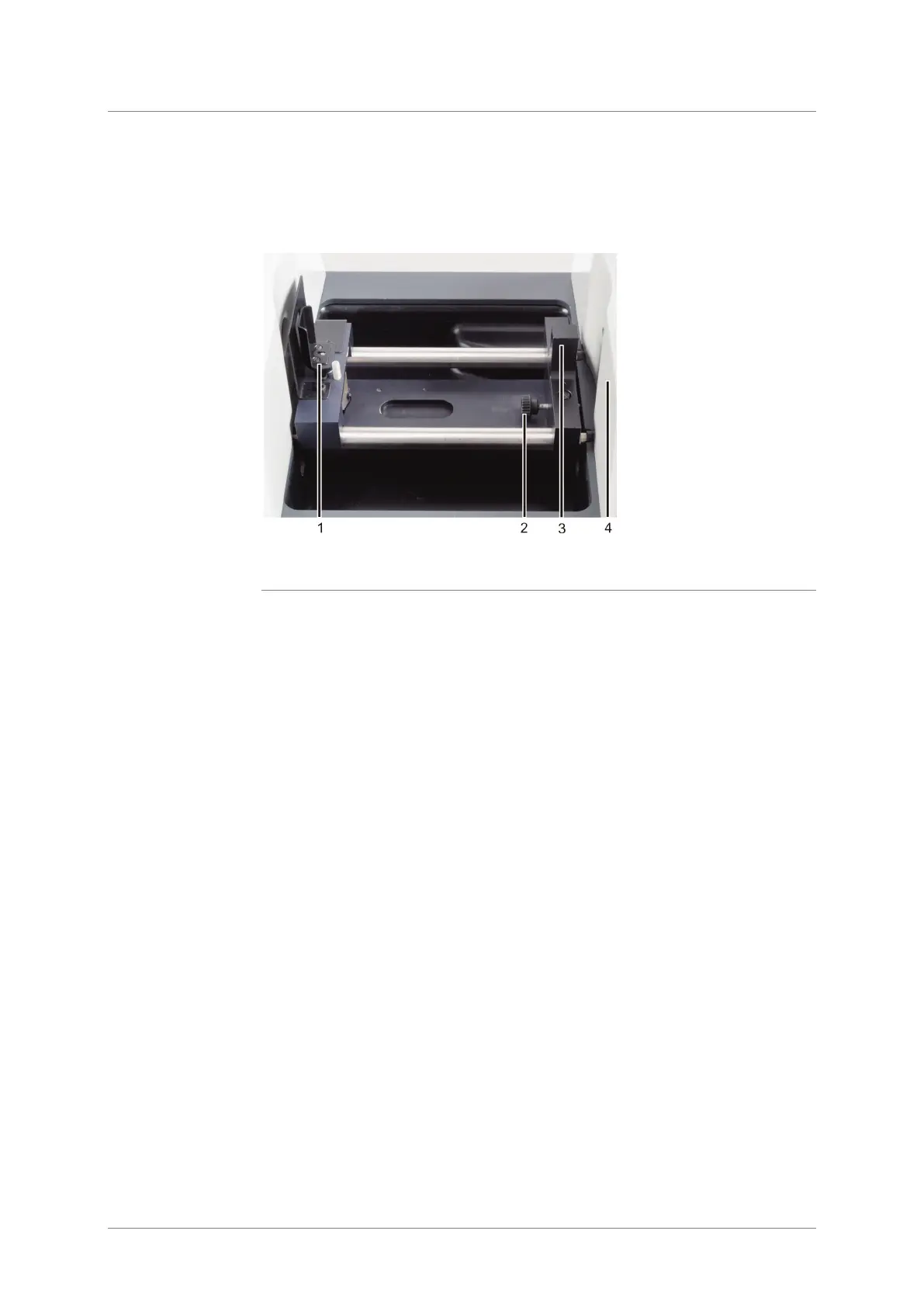

Fig. 20-6 Control unit installed in the SPECORD S600
4. Put the sphere body onto the support rods with its beam exit aperture (1 in
Fig. 20-7) facing the polychromator. Then, push it to the right to the control
unit as far as it will go. The mechanical stop ensures a reproducible
installation position.
5. To start up the unit, establish the connection between sphere body and
control unit using cable (10 in Fig. 20-1) and the connection between
sphere body and transformer (1 in Fig. 20-1) using low-voltage cable (14 in
Fig. 20-1).
6. Connect the sphere body with the transformer via coupling (16 in Fig. 20-1).
7. Connect the power cable to the transformer and plug the power plug (2 in
Fig. 20-1) into the power outlet.
8. Actuate the switch (3 in Fig. 20-1) to turn on the lamp in the sphere body.
The lamp is cooled permanently by a fan with heat sink (13 in Fig. 20-1)).
