Cell changer
6-cell changer
SPECORD S600 accessories Edition 09/2014 25
1 Connection for magnetic stirrer (optional)
2 Control unit for magnetic stirrer (optional)
3 Step motor
4 Hoses for thermostat connection
(optional)
5 Interface cable to connect to SPECORD
S600
6 Base plate with guide rails
7 Stop bolt
8 Cell block with insulation

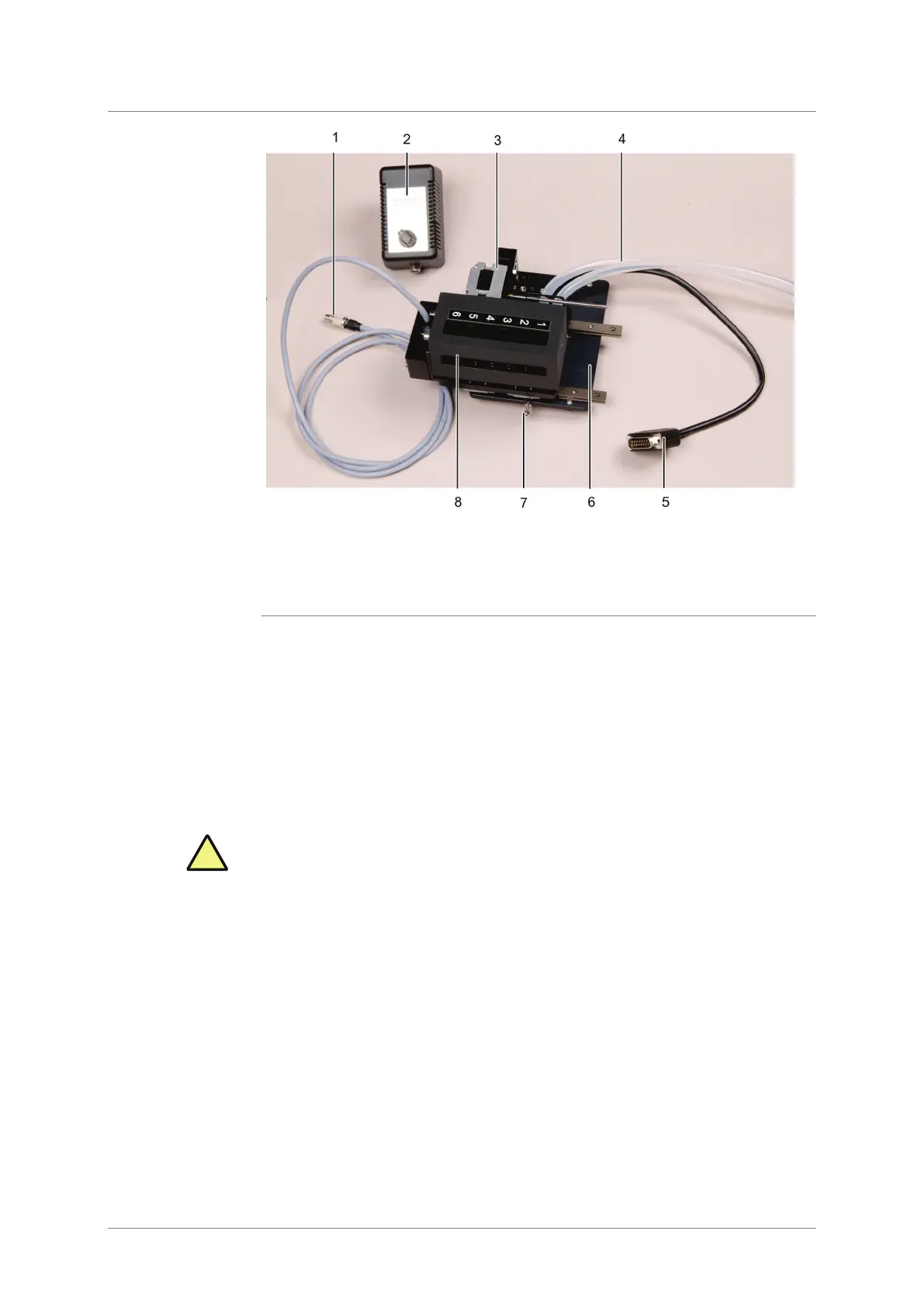

Fig. 11-2 6-cell changer, thermostated, with magnetic stirrer
11.1 Installing the 6-cell changer in the sample chamber
This section describes the installation of a thermostated 6-cell changer with
magnetic stirrer. If your cell changer does not feature the temperature control or
stirrer, skip the item in the description.
Caution! Laying the connection!
Lay the supply cables for the connections to SPECORD S600, the water
thermostats and the magnetic stirrer without them protruding into the beam
path in the sample chamber.
Lay the water hoses to the thermostats without tension! The cell block of the
cell changer must move freely.
