Cell holder, 10 mm, thermostated
14 Edition 09/2014 SPECORD S600 accessories

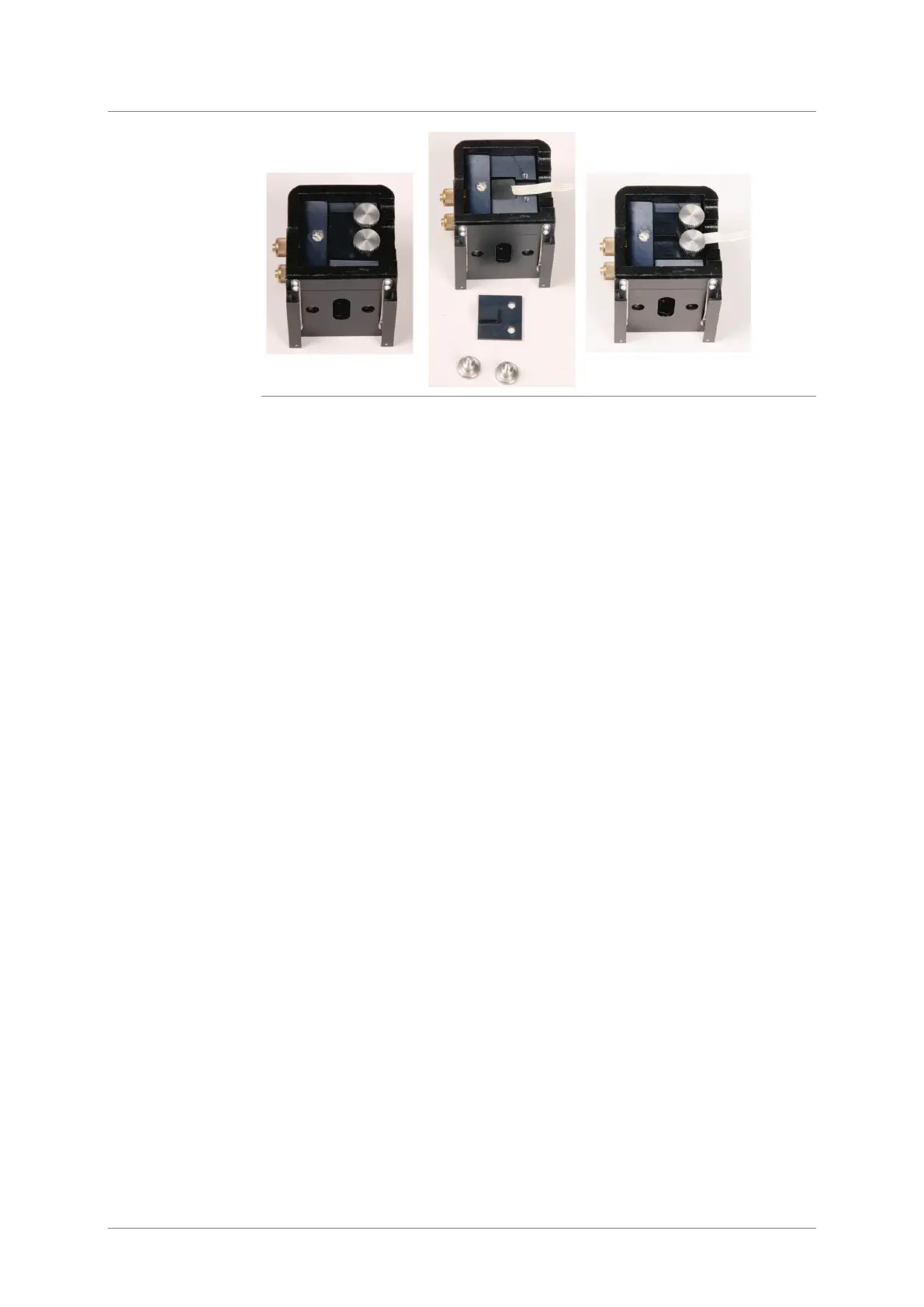

Fig. 4-2 Retrofitting the magnetic stirrer
Installing the thermostated cell holder in the sample chamber
1. Using the thermostating tubes, connect the inlet and outlet connectors (1 in
Fig. 4-1) of the thermostated cell holder to the external fluid thermostat.
2. Slide the cell holder with the guide from above onto the adapter plate of the
universal holder.
Inserting the cell
1. Fill the cell with your sample at least 20 mm high.
2. When using the magnetic stirrer:
Insert a magnetic rod into the cell and set the stirring frequency at the
control unit using the rotary knob.
3. Insert the cell into the aperture of the cell holder. The optical surfaces of the
cell (bare surfaces) are vertical to the measuring or reference channel and
are radiated.
