Peltier-tempered accessories
Peltier-tempered cell holder with external heat exchanger
SPECORD S600 accessories Edition 09/2014 49
Inserting the cell holder in the sample chamber

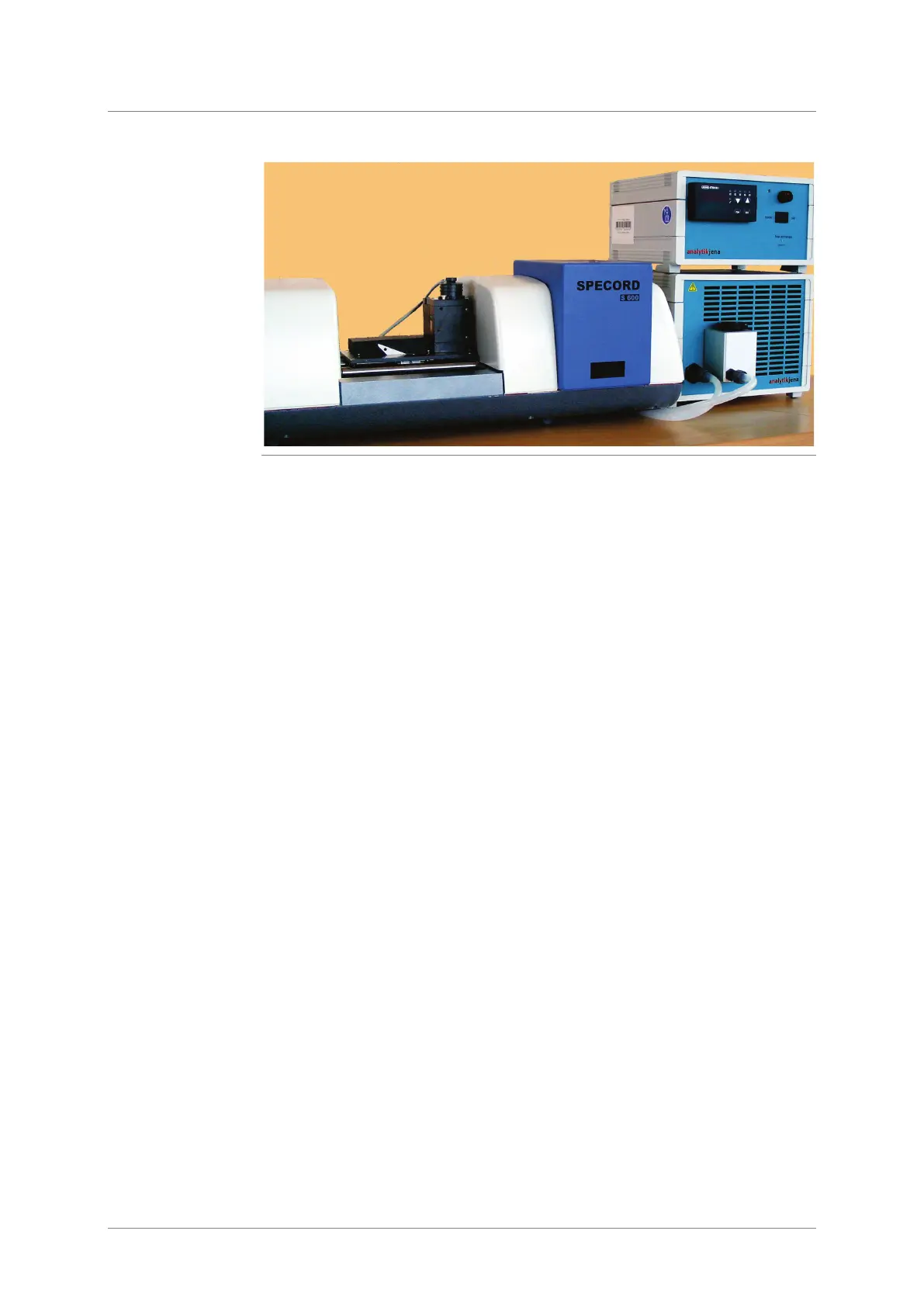

Fig. 15-9 Peltier-tempered cell holder installed in SPECORD S600
1. Screw the support rods in the sample chamber into the top position (→
section "Converting the sample chamber" p.8).
2. Plug the connector into the connection ACC I on the rear of SPECORD
S600.
3. Place the cell holder onto the support rods so that the cell block points
towards the lamp housing.
Slide the cell holder onto the front sample chamber wall until the contact pin
touches the sample chamber wall.
With clamping lever:
Lock the holder to the support rods by moving the clamping lever (2 in Fig.
15-9) to the back.
Without clamping lever:
Press down the base plate until the cell holder engages on the support rods
with a click.
4. Connect the hoses to the heat exchanger:
− Unscrew the knurled nuts from the connection pieces at the heat
exchanger and thread it onto the hoses.
− Slide the hoses onto the connection pieces.
− Screw the knurled nut onto the connection pieces and thereby secure
the hoses against slipping off.
5. Connect the connection cables to the temperature control unit and heat
exchanger (see section "Temperature control unit for Peltier-tempered
accessories" p. 60 and "Heat exchanger for Peltier-tempered accessories"
p. 64).
