Peltier-tempered accessories
Heat exchanger for Peltier-tempered accessories
64 Edition 09/2014 SPECORD S600 accessories
15.6 Heat exchanger for Peltier-tempered accessories
Technical data
Mass without refrigerant 3.2 kg
Dimensions (W x H x D)
225 x 175 x 200 mm
3
Mains voltage 220 - 240 V (-15% / +10%)
Frequency 50 Hz
Power consumption 50 VA
Mains fuses for WC 600 2 x T 0.5 AH / 250V, type 19181
by Wickmann
Mains fuses for WC 601 2 x T 1.6 AH / 250V, type 19181
by Wickmann
EMC (interference emission and
interference resistance) according to
DIN EN 61326 and 61326/A1
The device may be positioned and
operated anywhere.
Fire resistance of the heat exchanger
housing according to UL94
HB / 1.6
Protection type IP 20
Refrigerant approx. 0.4 l distilled water with 4
ml isopropanol added
maximum delivery height 1.2 m
Operating temperature range +15°C...+35°C
Transport and storage temperature
range
-40°C...+60°C
relative humidity up to 90% (at +30°C)

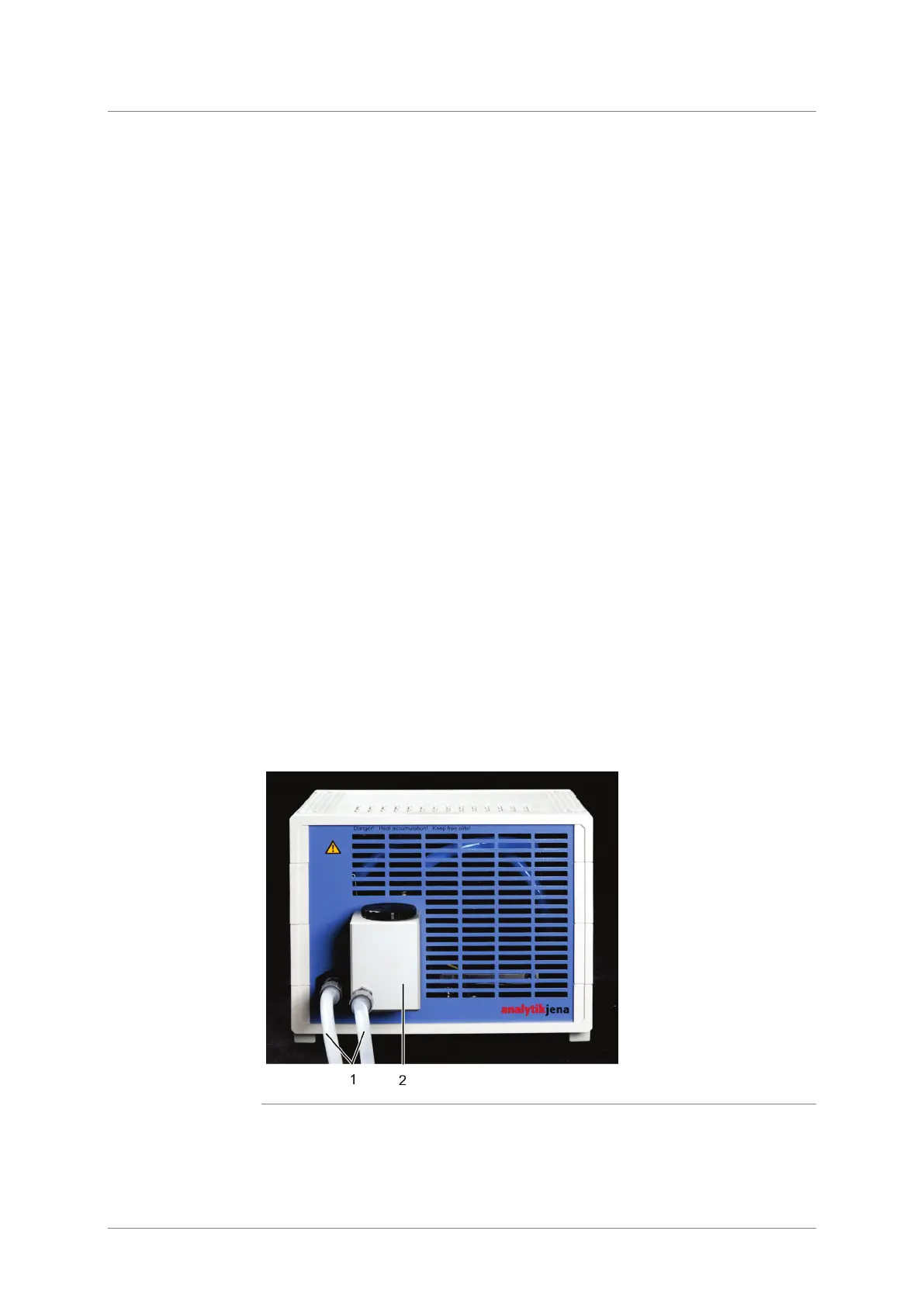

Layout of the heat exchanger
1 Cooling water hoses of
the Peltier-tempered
accessories
2 Compensation container
with cover
Fig. 15-22 Heat exchanger hose connections and compensation container
