Cell holder
Cell holder, 100 mm
12 Edition 09/2014 SPECORD S600 accessories
3 Cell holder, 100 mm
The cell holder is designed for standard cells with the following dimensions:
Path length:
1 – 100 mm
Cell width:
12.5 mm
The cells are radiated at a height of approx. 5 to 15 mm above the support level
of the cell holder.
Layout
1 Guide
2 Contact surface for cells
3 Cell adapter
4 Leaf springs

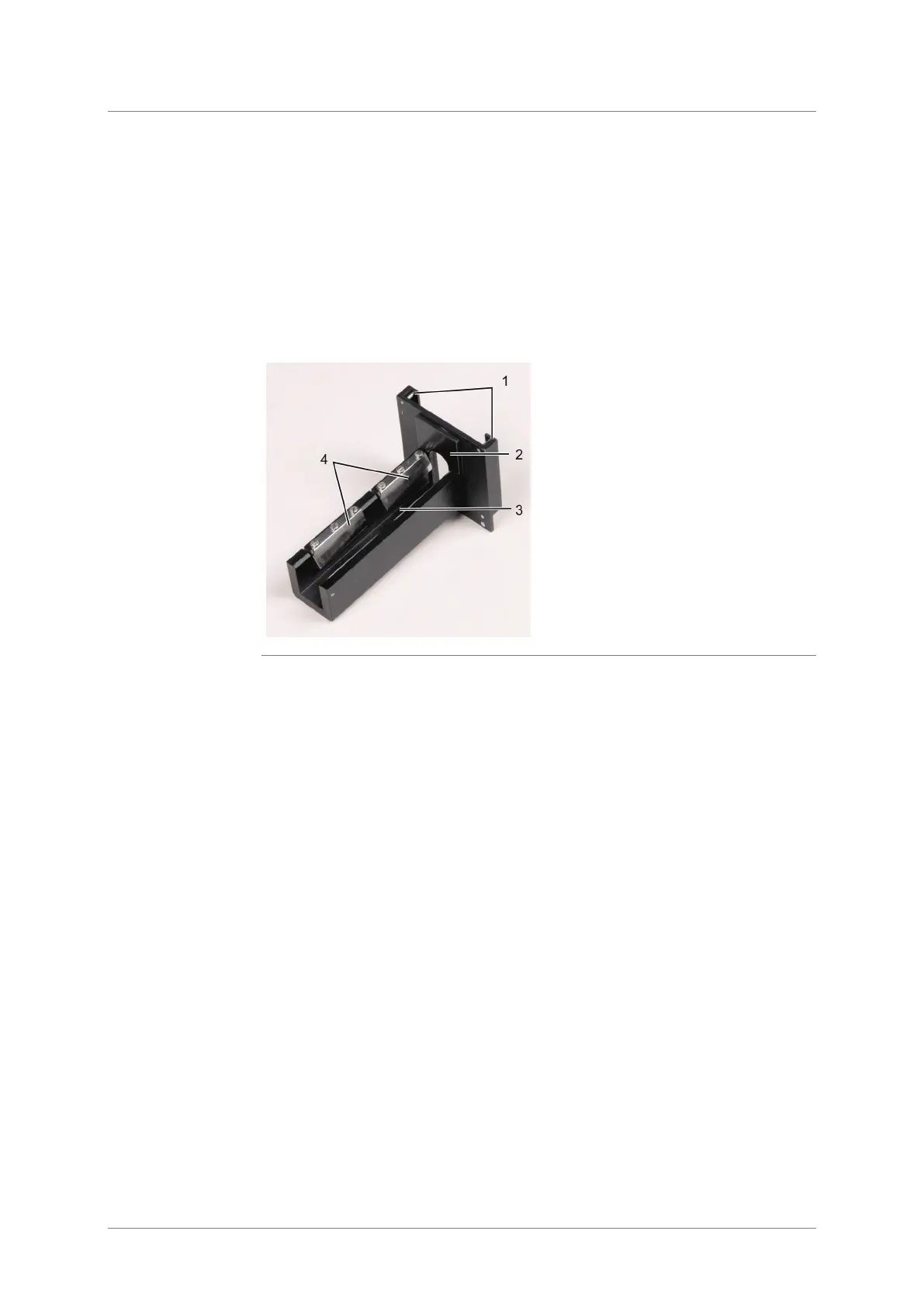

Fig. 3-1 Cell holder, 100 mm
Installing the cell holder in SPECORD
 Slide the cell holder with the guide from above onto the adapter plate of the
universal holder.
Inserting the cell correctly
1. Fill the cell with your sample at least 20 mm high.
2. Insert the cell tight against the contact surface of the cell holder. The optical
surfaces of the cell (bare surfaces) are vertical to the measuring or
reference channel and are radiated. (→ section "Standard cell holder, 50
mm" p. 10; "Inserting the cell correctly").
